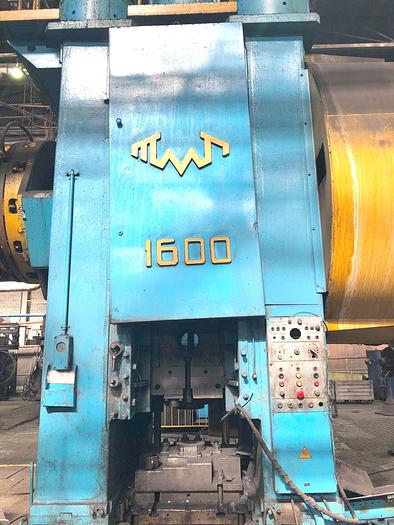

Press Hot Forging TMP Voronezh Russia KB8042

Capacity : 1600 tons,

Slide stoke : 300 mm,

Number of slide continuous stroke per minute : 75,

Minimum distance between bed and slide when in down position : 660 mm,

Adjustment stroke : 10 mm,

Slide dimensions :-

Left to right : 860 mm,

front to back : 910 mm,

Bed dimensions :-

left to right : 940 mm,

front to back : 1200 mm,

Height above bed level : 450 mm,

Slide knockout : force - 6,3 tf and stroke -50 mm,

Bed knock out : force - 10 tf and stroke : 50 mm,

Dimensions of openings in uprights :-

height : 560 mm,

width : 600 mm,

Distance clear between uprights : 1080 mm,

Overall dimensions :-

left to right : 5060 mm,

front to back : 3940 mm,

height above floor level : 5125 mm,

Drive motor power : 110 kW,

Weight of machine : 120 tons.
