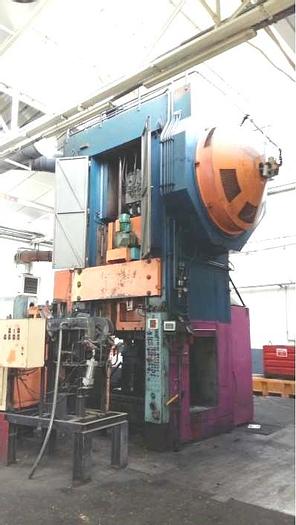

Press Hot Forging Bret

Capacity : 1250 tons,

Strokes in continuous per min. : 80 N°,

Stroke of the ram : 300 mm,

Shut height : 700 mm,

Ram dim : 1280 x 1200 mm,

Adjustment of the ram : 50 mm,

Die-holders dim :

Upper : 1250 x 700 x 170 mm,

bottom : 1300 x 700 x 190 mm,

Motor power : 110 kW,

Approx weight : 110 ton,

Overall dimensions

- Width : 4700 mm,

- Depth : 3500 mm,

- Height above floor level : 6500 mm.

Existing Electrical System

New Tie-RODS
