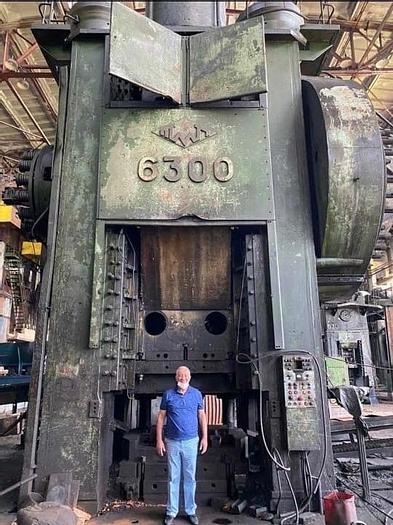

Press Hot Forging KB8548
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | KB8548 |
| Year | 1978 |
| Condition | Used |
| Stock Number | MA1165 |
| Item condition | Excellent working Condition |
| Capacity tons | 6300 |
Description
Capacity : 6300 tons,
Stroke : 460 mm,
Stroke per minutes : 40,
Number of single engagements min-1 : 12,
Main drive electric motor power : 320 kW,
The distance between the table and the slide base plate in its extreme position (adjustment down) : 1150 mm,
The value of adjusting the distance between the table and the slider : 10 mm,
Table dimensions, mm
Left-right : 1900 mm,
Front-back : 1950 mm,
The size of the RAM, mm
Left-right : 1900 mm,
Front-back : 1680 mm,
Upper ejector:
Stroke : 40…65 mm,
The effort, ts : 16
Lower ejector:
Stroke : 100 mm,
The effort, ts 30
Press dimensions, mm
Left-right : 7635 mm,
Front-back : 5760 mm,
Height above floor level : 9400 mm,
Weight : 561 tons,
Compressed air consumption per stroke of the RAM, dm3 : 115
Die Holder included.
