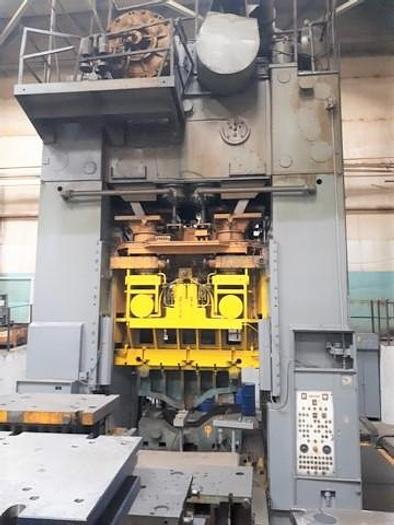

Press Sheet Stamping Mechanical PKnVTVI800.1TS

Capacity : 800 tons,

No. of strokes : 16 per min.,

Table size : 1700 x 2500 mm,

Slider size : 2800 x 1700 mm,

Aperture in table : 2400 x 1250 mm,

Maximal effort of pillow in table : 100 tf,

Size of pillow in table : 2380 x 1230 tf,

Width between supports : 2800 mm,

Slider stroke length : 500 mm,

Closer height : 1100 mm,

Height of movable table : 500 mm,

Weight of part table (under floor) without movable parts : 14 tons,

Weight of moving table with reductors part : 6 ton,

Weight pillow in table : 10 tons,

Total weight of table : 30 tons,

Weight of slider : 15 tons,

Weight of cheek (each) : 6.5 tons,

Weight of cross-arm without parts : 16 tons,

Weight of cross-arm without roller of flywheel, roller of muff, muff, brake : 25 tons,

Weight of roller of flywheel 3.5 ton,

Weight of roller of muff + muff + brake 16 tons,

Total weight of cross arm : 44.5 tons,

Total weight of press : 120 tons.
