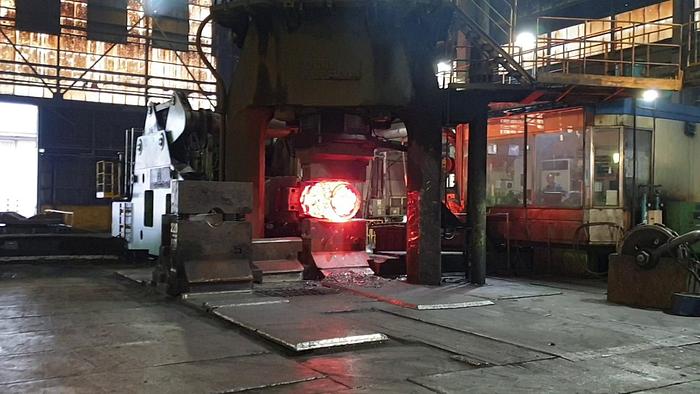

Press Forging Open Die Hydraulic SMS Hasenclever

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSMS Hasenclever
Year1991
ConditionUsed
Stock NumberMA1624
Item conditionGood condition
Capacity tons2500

Description

Capacity : 2500 tons,

Normal pressure force : 25 MN 450 BAR,

Pull back force : 35 MN 320 BAR,

Top die stroke : 1300 mm,

Day light : 3000 mm,

Clear width : 2140 mm,

Clear width cross : 1150 mm,

Overall hieght above floor : 9600 mm

Overall depth below floor : 2030 mm,

Advance speed : 250 mm/s,

Pull back speed : 250 mm/s,

Max. pressing speed : 110 mm/s,

Die shifting stroke : 3240 mm,

Die magzine : 2260 mm,

Ram die : 850 mm.


With Rail Bound Manipulator

Make Dango,

Model : SSM600,

Capacity : 30 ton

Carrying capacity : 300/360 kN,

Wad moment : 600/900 kNm,

Main pump motor : 2x152 kW,

Operation  pressure max. : 200 BAR

Circulation pressure : Approx. 21 BAR
