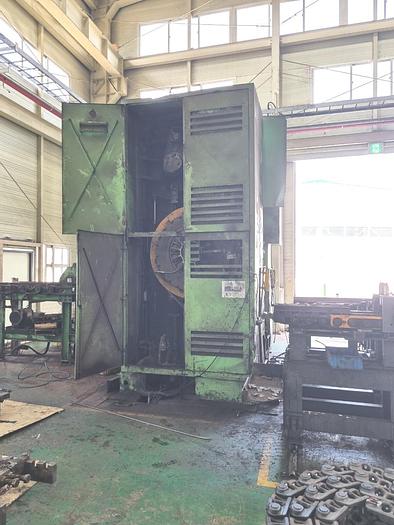

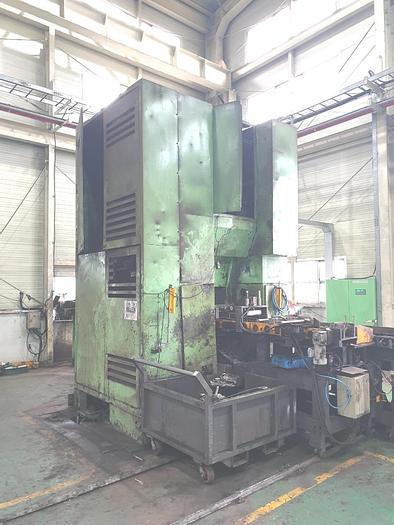

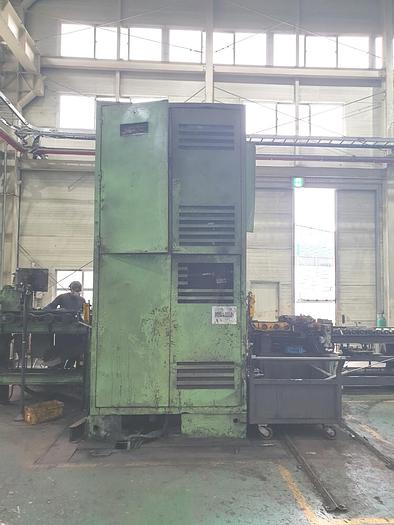

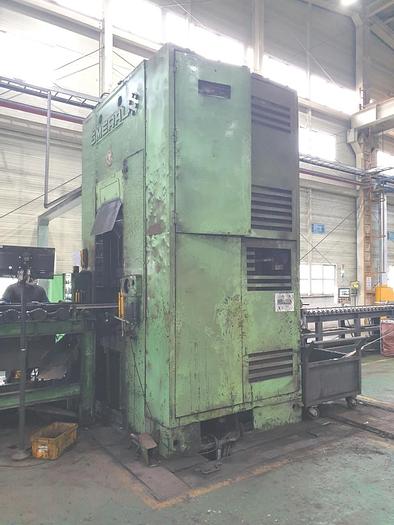

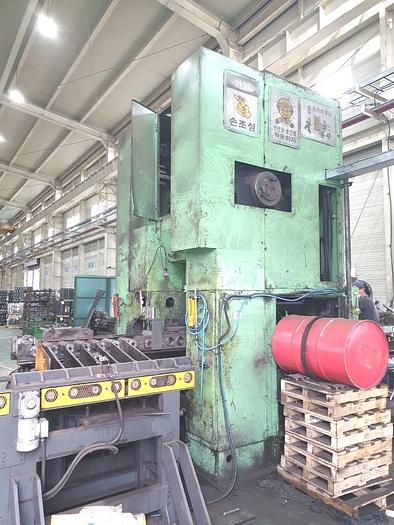

Press Knuckle Joint Coining LLR1000

Capacity : 1000 tons,

Effective stroke at nominal force : 3 mm,

Ram stroke : 140 mm,

Ram adjustment : 15 mm,

Shut height : 630 mm,

Width between uprights under guide ways : 900 mm,

Ram size: 920 x 950 mm,

Table size: 910 x 950 mm,

Number of ram strokes during continuous run : 36/1 min,

Number of useful strokes : 20/1 min,

Upper ejector-ejecting force : 100 kN,

Upper ejector-stroke : 30 mm,

Lower ejector-ejecting force : 200 kN,

Lower ejector-stroke : 60 mm,

Electric motor output : 37 kW,

Dimensions of the press :

-Width : 2670 mm,

-Length : 2200 mm,

-Height : 4115 mm,

-Height above floor : 3815 mm,

Press weight : 35 tons.

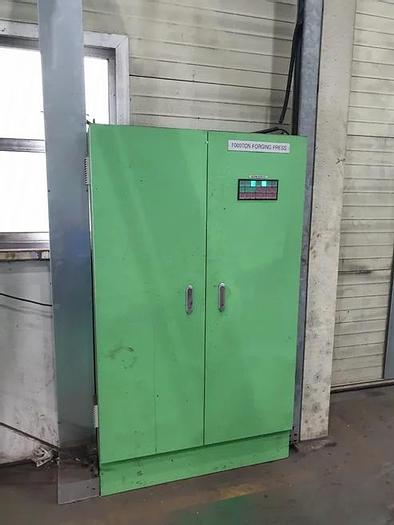

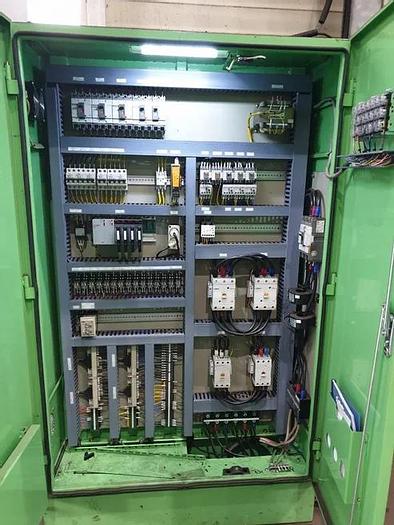

Electric panel was replaced with new in 2019.
