Press Die Spotting Hydraulic React Tool & Mold (RTC)

Sold

Specifications

ManufacturerReact Tool & Mold (RTC)
Year1992
ConditionUsed
Stock NumberMA1680
Item conditionGood condition
Capacity tons150

Description

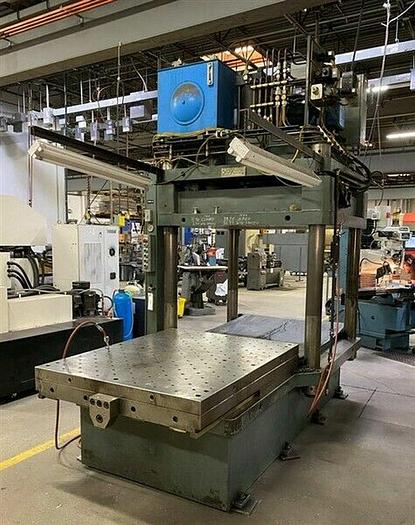

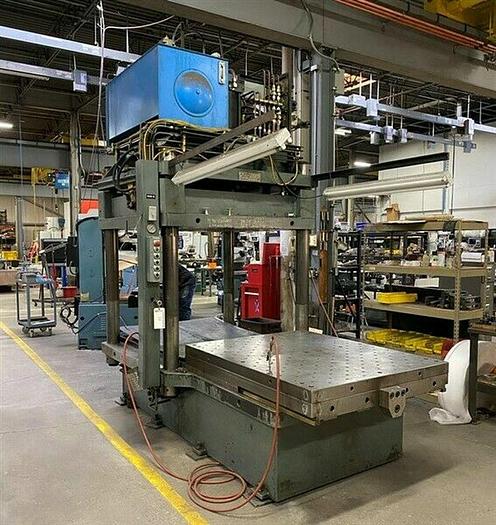

Dual-Cylinder Hydraulic Traveling-Table Die Spotting Press

Catalog Specifications:

Capacity : 150 tons,

Stroke Length, Maximum : 707 mm,

Daylight Open, w/Spacer : 932 mm,

Daylight Open, w/o Spacer : 1009 mm,

Daylight Closed, w/Spacer : 226 mm,

Daylight Closed, w/o Spacer

Bed Area (L-R x F-B) : 1219 x 1524 mm,

Overall Height : 3200 mm,

Horsepower : 25 HP/1760 RPM,

Electrical Requirements : 208-230/460/3/60.


EQUIPPED WITH:

Push Button Controls

Lower Platen Sliding Bed w/(3") Spacer

Farver Gauging (Bar & PSI)

25 HP Eberle Hydraulic Motor w/Rexroth Valve

Floor Standing Design
