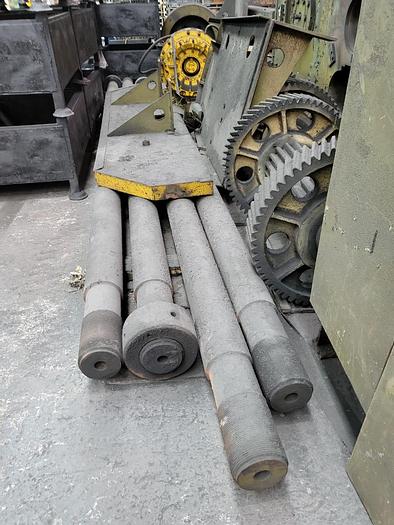

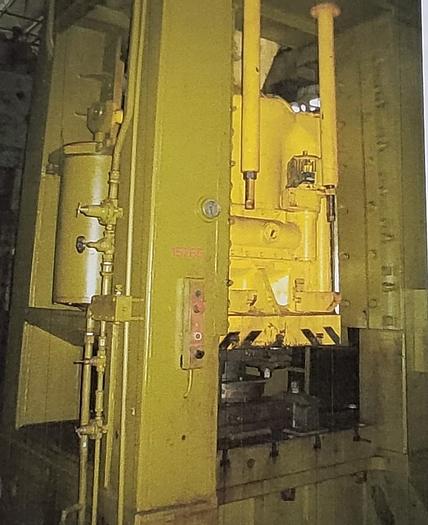

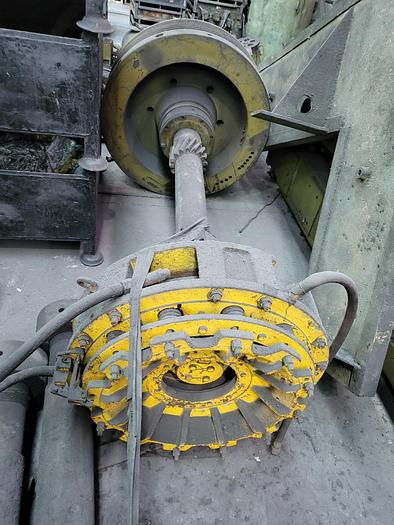

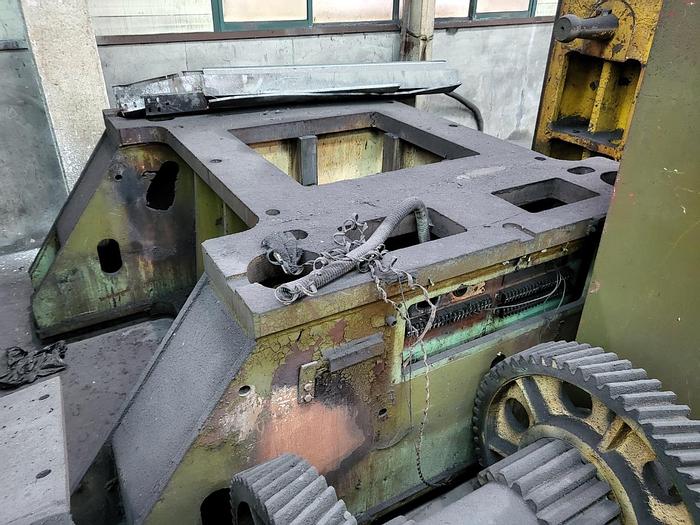

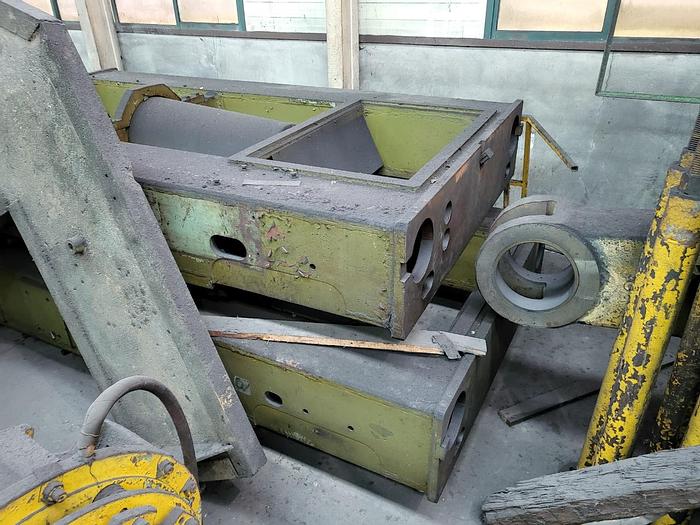

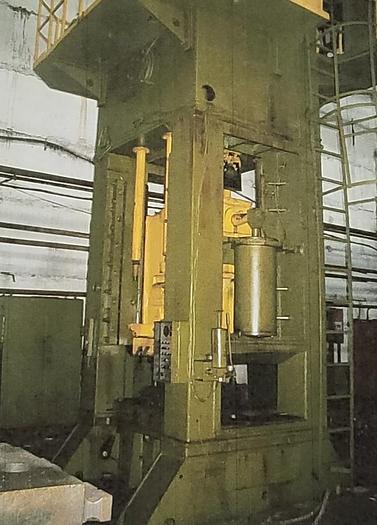

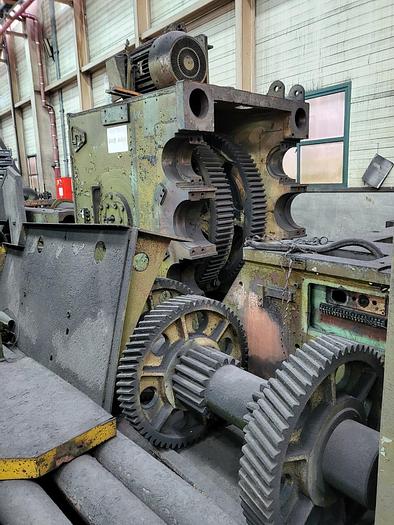

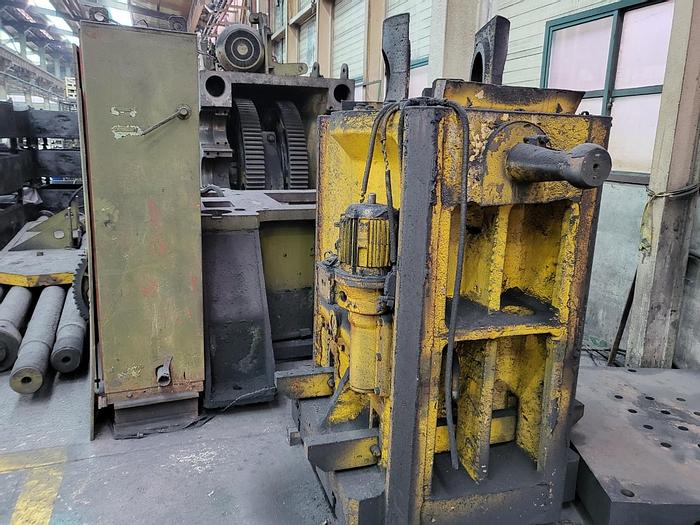

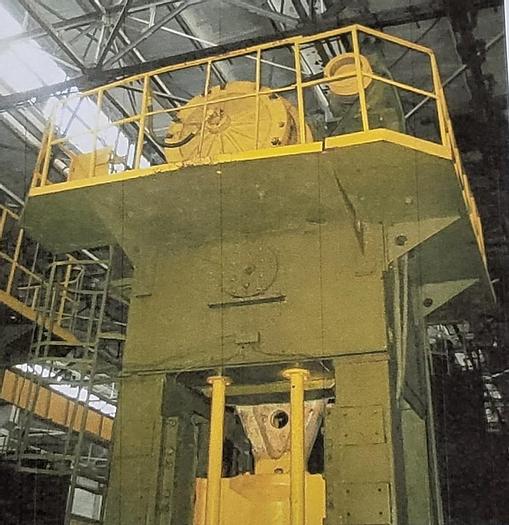

Press Trimming K9538

Capacity : 630 tons,

Slider stroke : 400 mm,

Slider strokes per minutes : 25 spm,

Shut height : 570 mm,

Stroke path till its position where it develops nominal capacity : 9,5 mm,

Table size : 1250 x 1250 mm,

Table gap size : 800 x 800 mm,

Slider size : 1000 x 1000 mm,

Distance adjustment between table and slider : 180 mm,

Bolster plate thickness : 180 mm,

Window size : 750 x 400 mm,

Ram load : 2 ton,

Voltage : 340 V,

Machine dimensions : 3650 x 3680 x 6370 mm

Main motor power : 56 KW,

Machine weight :57.5 tons.
