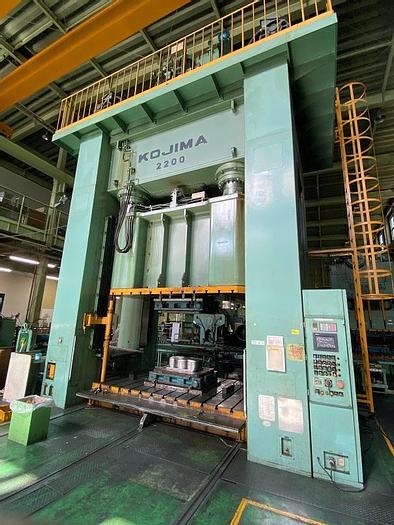

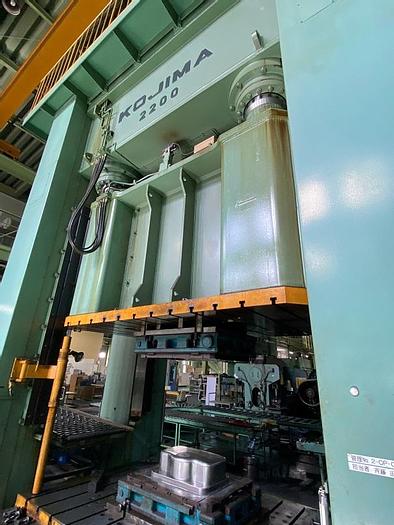

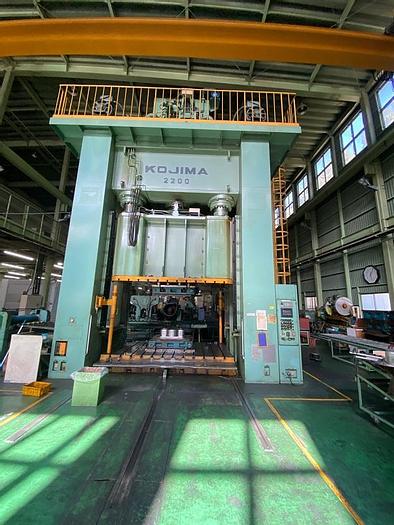

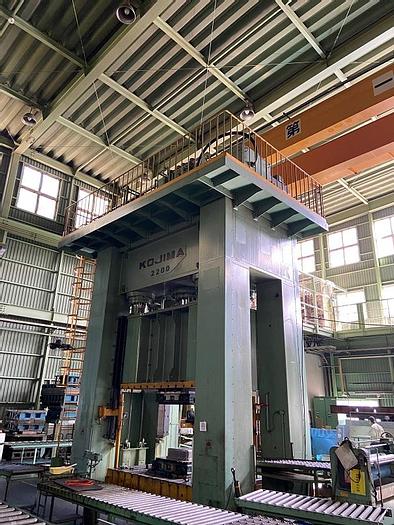

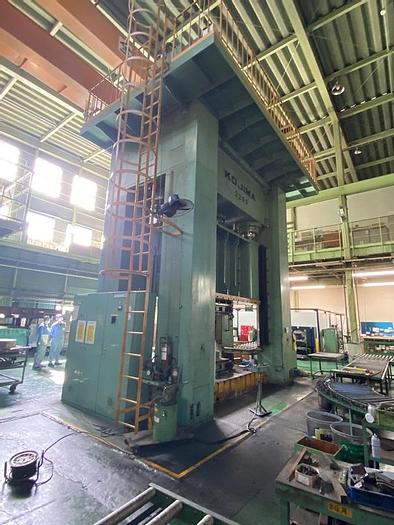

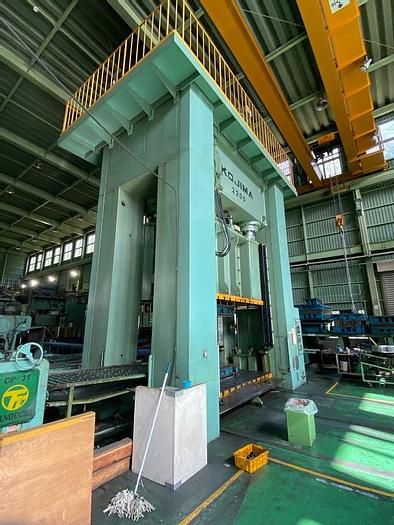

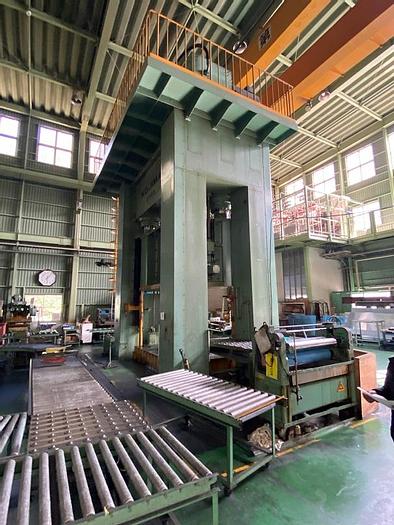

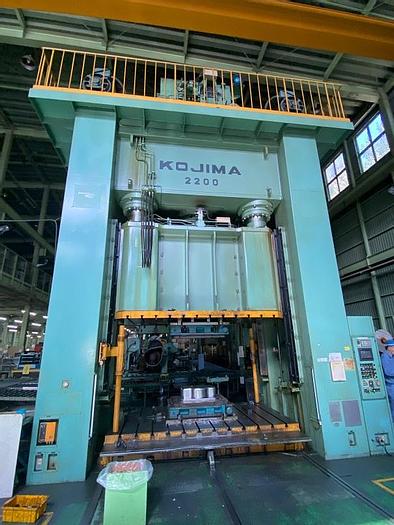

Press Sheet Stamping Hydraulic Kojima

Capacity : 2200 tons,

Stroke : 1200 mm,

Daylight : 1800 mm,

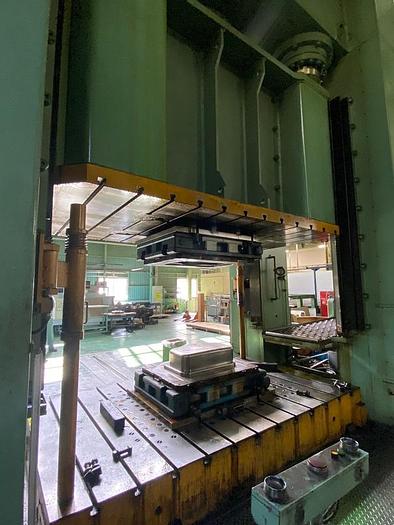

Slide : 3200 x 1800 mm,

Moving Bolster : 3200 x 1900 mm,

Moving Bolster Stroke : 2500 mm,

Moving Bolster Speed : 100 mm/sec,

Die Cushion : 100 - 500 ton

Cushion Stroke : 450 mm,

Cushion Pad : 2000 x 1275 mm,

Cushion Pin : 50 mm dia,

Slide descending speed : 235 mm/sec,

Hydraulic Tank : 3200 litre.

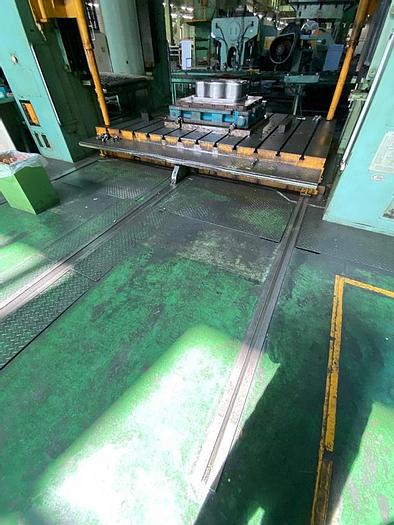

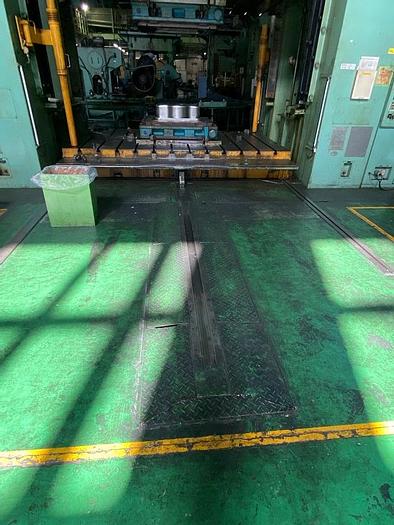

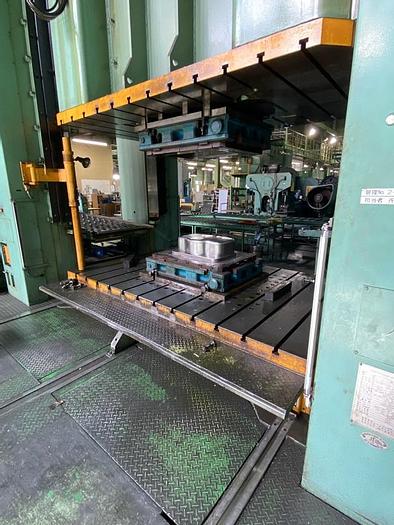

The press has a die cushion and a front moving bolster.
