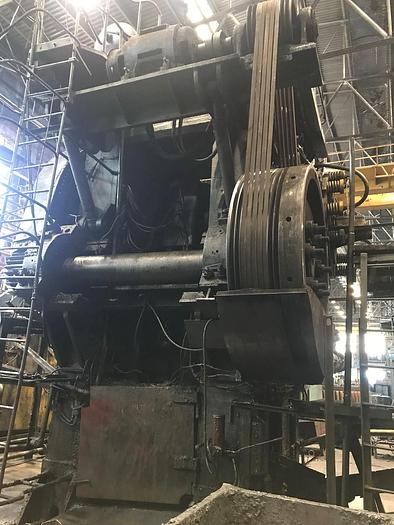

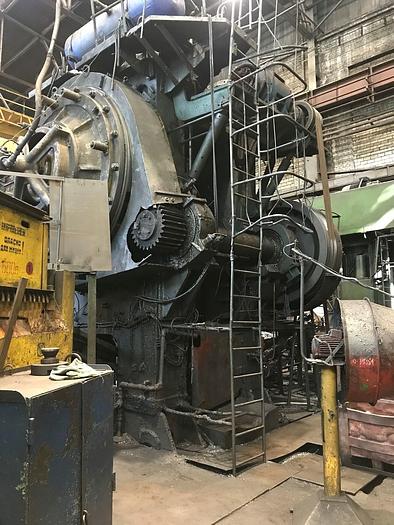

Press Hot Forging K8544

Direct drive

Capacity : 2500 tons,

Ram Stroke : 350 mm,

Stroke per minutes : 60,

Shut height (ram down, table up) : 890 mm,

Table adjustment : 10 mm,

Distance between press columns : 1,320 mm,

Table dimensions (FB x LR) : 1,400 x 1,200 mm,

Ram dimensions (FB x LR) : 1,120 x 1,070 mm,

Mechanical upper ejector stroke : 0-60 mm,

Pneumatic lower ejector force : 10 ton,

Pneumatic lower ejector stroke : 70 mm,

Press layout dimensions (FB x LR) : 4,680 x 5,350 mm,

Height above floor level : 6,400 (21 feet) mm,

Main motor power x rpm : 132 x 970 kW,

Press  weight : 190 tons.

The main motor is absent, an original backshaft is broken. We will supply a billet for new backshaft
