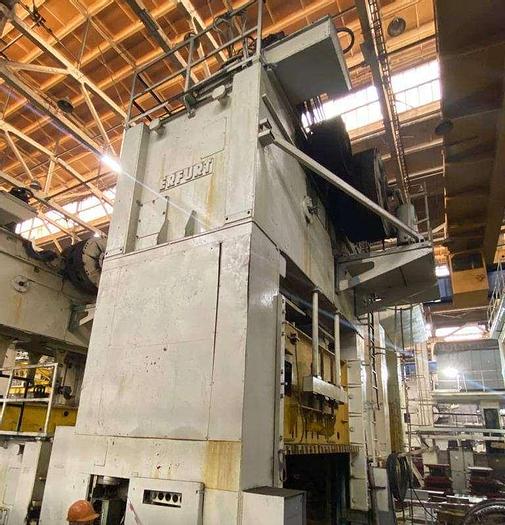

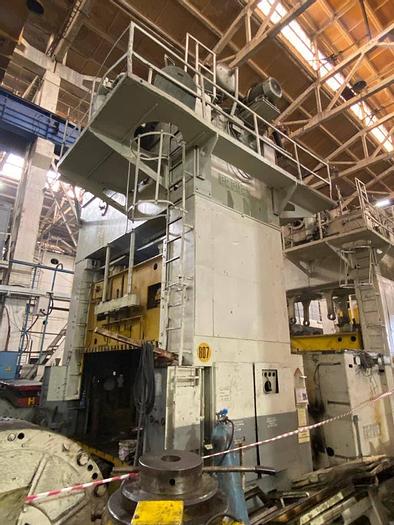

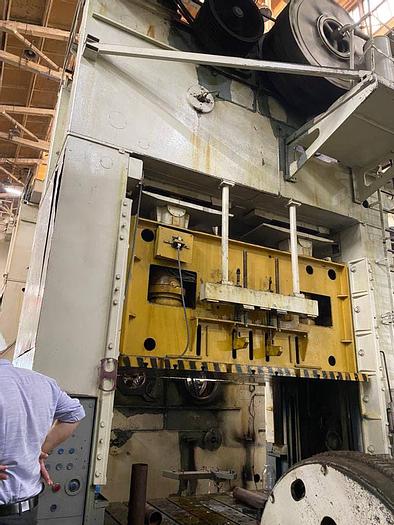

Press Sheet Stamping Mechanical PKZVIII500

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerWMW Erfurt,Germany
ModelPKZVIII500
ConditionUsed
Stock NumberMA1732
Capacity tons500
Item conditionGood working condition, full complete

Description

Max. pressing force of slide (at 12,5 mm distance to the lower dead point) : 500 tons,

Max. pressing force of slide (at 200 mm distance to the lower dead point) : 160 ton,

Number of single strokes at continuous work per minute : 20,

Distance between side columns : 2800 mm,

Slide stroke : 500 mm,

Slide adjustment : 500 mm,

Max. extract depth : 200 mm,

Max. shut height between bolster plate and slide (stroke down, adjustment up) : 1200 mm,

Height of pull-out table : 500 mm,

Bed area (width x depth) : 3150×2100 mm,

Slide area (width x depth) : 3150×2100 mm,

Opening in the bed (width x depth) : 2500×1600 mm,

Main motor power : 75 kW,

Number of no-load strokes per minute : 20,

Cushion force in the bolster : 100 tons,

Cushion stroke : 200 mm,

Cushion plate dimensions : 2480×1580 mm,

Height above floor : 7200 mm.
