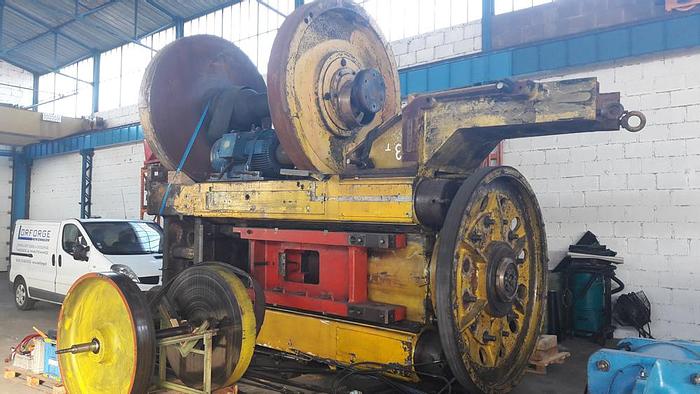

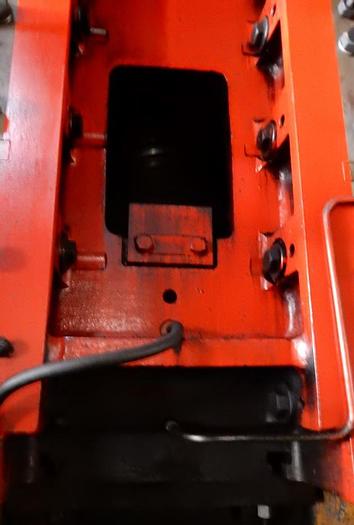

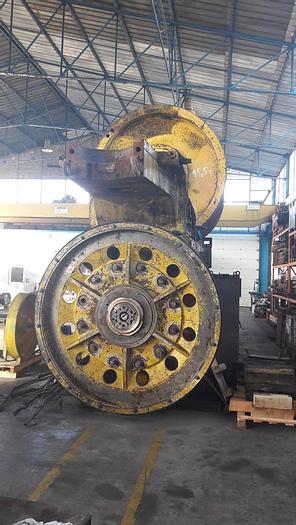

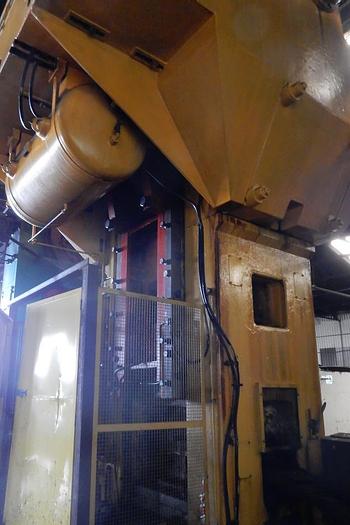

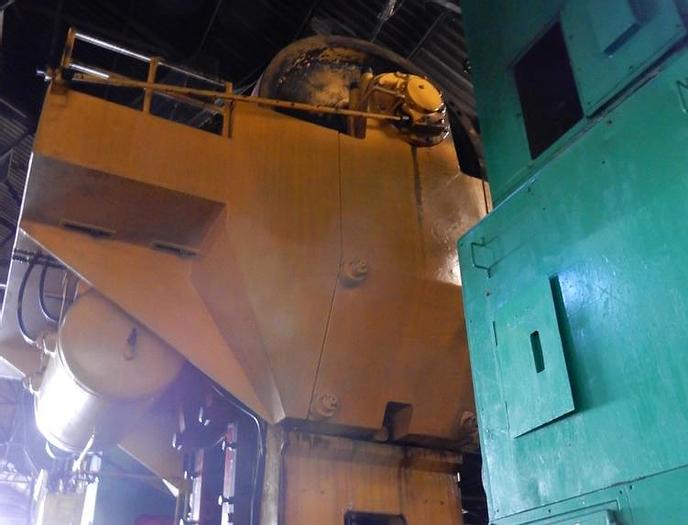

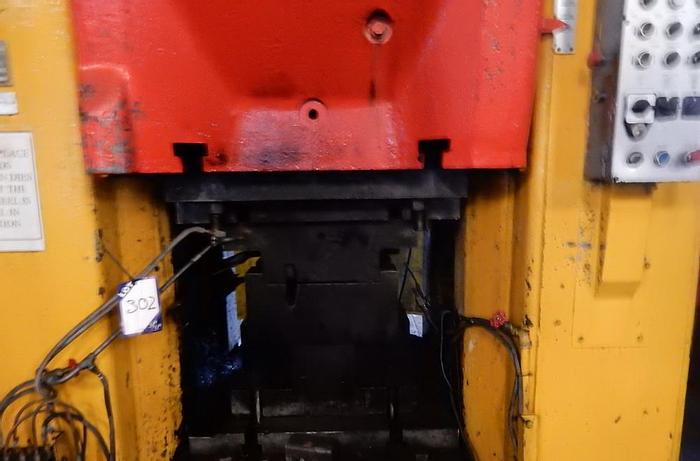

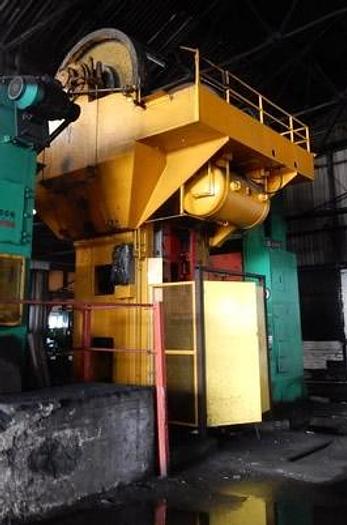

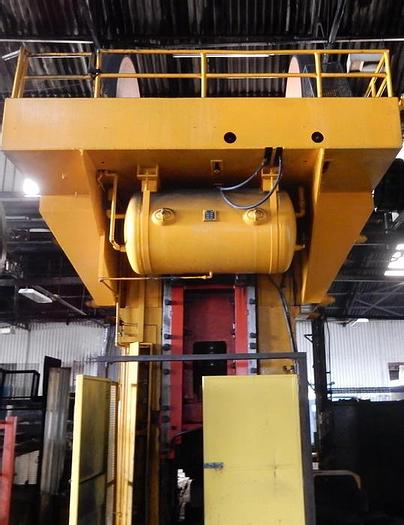

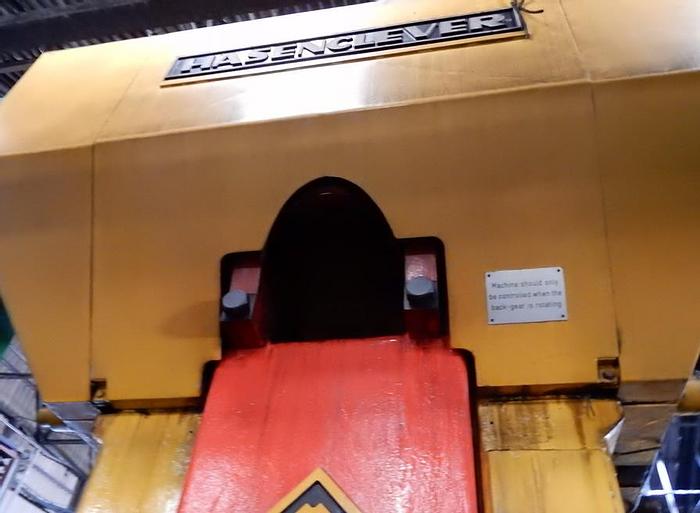

Press Friction Screw FPRN400/950/800/1600

Very strong built, and efficient press

Nominal capacity : 1600 tons,

Permissible capacity in : 2500 tons,

Screw diameter : 400 mm,

Stroke : 600 mm,

Continuous operation

Idling strike capacity : 3150 tons,

Raw power: 28 mmp

Forming power at nominal : 19 mmp,

Table area : 900 x 1250 mm,

Ram area : 900 x 1250 mm,

Minimum daylight (Ram down) : 1000 mm,

Maximum daylight (Ram up) : 1600 mm,

Distance between upright : 950 mm,

Heroical stroking rate : 18 cps/mn,

Usable stroking rate : 12 cps/mn,

Motor : 120 kw,

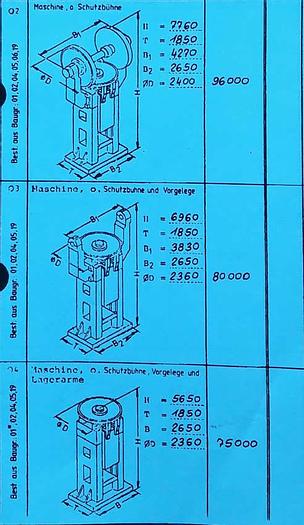

Dimensions :

Width : 4270 mm,

Height : 7760 mm,

Weight : 96 tons.
