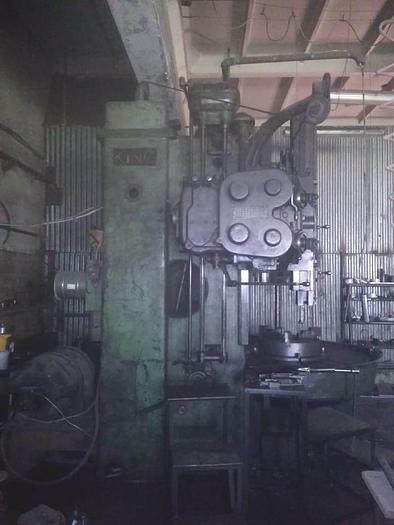

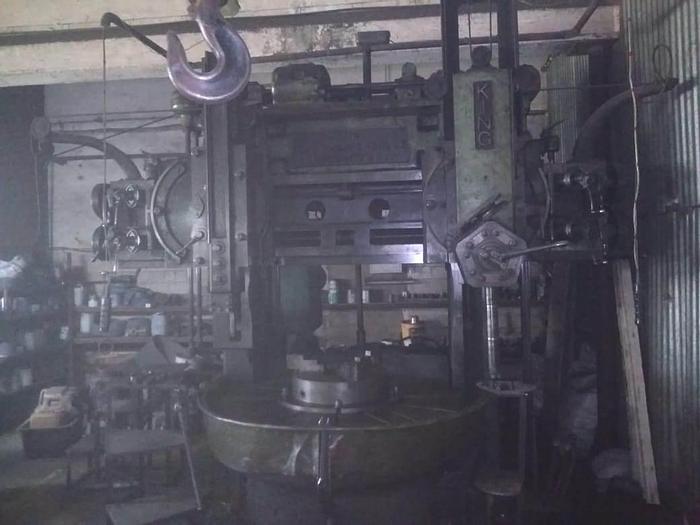

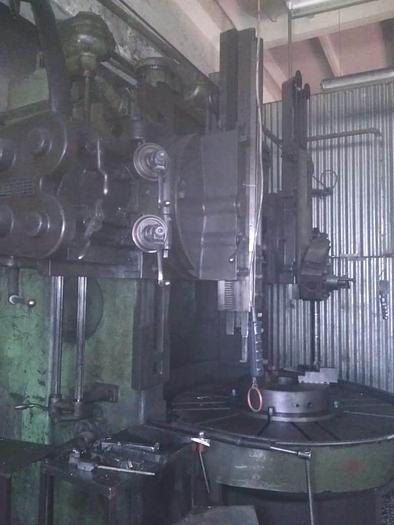

Lathe Vertical Turning 72

Table dia : 1800 mm, (4 sliding jaws)

Maximum swing : 2000 mm,

Maximum under rail 1600 mm,

Table speeds (16) 1.3 to 45 rpm,

Feeds (24) .003 to .500 IPR,

Rapid traverse : 10 FPM,

Vertical travel of ram heads : 1350 mm,

Maximum height under ram head : 1536 mm,

Ram heads swivel, (left or right) 60 degree

Minimum center distance between heads : 530 mm,

Motor : 30 HP.
