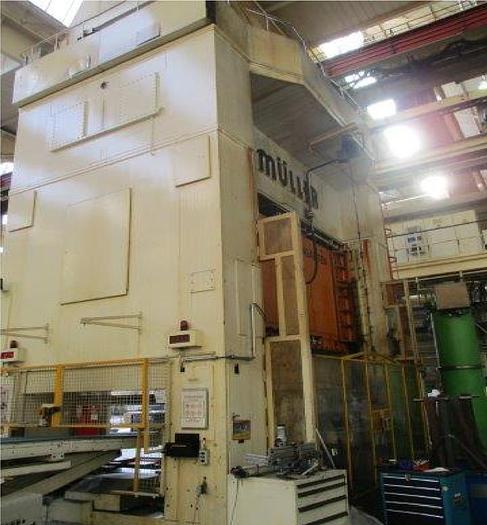

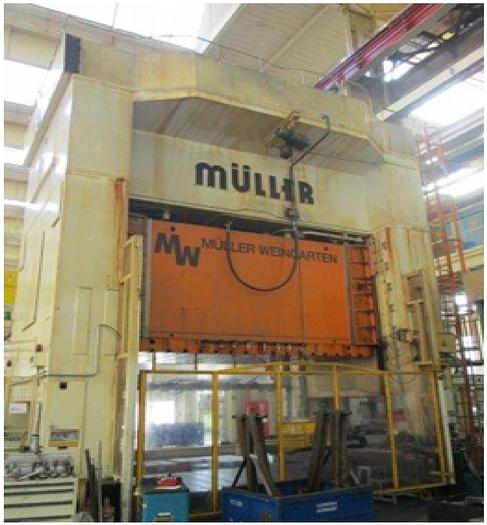

Press Sheet Stamping Hydraulic ZE 2000-45/22.1.1

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerMuller Weingarten
ModelZE 2000-45/22.1.1
Year1970
ConditionUsed
Stock NumberMA1749
Item conditionVery good condition
Capacity tons2000

Description

Capacity : 2000 Metric tons,

Bed : 4500 x 2150 mm,

Stroke : 1219.5 mm,

Daylight: 2349.5 mm,

Stroke per minutes : 8-16 spm (could possibly increase to 18 spm),

Speed:

• Rapid stroke (down) : 560 mm/sec,

• Working : 80 mm/sec,

• Rapid stroke (up) : 600 mm/sec,

Windows : 2311.4 mm wide,

Equipped With:

Cushions in slide : (100 ton, 152.4 mm stroke)

Cushions in bed : (300 ton, 304.8 mm,stroke)

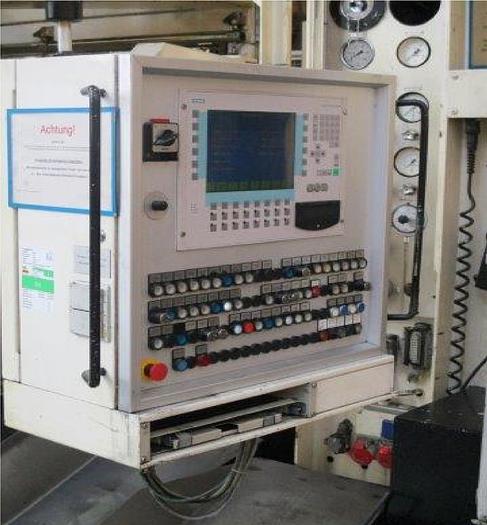

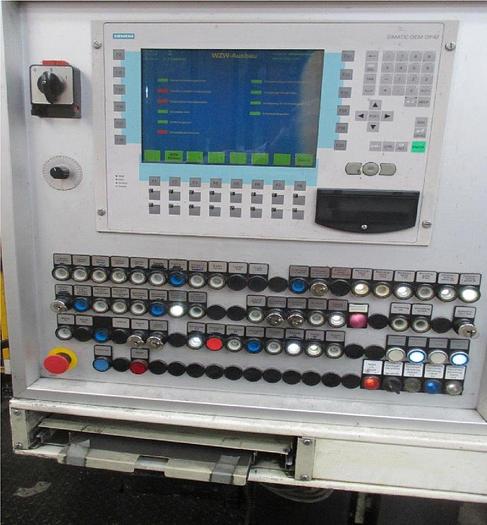

Siemens Control,

Die Change Cart,

Installation of rebuilt slide assembly (2010),

Full hydraulic recondition and new cylinder installed (2007),
