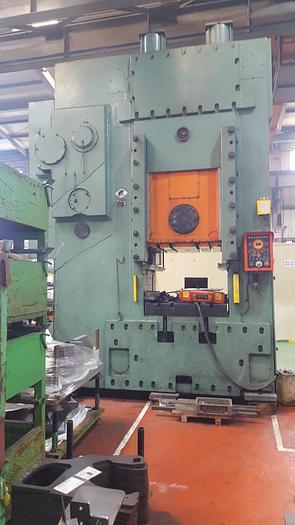

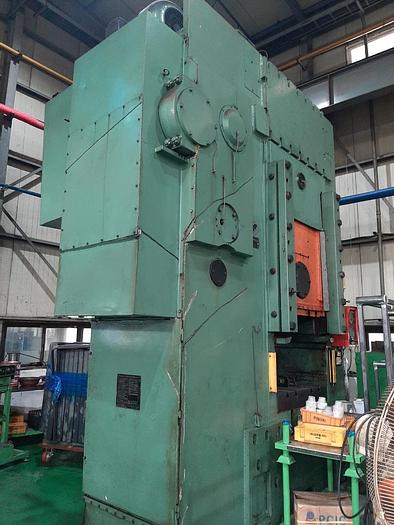

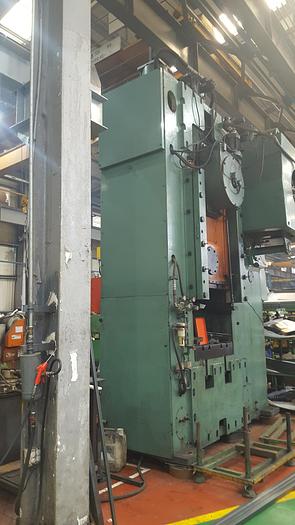

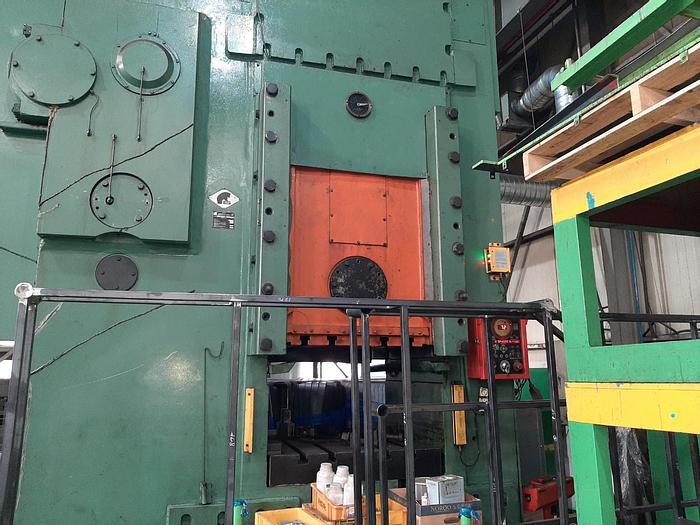

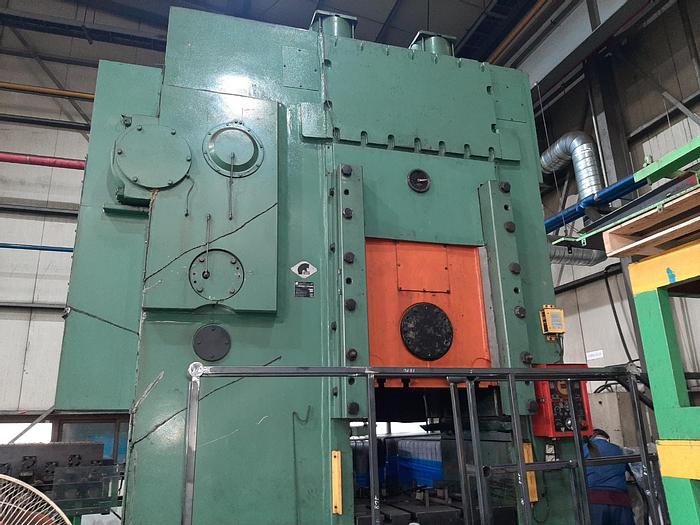

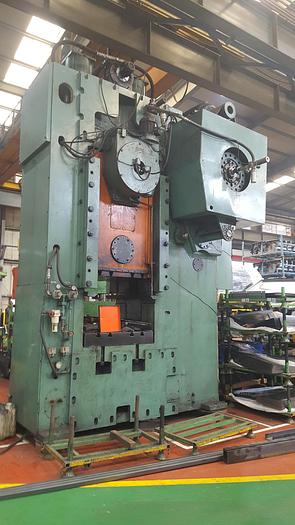

Press Knuckle Joint Coining KB8342

Capacity : 1600 tons,

Ram stroke : 180 mm,

Stroke per minutes: 25

Shut height : 510 mm,

Bolster plate to Ram Adjustment stroke : 16 mm

Bed dimensions : 1000 x 1000 mm,

Slide dimensions : 860 x 900 mm,

Bolster plate thickness : 160 mm,

Lower knockout : Stroke : 110 mm,

Force : 500 kN,

Upper knockout : Stroke : 16 mm,

Force : 160 kN,

Main motor : 60 kW,

Overall dimensions : 3480 x 2600 x 4110 mm,

Weight : 45 tons.
