2500 tons Press Forging Open Die Hydraulic JSW

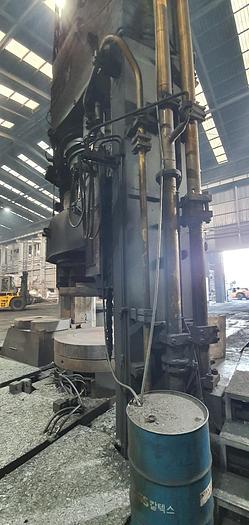

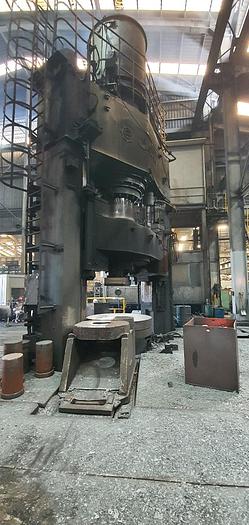

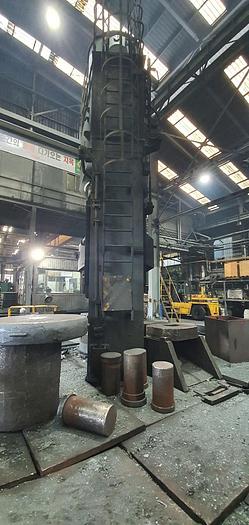

Used JSW 2500Ton Free Forging Press + Used 15T Forklift Manipulator

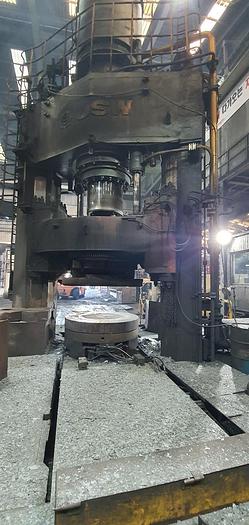

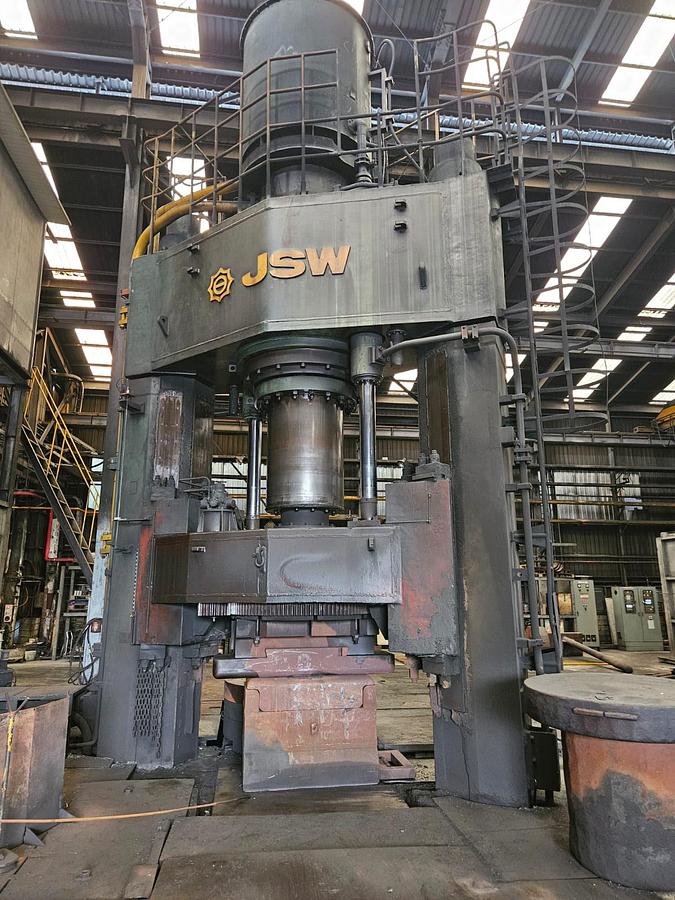

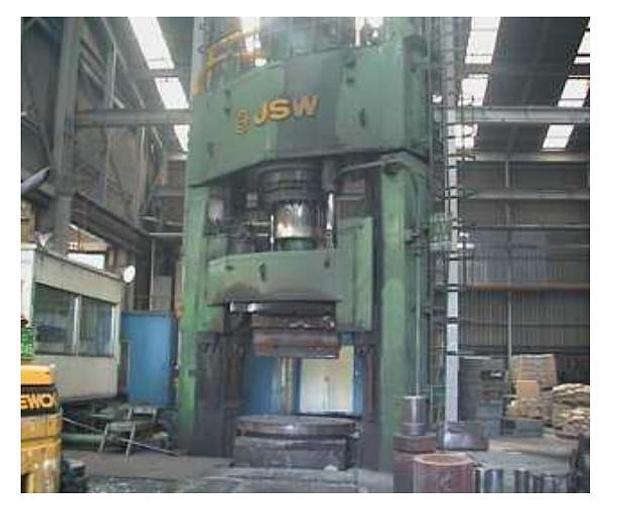

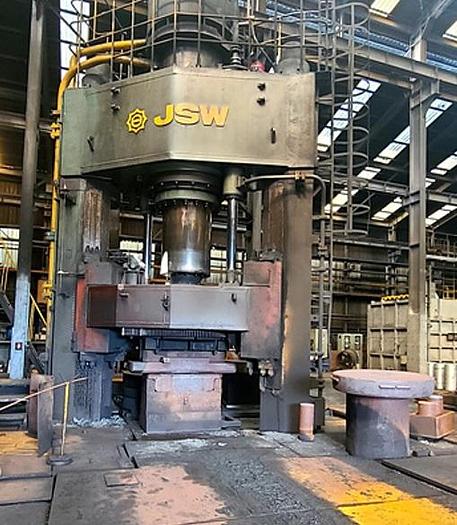

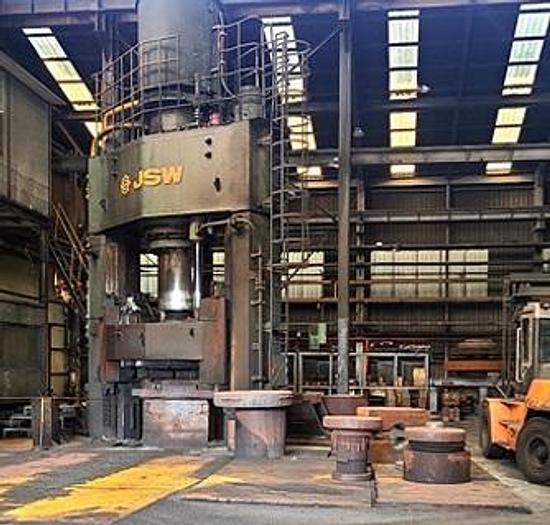

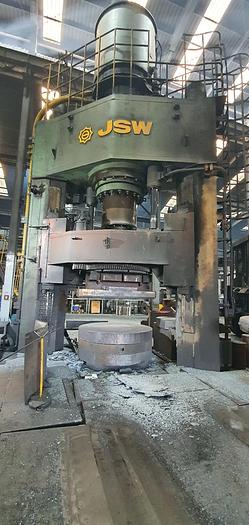

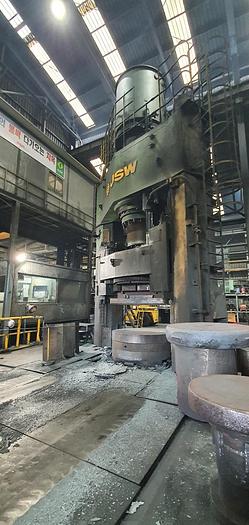

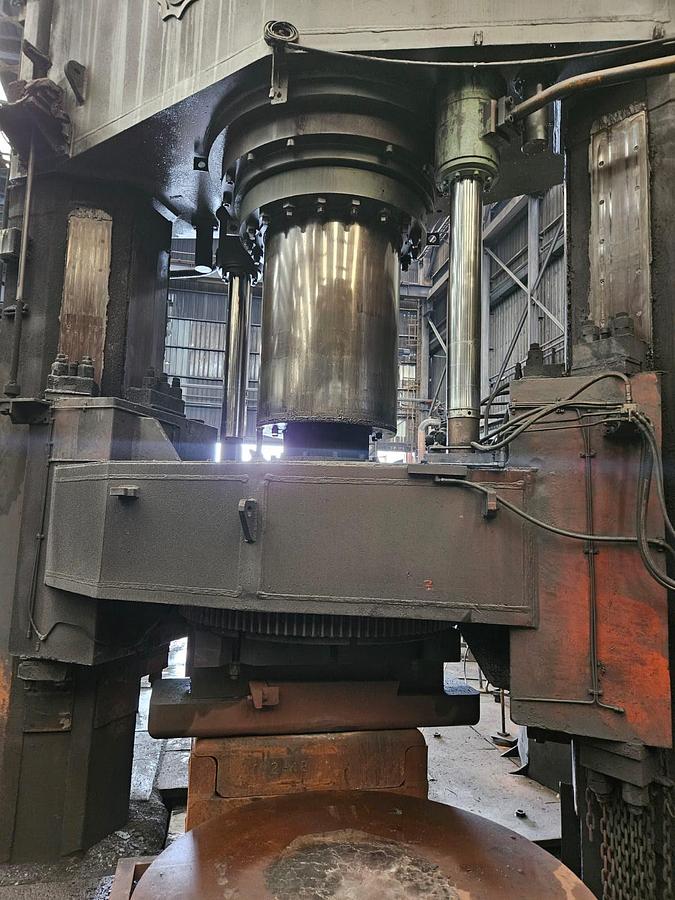

JSW 2500 Ton Two Columns Push Down Free forging hydraulic Press with the existed die set

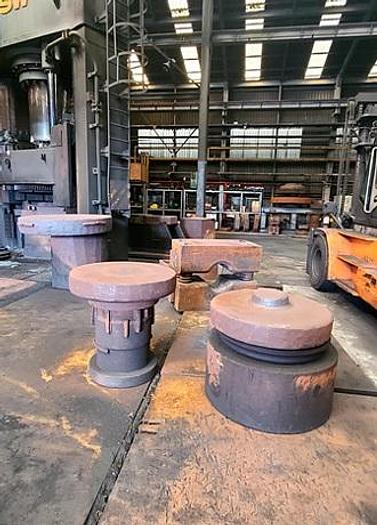

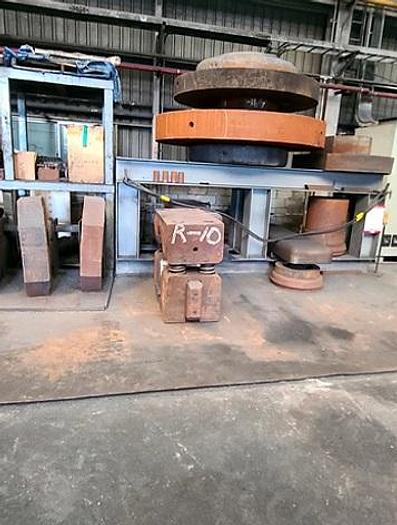

(Turn Table - 3 sets and Flat Die - 2 sets), Full retrofitted by Korean specialists in 1999.

Capacity : 2500 tons (300kg/cm²),

Upsetting force at static working pressure of 234 bar : 25 MN,

Stroke : 1000 mm,

Press daylight : 2489 mm,

Distance between side flame : 1549 mm,

Number of pull back cylinder : 1,

Allowable Eccentric load at 25MN : 200 mm radius,

Forging tolerance measure on hot workpiece : ±1 mm,

Die table area (Width x length x stroke) : 1400 x 3365 x 1500 mm,

Press speeds

-. Forging & upsetting at 25MN : 58 mm/sec,

-. Advance speed, Fast/Slow : 250/10 (mm/sec),

-. Die table slide forward, Fast/Slow : 250/5 (mm/sec),

Press forces

-. Forging & upsetting at 234 bar : 25 MN (2500 tons),

-. Return at 234 bar : 3.5 MN (350 tons),

-. Table shift at 234 bar (forward) : 0.6 MN (60 tons),

-. Table shift at 234 bar (back) : 0.4 MN (40 tons),

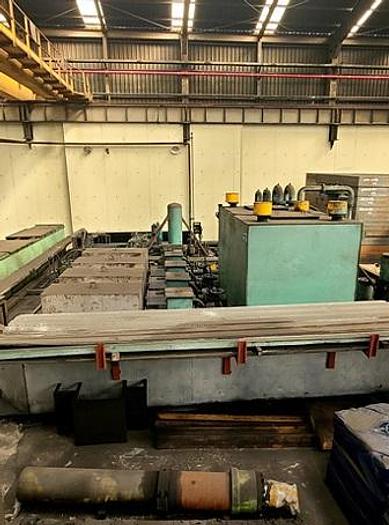

Hydraulic pumps (main)

-. Type : Axial piston pump,

-. Quantity : 4 sets,

-. Pressure rate : 400 bar,

-. Working pressure : 350 bar,

-. Model : Rexroth (A2F500), (A2F125),

-. Total flow : 2500 ℓ/min (315 bar),

Electric main motors : 4 sets, 300 KW, 6P, 3300 volt, 60 Hz

IP54, F class, Single end shaft

Total electric power supply

-. 4sets Main motors : 1200 KW, 3300 volt, 1150 rpm

-. 1sets Main motors : 110KW, 3300 volt, 1150 rpm

-. 1sets pilot motors : 37 KW, 440 volt, 1150 rpm

-. 1sets cooling and filtering motors : 30 KW, 440 volt, 1150 rpm

-. Total power supply : 1377 KW,

Build in 1987 (Retrofit in 2001).

Cylinder bushing, packing and piping replacement

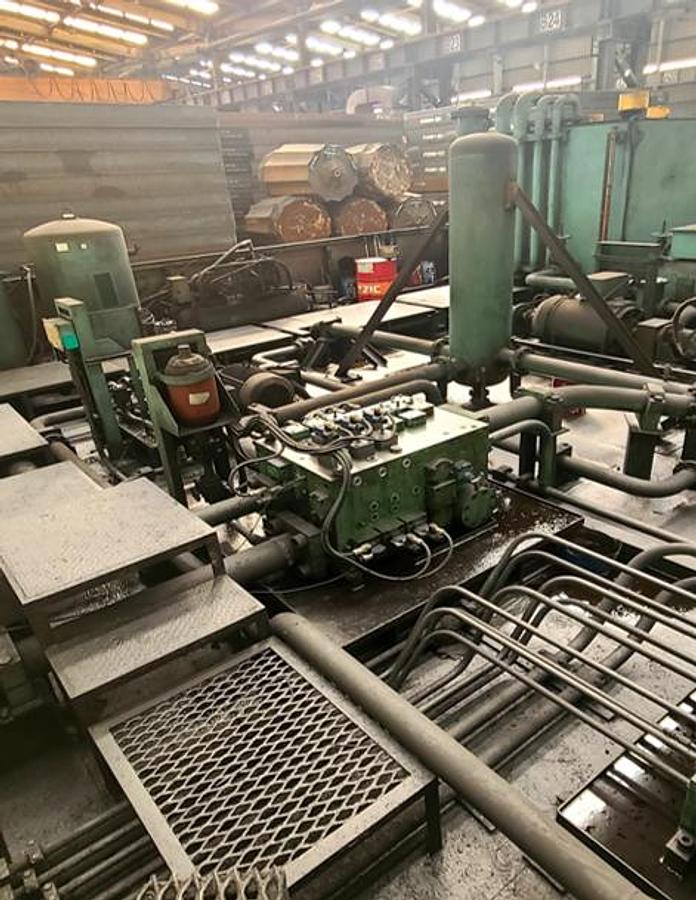

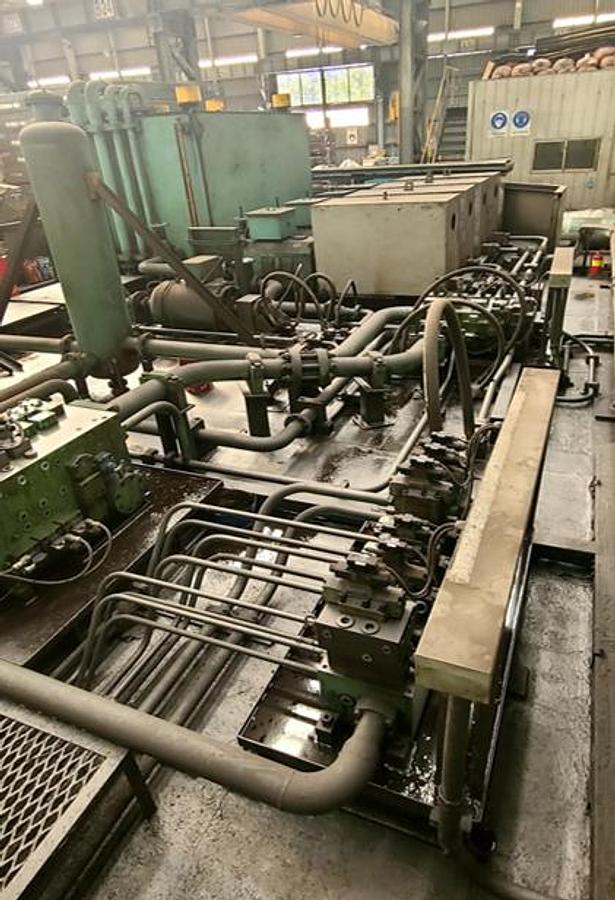

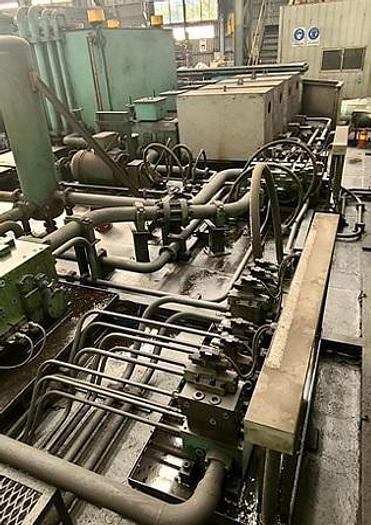

Hydraulics: Rexroth system

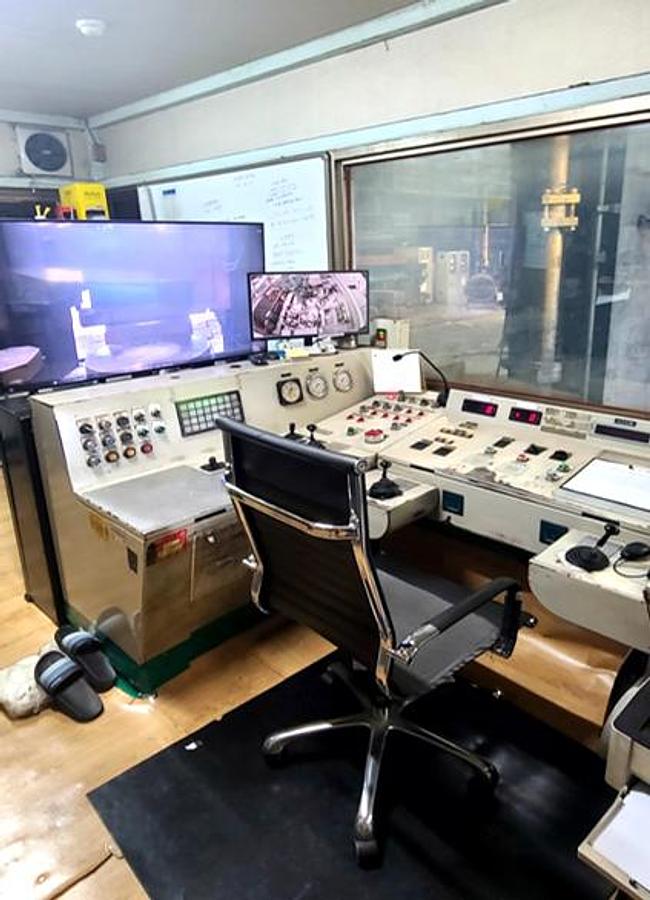

Electrical: Mitsubishi A series PLC, wiring batch replacement.

Manual 7 drawings : Partially available.

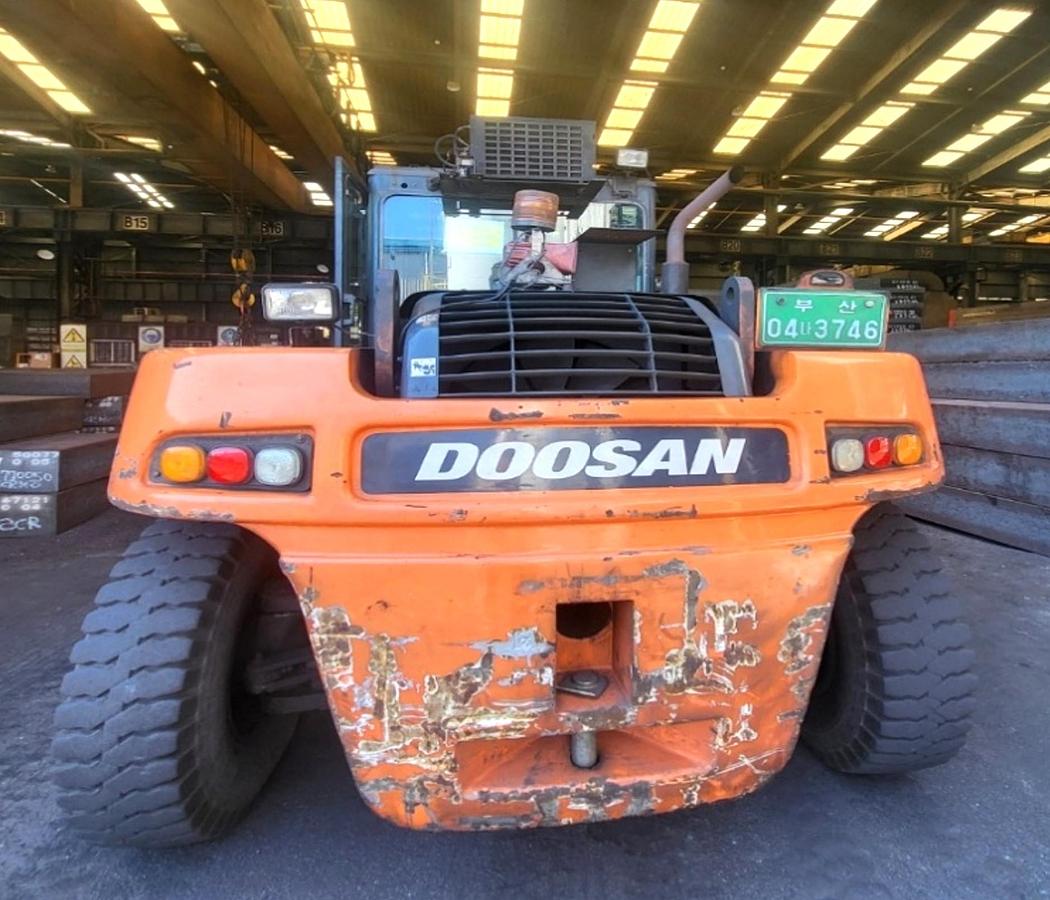

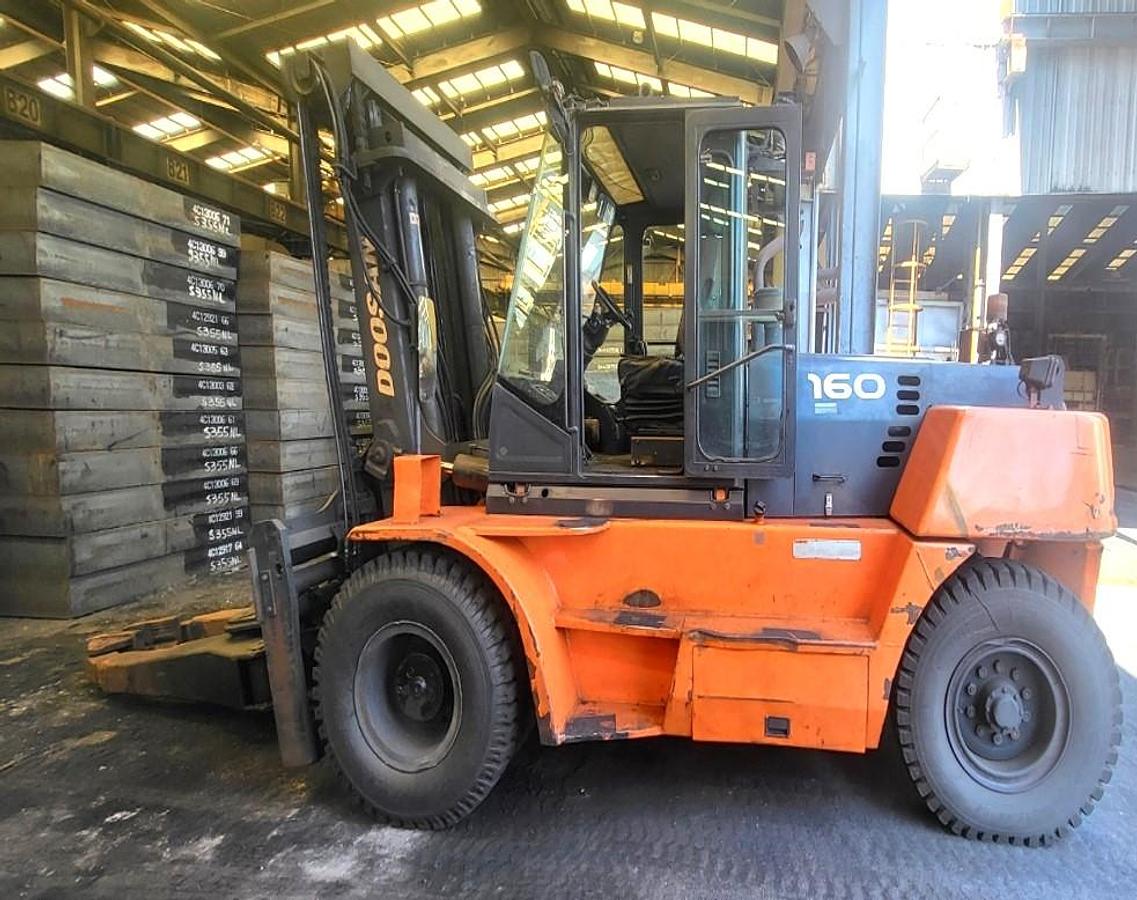

Used Doosan or Daewoo 16 (15) Ton Forklift Type Manipulator (actual Loading capacity : 5 Ton)

new : 2007

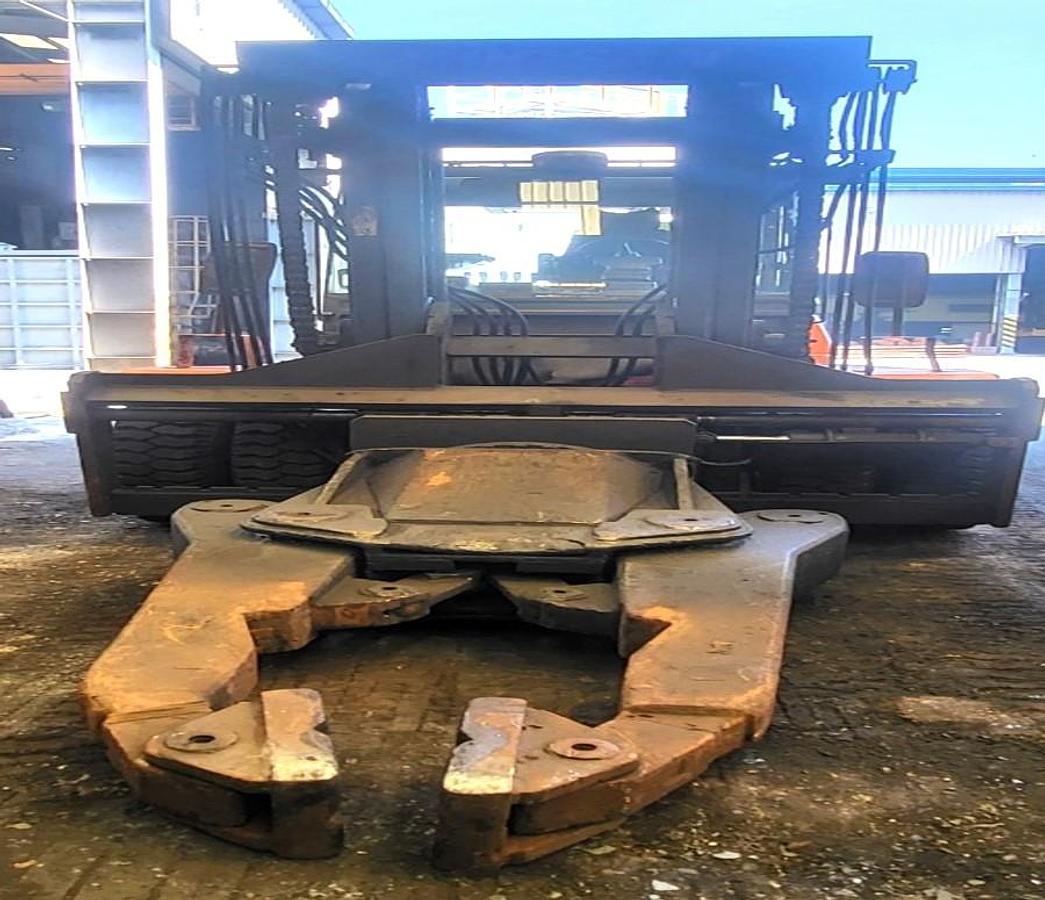

Forklift Type Manipulator

Model D160S-5

1. License Plate Number: 부산04나3746

2. Capacity: 16 tons,

3. Chassis Serial Number : D160-00197,

4. Main Specifications

a) Length : 606500 mm,

b) Width : 2490 mm,

c) Height : 3170 mm,

d) Gross Weight: 18.9 tons,

e) Driving Type : Self-propelled (Tire Type),

f) Rated Power : 160/2100PS/RPM,

g) Number of Cylinders : 6Cylinders,

h) Fuel Type : Diesel.

Manual & drawings : Partially available.
