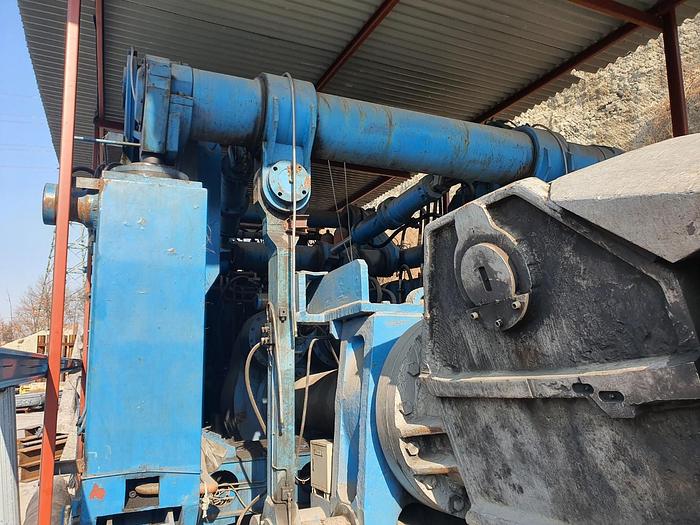

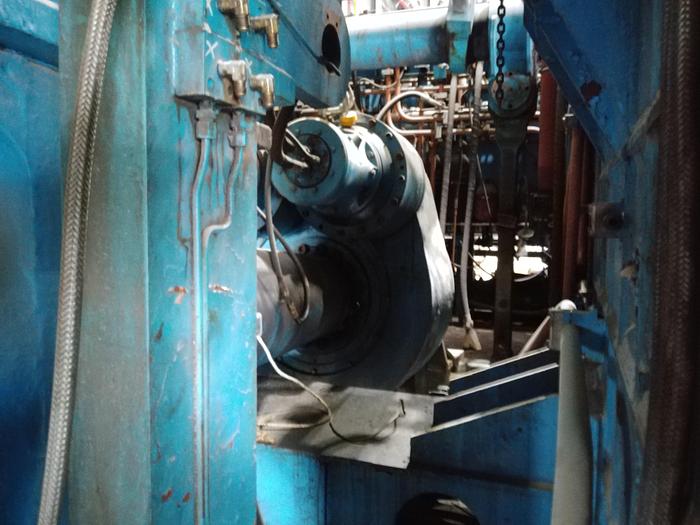

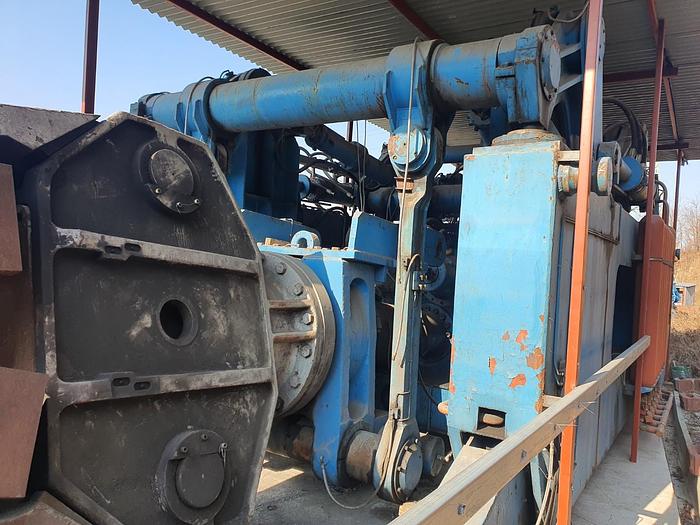

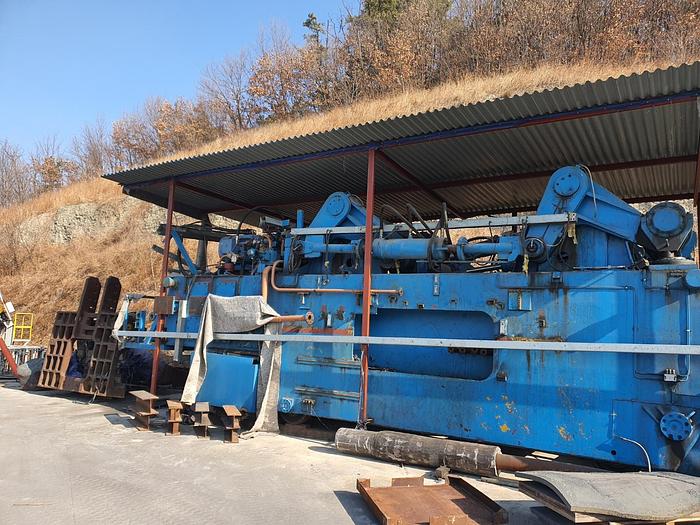

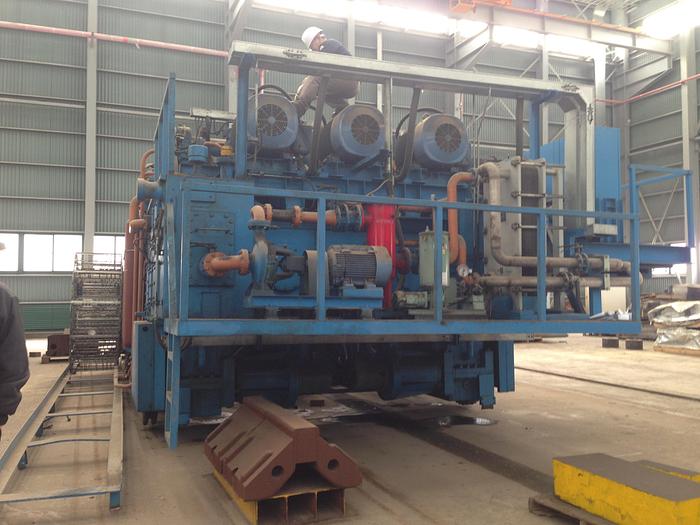

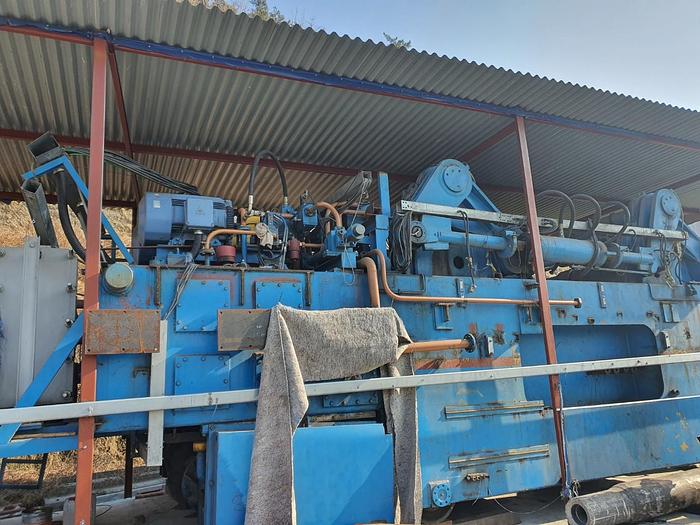

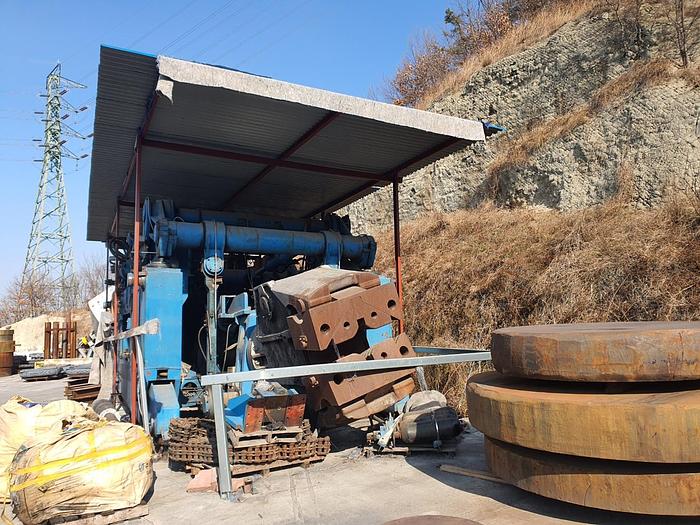

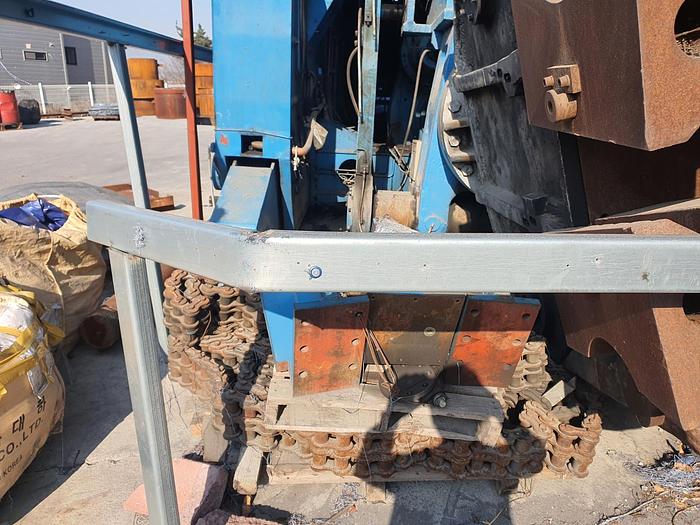

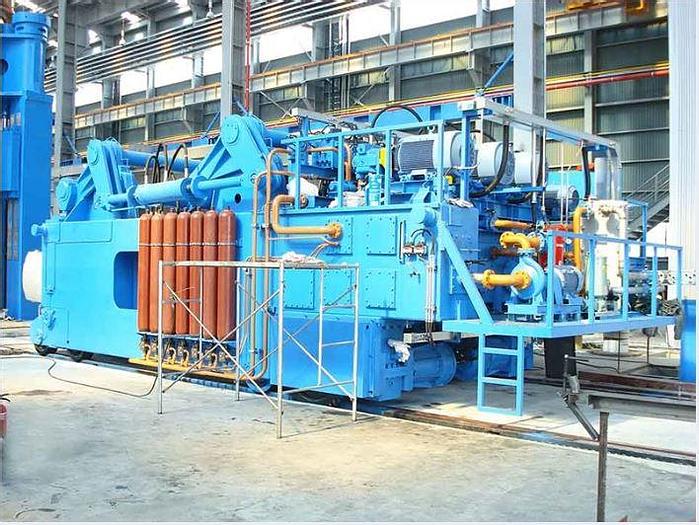

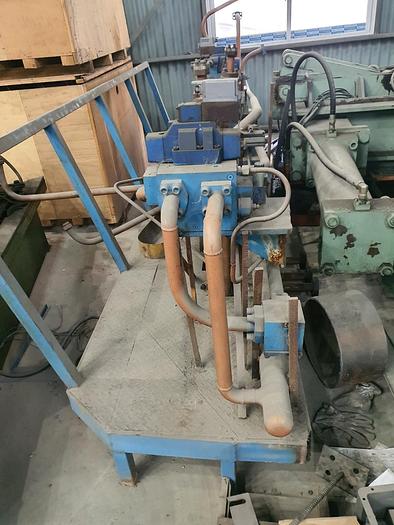

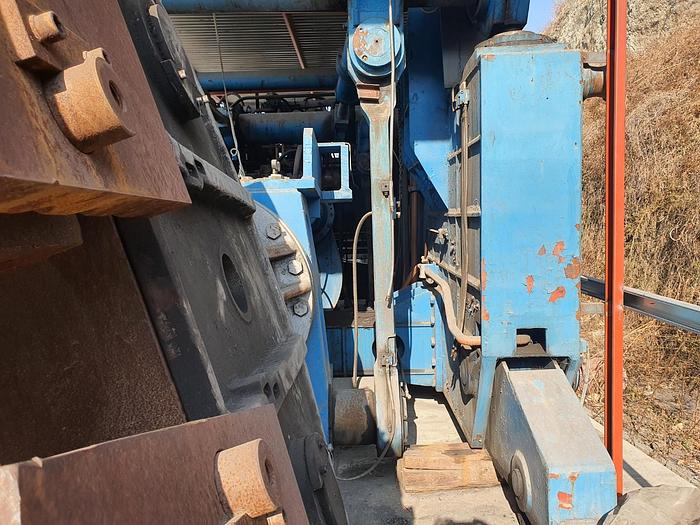

Manipulator Unison

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerUnison
Year2008
ConditionUsed
Stock NumberMA1783
Item condition Good working condition
Capacity tons30

Description

Capacity : 30 tons,

Carrying Capacity, nominal : 3000 kN,

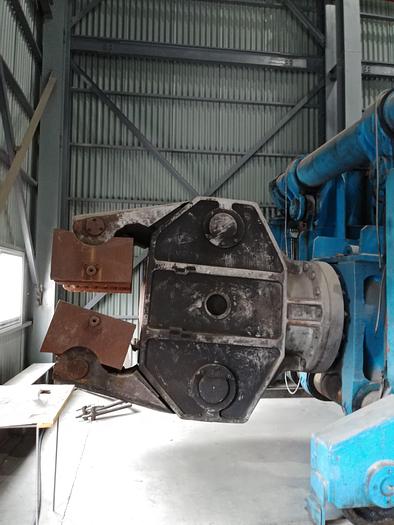

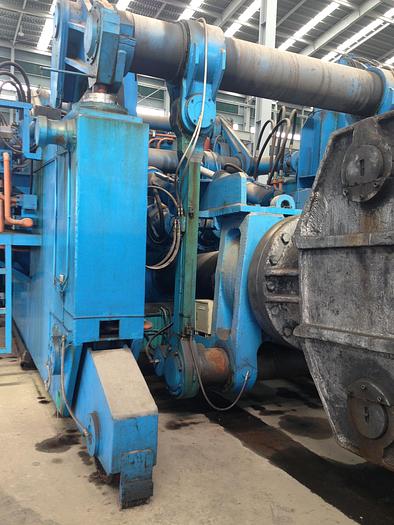

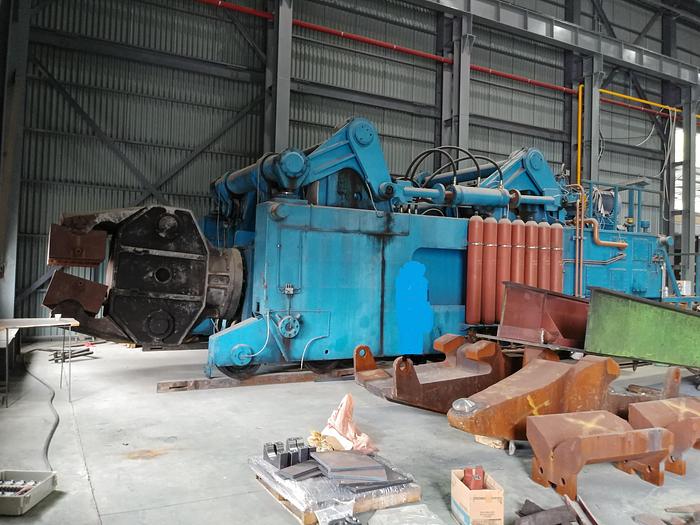

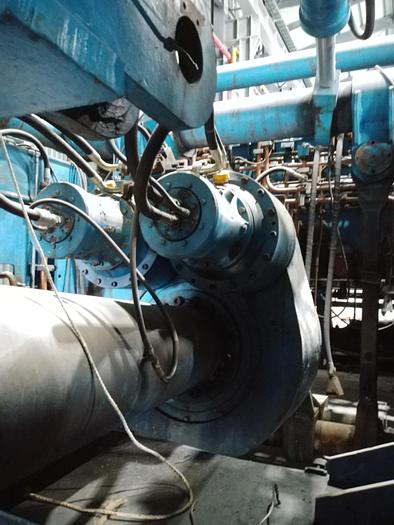

Tongs Clamping moment : 6000 kN,

Tongs openings, without inserts, round : 530/1400 mm round mm,

- with inserts : 200-530 round,

- with extension arms 100-2,000 mm round & Square,

Max. turning circle of opening tongs : 2,600 mm,

Min. tongs center height above rails : 1,200 mm

Max. tongs center height above rails : 2,500 mm

Vertical stroke of tongs parallel to floor : 1,300 mm

Vertical tilting angle of tongs : Up 15° down , up

Horizontal side shift of tongs : ± 200 mm

Horizontal slew angle of tongs : ± 5° mm

Horizontal movements of tongs in forging

direction, relative to carriage :± 300 mm

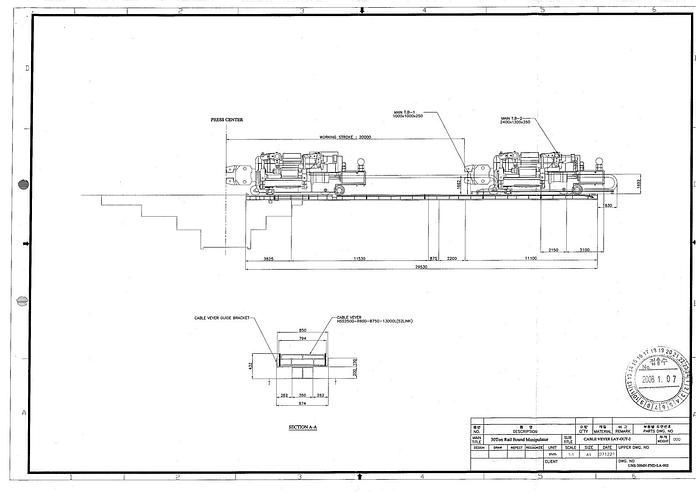

Centre rail distance : 3,700 mm,

Overall dimensions: -

width, approx. - 4,300 mm,

height, approx. - 4,400 mm,

length, approx. -12,000 mm,

Speed, times: -

-forging : 0-30 m/min,

- traveling : 0-50 m/min,

- turning of tongs : 15 RPM,

- lifting and lowering of tongs, compl. stroke : 90 mm/sec,

- tilting of tongs, compl. stroke : 90 mm/sec,

- side shifting of tong, compl. stroke : 80 mm/sec,

- clamping of tongs, compl. stroke : 70 mm/sec,

Accuracy:

- traveling : ±3 mm,

- Rotating : ±1°

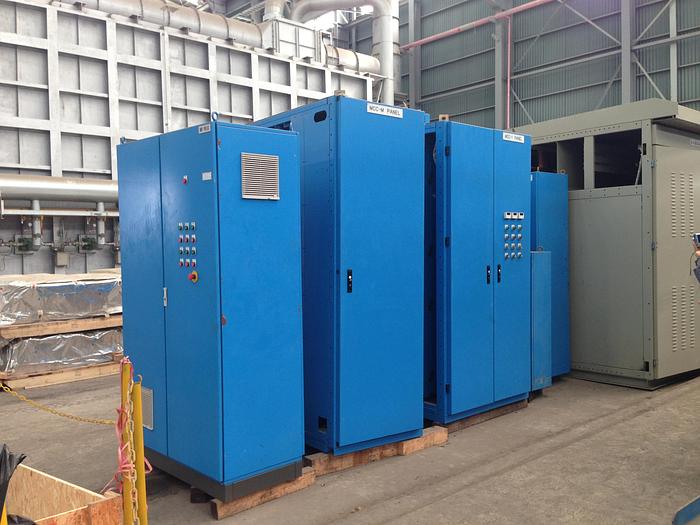

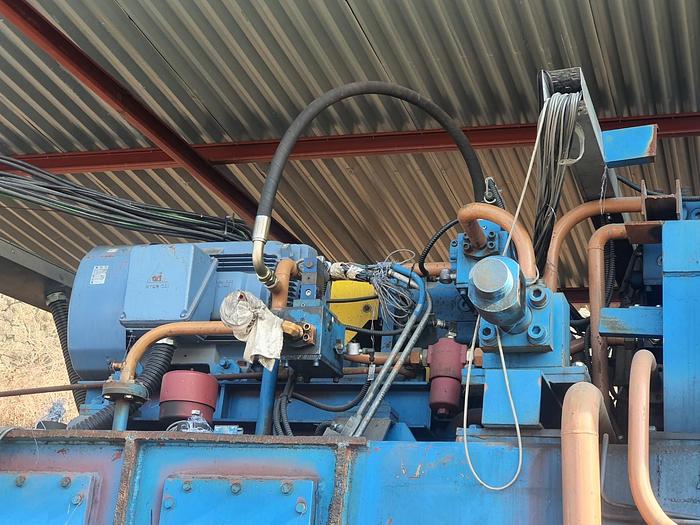

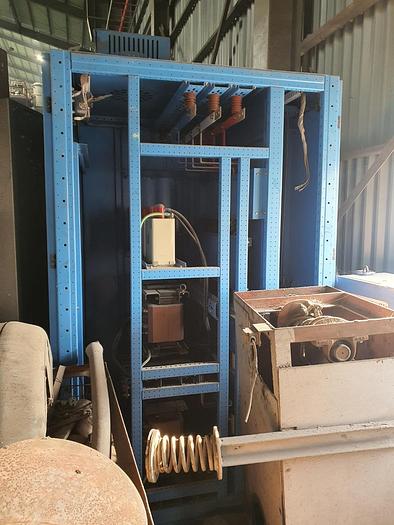

Total electrical capacity installed, approx. : 745 kW

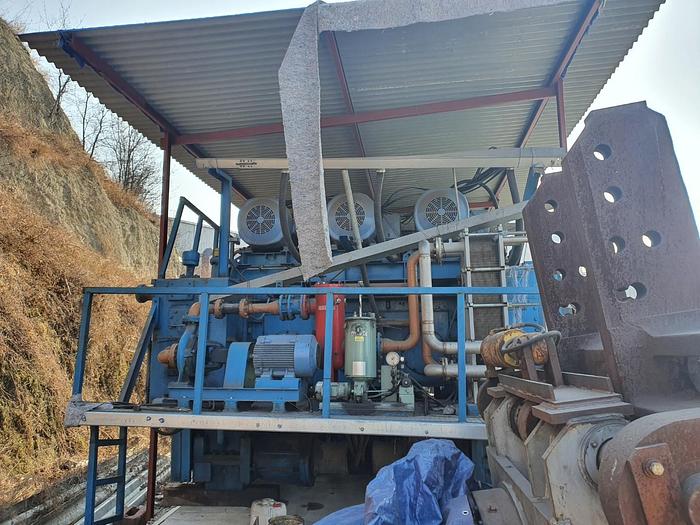

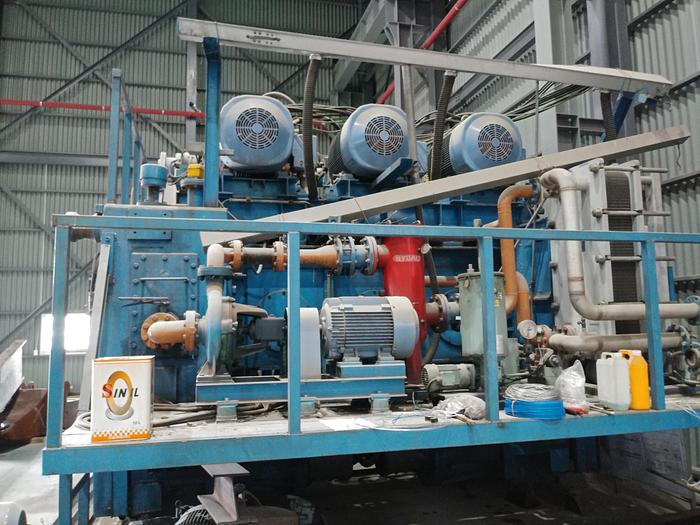

Total delivery of the main pumps : 1880 L/min

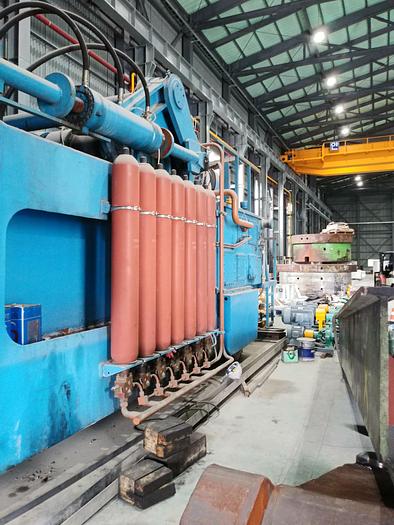

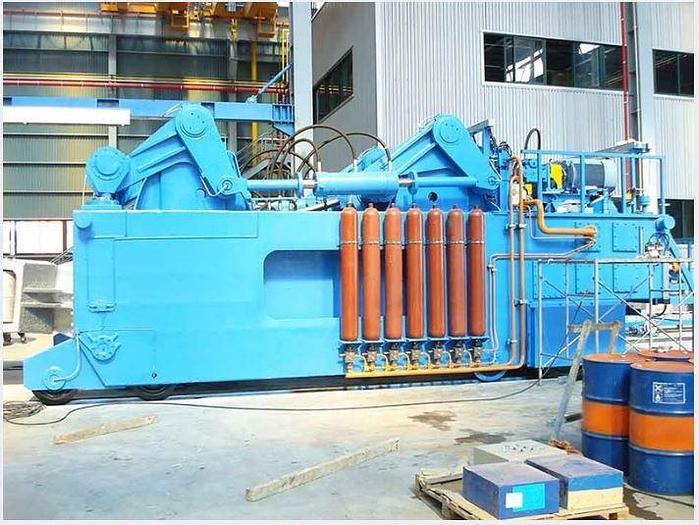

Total capacity of accumulator : 1400 l

Usable capacity of accumulator : 280 l

Cooling capacity, with max. water inlet temp.

36°C,min. :300 kW

Travel distance : 20 m

Weight on rails approx. Mechanic + Hydraulic : 180 tons.

Technical manuals available
