Rolling Mill

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerDanieli; Italy
Year1981
ConditionUsed
Stock NumberMA1786
Item conditionGood working condition

Description

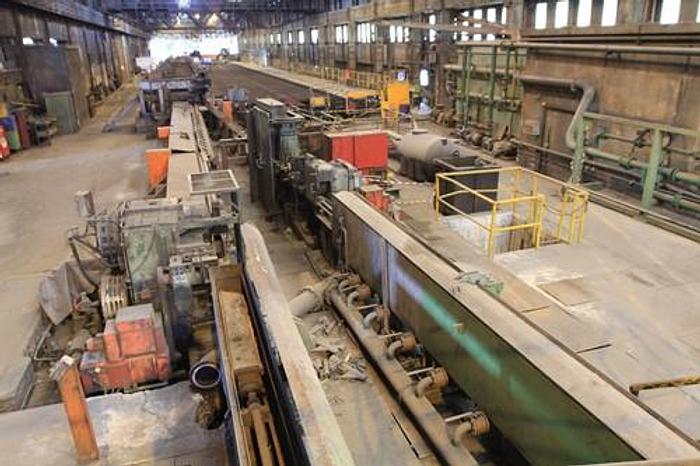

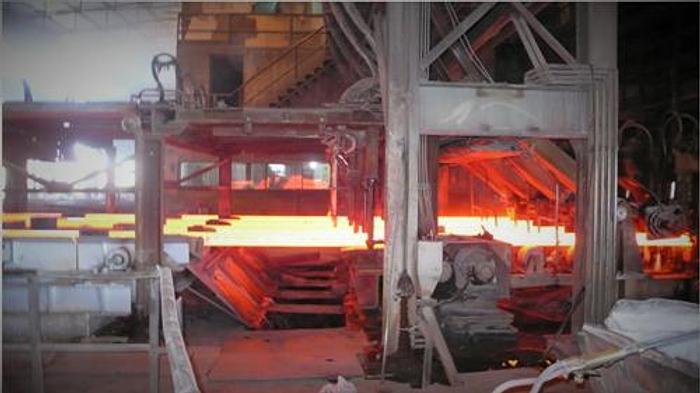

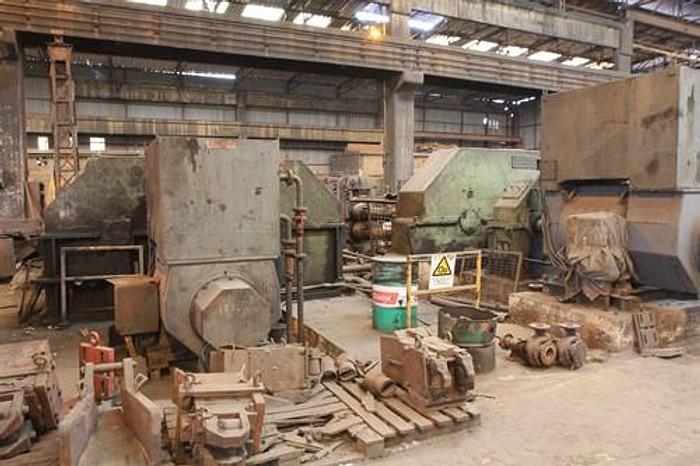

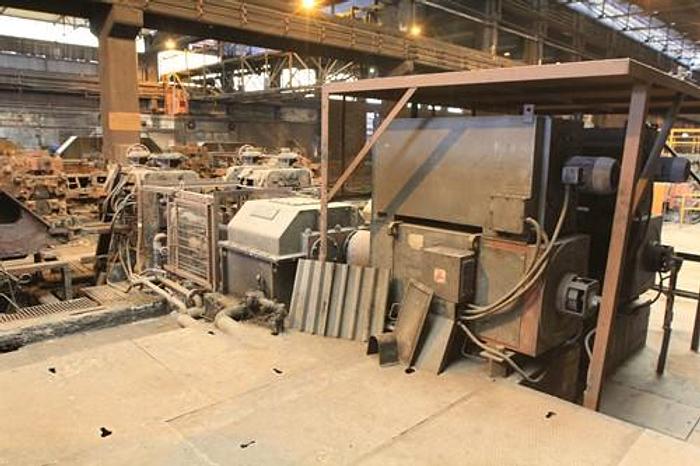

Rolling Mill for REBAR and WIRE, cap. 350.000 - 400.000 TPY


The Mill consists of :

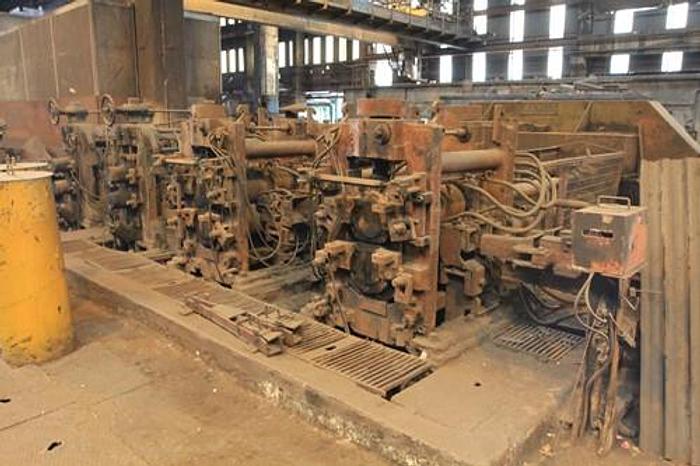

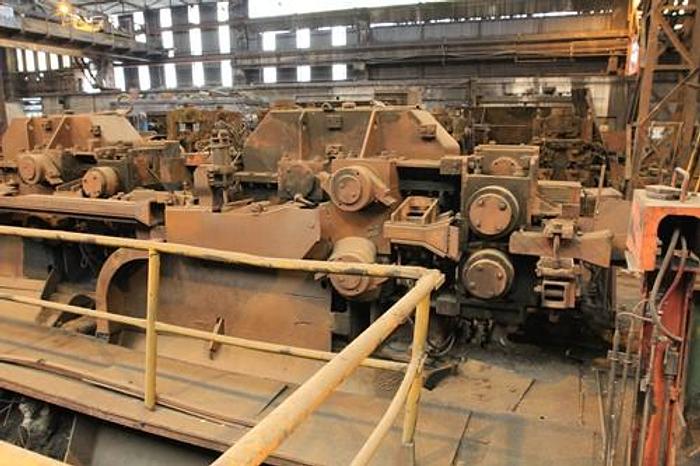

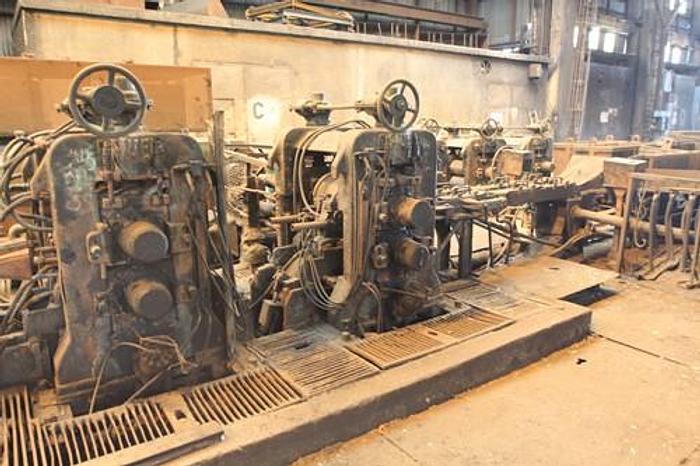

•    (4) Roughing Mill Stands (1-4)

•    (4) Intermediate Stands (5-8)

•    Shear

•    (4) Intermediate Stands (9-12)

•    (4) Finishing Stands (13-16)

•    Split Rebar (A)/Bar (B)/ Wire (C)

•    Shear

•    (6) Finishing Stands Rebar (17-22)

•    Shear

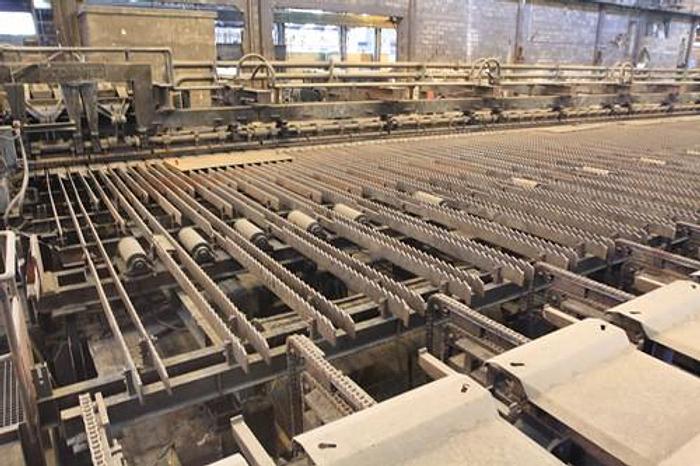

•    Coolant Bed

•    (8) Finishing Stands Wire (17-24)


Melt-Shop : Furnace

Consists of:

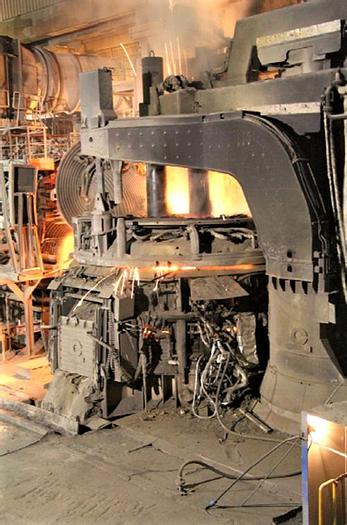

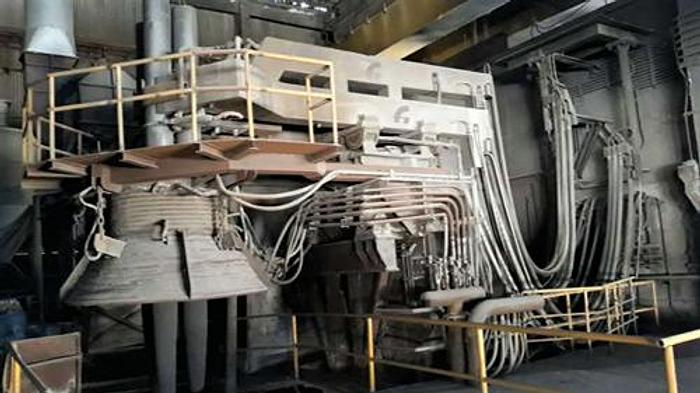

1.   70 Ton EAF (Electric Arc Furnace)

•    revamped in 2009 by SMS-CONCAST;

•    Type AC, Shell Type EBT, diam. 5.400 mm;

•    Tap weight 63 Ton;

•    Tap-to-Tap-Time 42 Min;

•    100% Scrap Charge; Electrode diam. 550 mm;

•    Electrode Regulation;

•    Upper Shell Water-Cooled Panels (Steel + Cu);

•    Arms design Conductive (copper cladded);

•    Scrap charge with 3 buckets

2. 65 Ton LF (Ladle Furnace) “TAGLIAFERRI”; Tap Time 42 Min.


3. MATERIAL HANDLING SYSTEM, Conveyors and Hoppers


4. CONTINUOUS BILLET CASTER “STS” revamped in 2008;

•    4-Strands;

•    5 meter Radius;

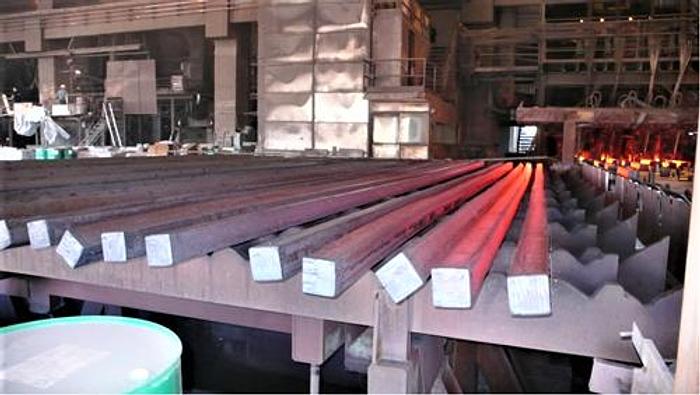

•    Billets 130 x 130 mm;

•    Automatic start and mould level control;

•    Oscillation with AC motors and variable oscillation frequency;

•    Water automation of primary and secondary circuits;

•    Heavy Duty Straighteners;

•    Upgraded roller table and transfer bridge;
