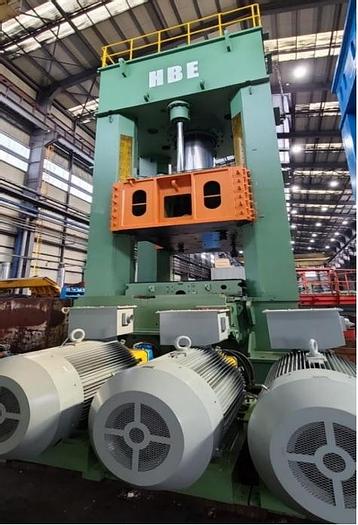

Press Forging Open Die Hydraulic HBE Korean

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerHBE Korean
Year2008
ConditionRefurbished
Stock NumberMA1791

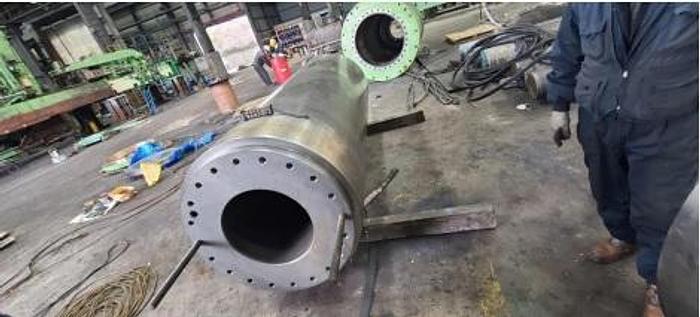

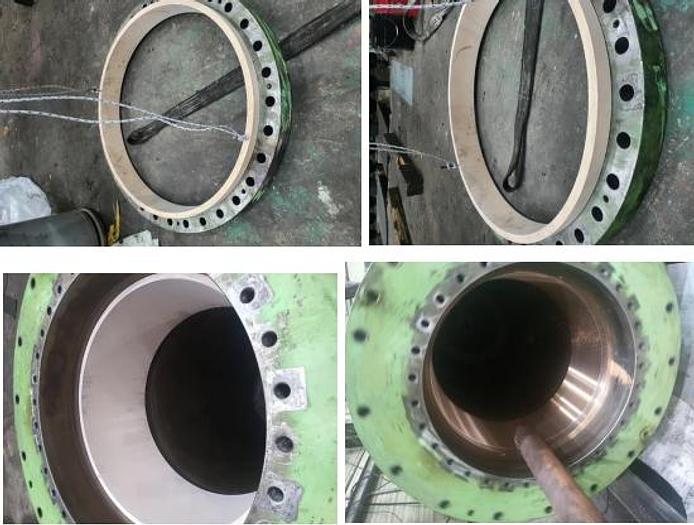

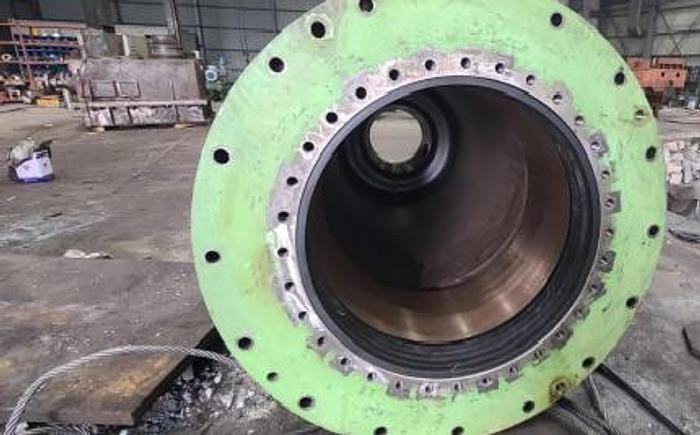

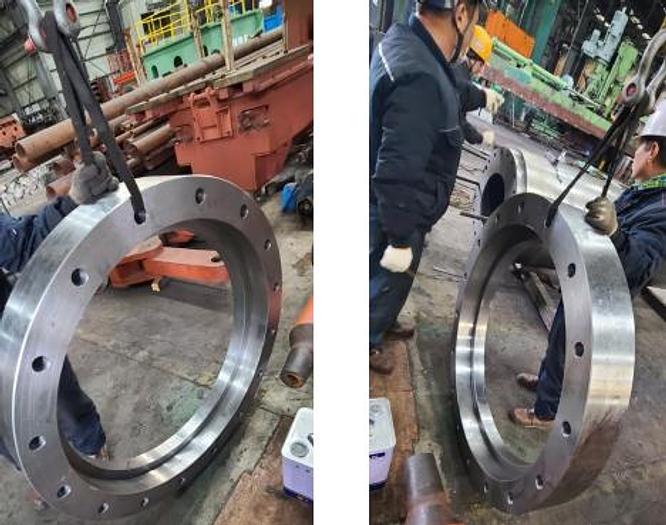

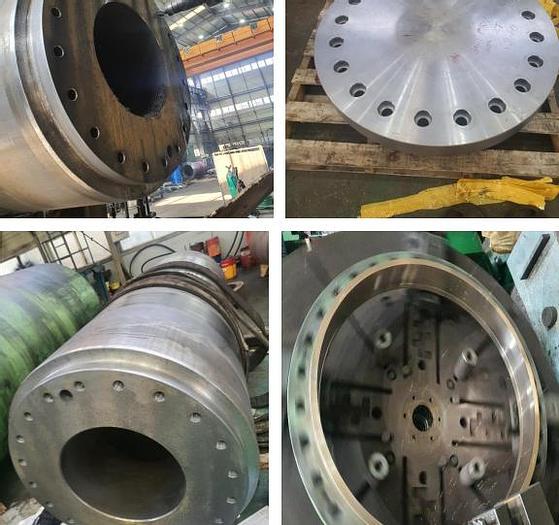

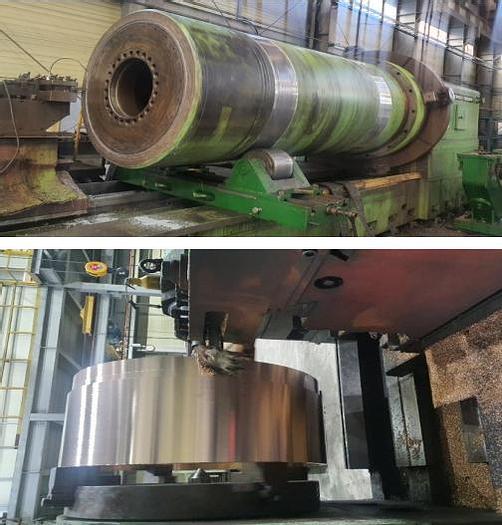

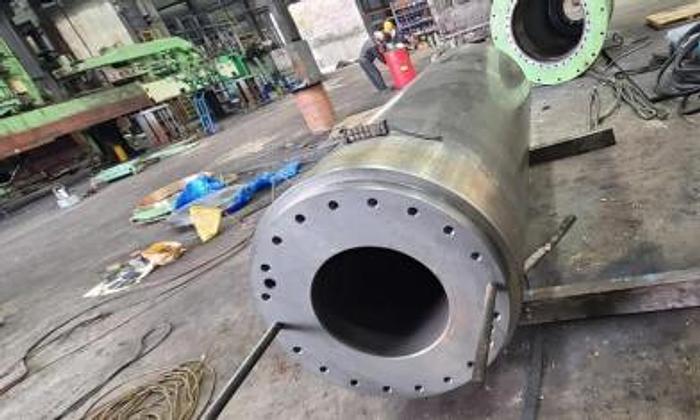

Item conditionGood working condition, Fully Refurbishment
Capacity tons3000

Description

Capacity : 3000 tons,

Nominal force : 25 MN (2500 tons),

Upsetting force : 30 MN (3000 tons),

Maximum press stroke : 2500 mm,

Press daylight : 4000 mm

Distance between column (inside width) : 3000 mm × 1460 mm,

Number of pull back cylinders : 2,

Die Table area (width × length × stroke) : 2400 mm × 5000 mm × 2500 mm,

Press speeds -

Forging speed : 40 mm/sec,

Advance speed : 250 mm/sec,

Return speed : 250 mm/sec,

Die table slide forward : 250 mm/sec,

Press forces :

- Pressing : 30 MN (3000 tons),

- Return : 3.0 MN (300 tons),

- Table shift at 250 bar : 0.94 MN (94 tons) ,

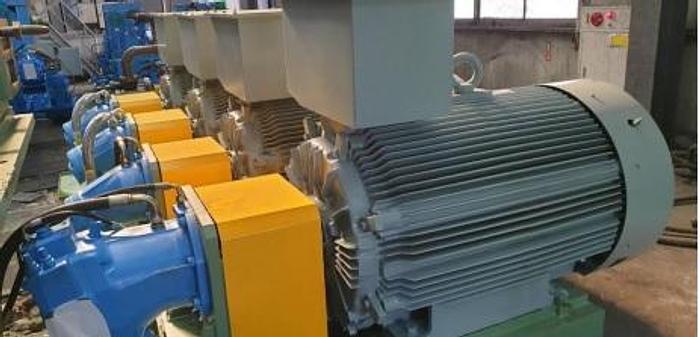

Hydraulic pumps : 4 sets × Axial piston pump, Rexroth Pressure rate 400 bar, Working pressure 320 bar,

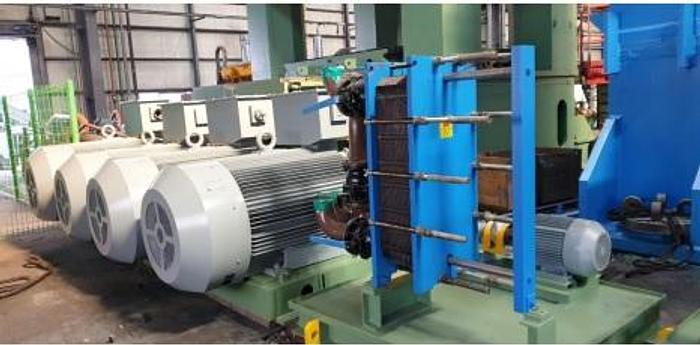

Electric motors :

4 sets × main motors : 250 kw, 440 volt,1200 rpm,

1 set × pilot pump : 22 kw, 440 volt,1200 rpm,

1 set × cooling and filtering motor : 15 kw, 440 volt, 1200 rpm,

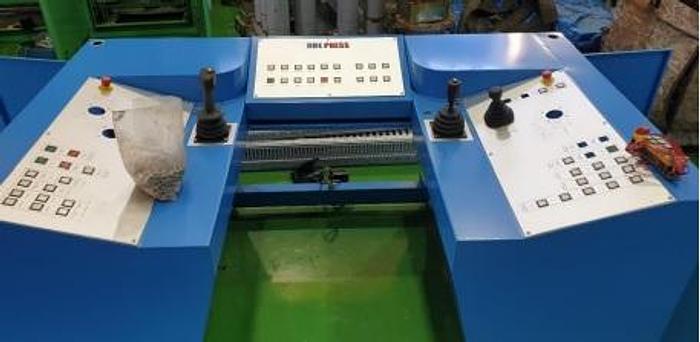

PLC control system and HMI : Upgraded to Siemens.
