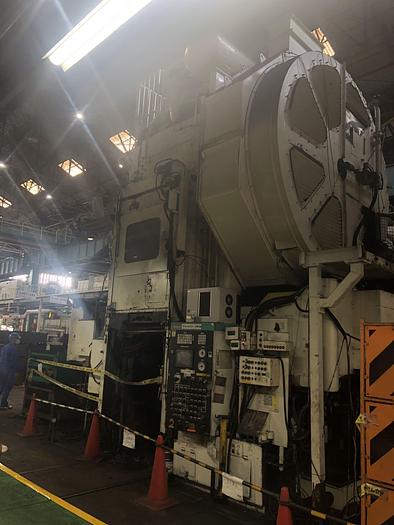

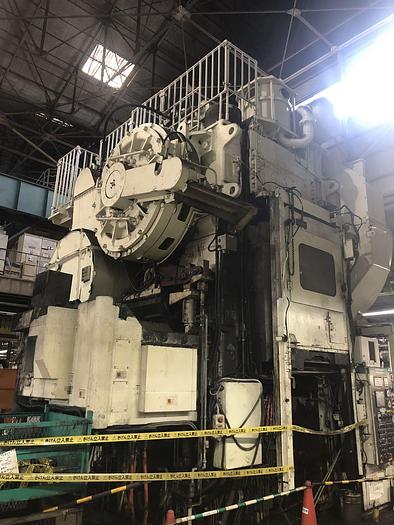

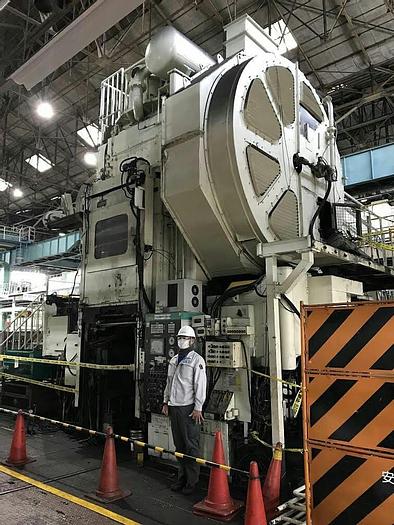

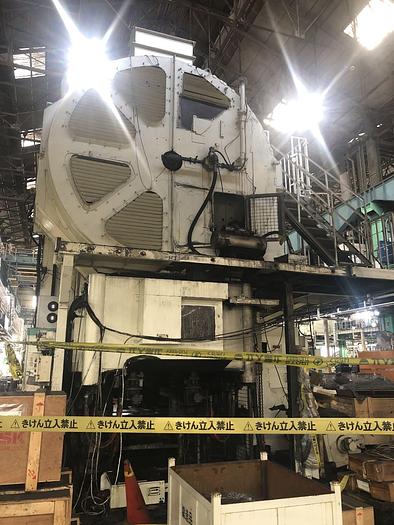

Press Hot Forging Sumitomo

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSumitomo, Japan
ModelFPA-3000
Year1984
ConditionUsed
Stock NumberMA1825
Item conditionGood condition
Capacity tons3000

Description

Capacity : 3000 tons,

Type : Top Drive, 1 Point, Eccentric Press,

Press type : Shaft Drive Type Mechanical Press,

SPM : 20~50 (Variable),

Slide Area : RL 1200 mm x FB1400 mm,

Bede Area : RL 1300 mm x FB1500 mm,

Shut Height : 1200 mm,

Slide Adjustment : 10 mm by Hydraulic Motor,

Upper Ejector : 50 mm,

Lower Ejector : 40 mm,

Slide Knock Out ( SKO ) : 20 Ton ( Pin ; 4ea),

( 2~4 stage:10 ton, 5 stage ;5 ton),

Knock Out Capacity : total 50 ton ( pin 4ea ),

Press Working height : 1030 mm

Press Height from the floor : 6800 mm,

Side opening : FB1000 mm x TB 1400 mm,

Main Motor : DC200KW, 1450RPM, 440V,

With :

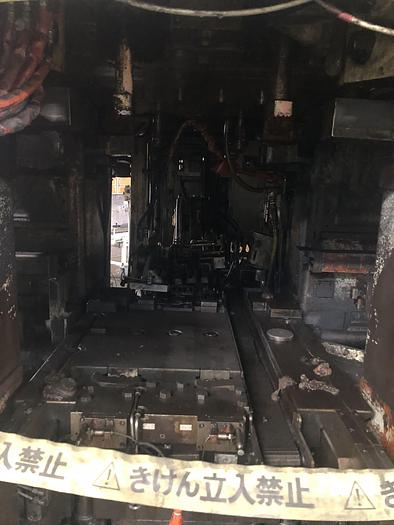

1. Die Change System - Die Holder will be changed by using of the Front bogie / Back Bogie, the stroke of front bogie 1.57M, the stroke of back bogie 2.87M ,Cycle Time : 9 Min 55sec.

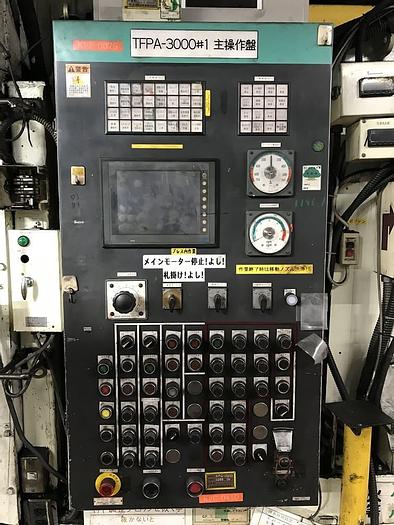

2. Computer automatic control system.
