Hot Forging Line ONM-55E

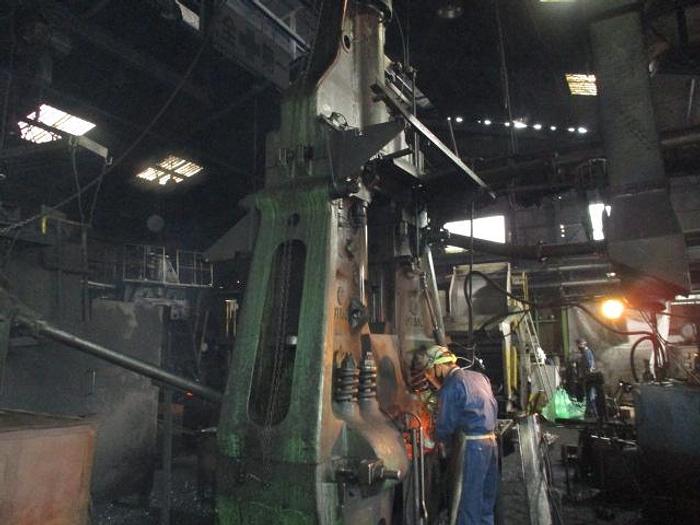

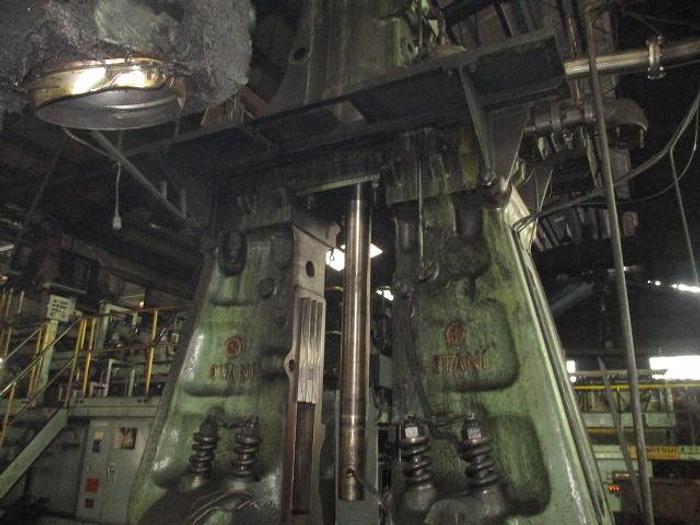

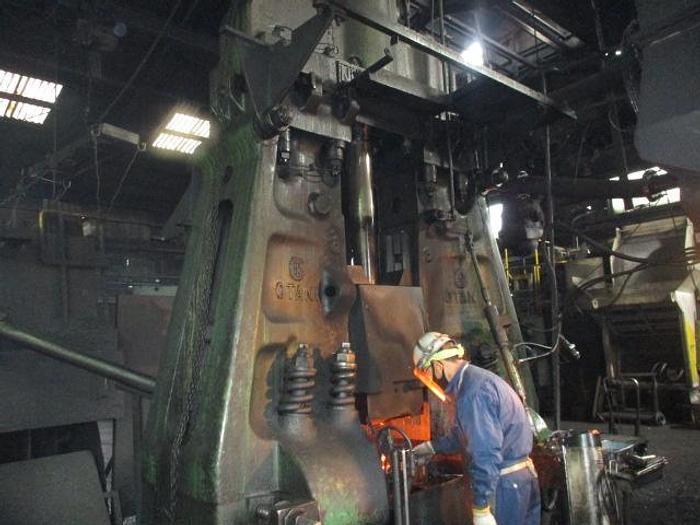

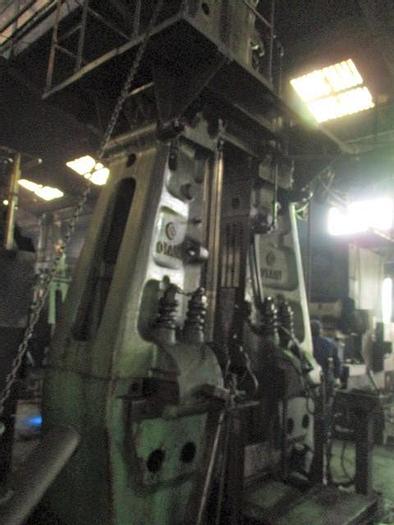

1) Air Drop Hammer

Make : Otani,

Model : ONM-55E,

Capacity : 2 tons

Impact Energy : 5865 kgs,

Dropping Weight : 1700 kgs,

Upper Mould Weight : 400 kgs,

Stroke : 1000 mm,

Guide Width : 530 mm,

Minimum Safe Mould Thickness : 300 mm,

Ram Size : 530 x 550 mm,

Upper Saw Block Size : 680 x 650 mm,

Saw Block Height from FL : 735 mm,

Inlet Pipe Size : 4B,

Exhaust Pipe Size : 5B,

Cylinder Bore : 370 mm,

Piston Rod Diameter : 160 mm,

Height Above Floor : 4857 mm.

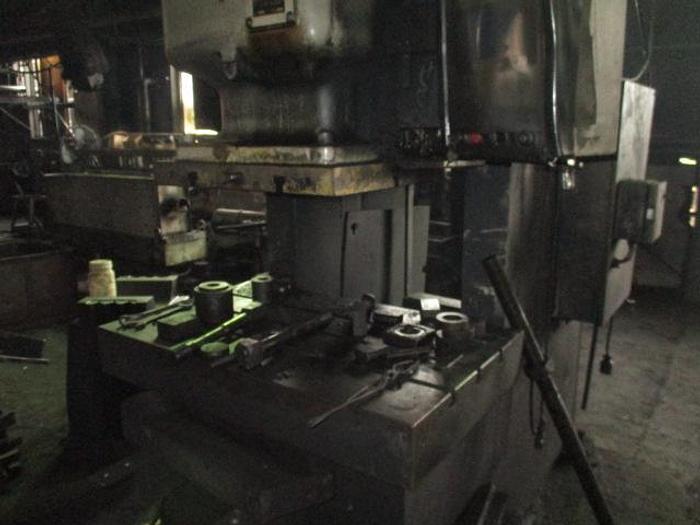

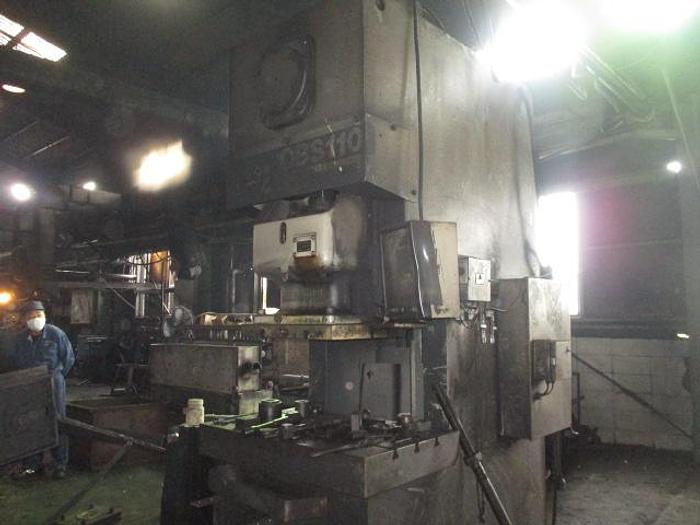

2) Trimming Press

Make : Komatsu,

Model : OBS 110-6B,

Capacity : 110 tons,

Stroke : 150 mm,

SPM : 50,

Die Height : 350 mm,

Adjust : 100 mm,

Slide : 620 x 530 mm,

Bolster : 1100 x 680 mm.

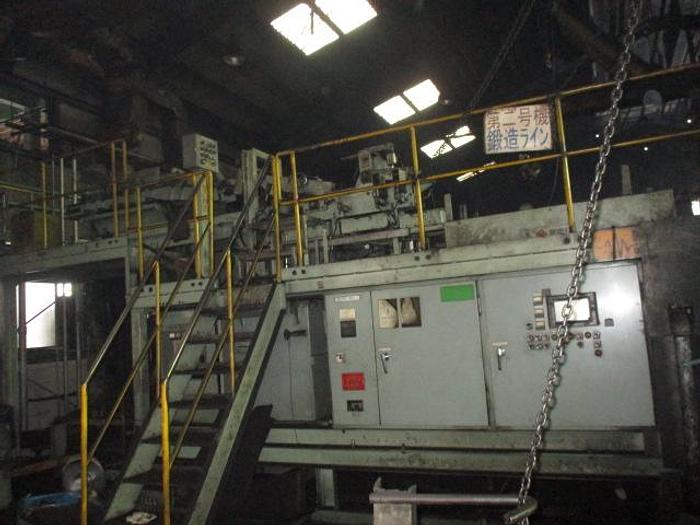

3) Induction Heater

Make : Mitsui,

Model : IPM-TR,

Voltage : 1000V,

Frequency : 3000 Hz.
