Hot Forging Line Nittan N400P-MKlll

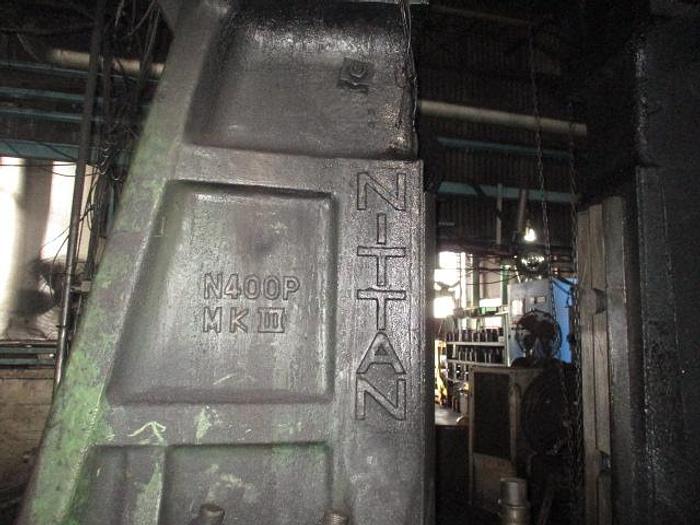

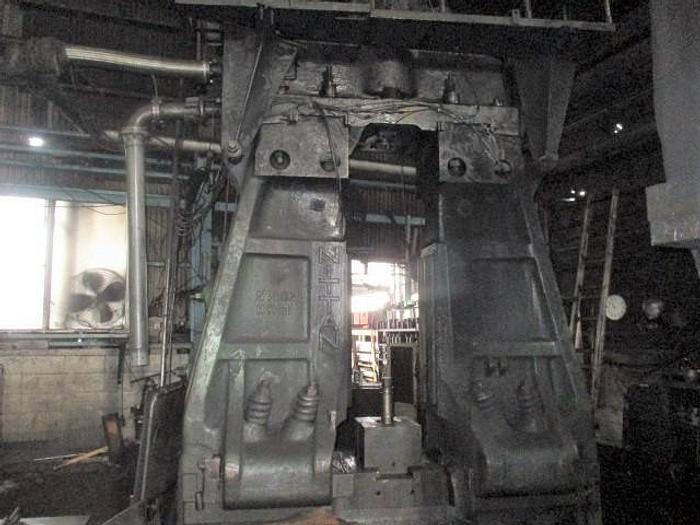

1) Air Drop Hammer

Make : Nittan,

Model : N400P-MKlll,

Capacity : 2 tons

Dropping Weight : 1700 kgs,

Upper Mould Weight : 440 kgs,

Stroke : 900 mm,

Guide Width : 500 mm,

Ram Saw Block Minimum : 400 mm,

Ram Size : 490 x 550 mm,

Saw Block Size : 615 x 680 mm,

Saw Block Height from FL : 650 mm,

Inlet Pipe Size : 3.5B,

Exhaust Pipe Size : 4B,

Cylinder Bore : 350 mm.

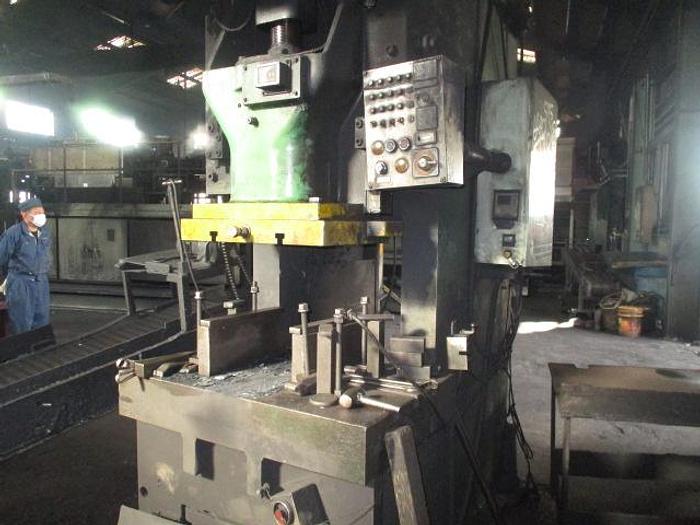

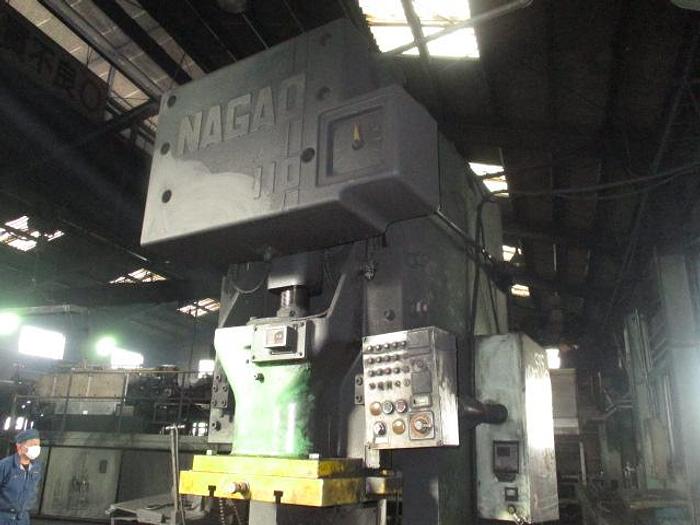

2) Trimming Press

Make : Nagao,

Model : NCP-110,

Capacity : 110 tons,

Stroke : 180 mm,

SPM : 45,

Die Height : 400 mm,

Adjust : 100 mm,

Bolster : 1100 x 680 mm.

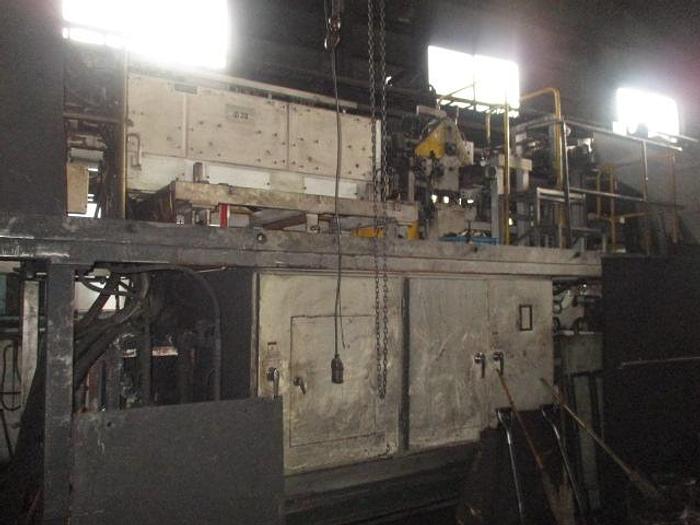

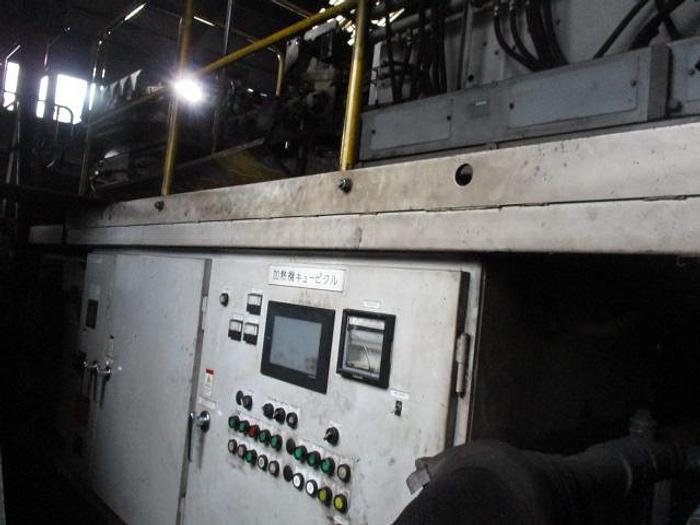

3) Induction Heater

Make : Mitsui,

Model : IPM-TR,

Voltage : 1000V,

Frequency : 3000 Hz.
