Ring Rolling Line Mico

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerMico
ConditionUsed
Stock NumberMA1850
Item conditionGood working condition

Description

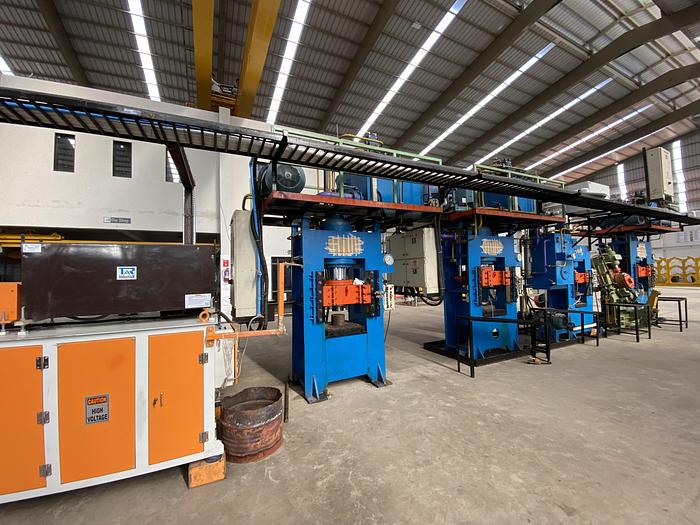

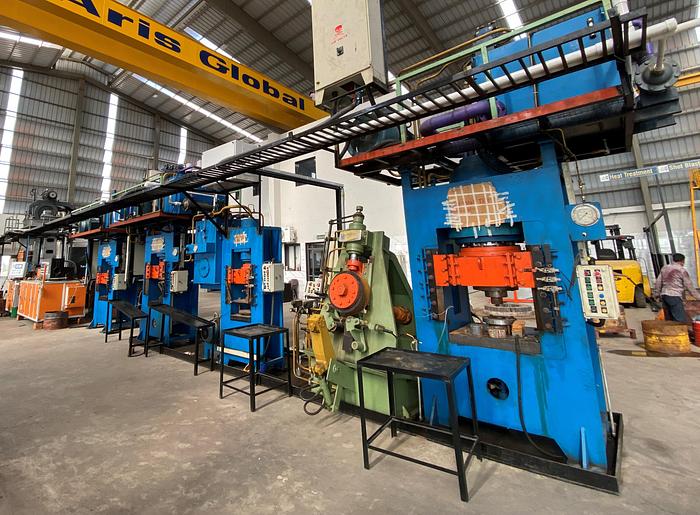

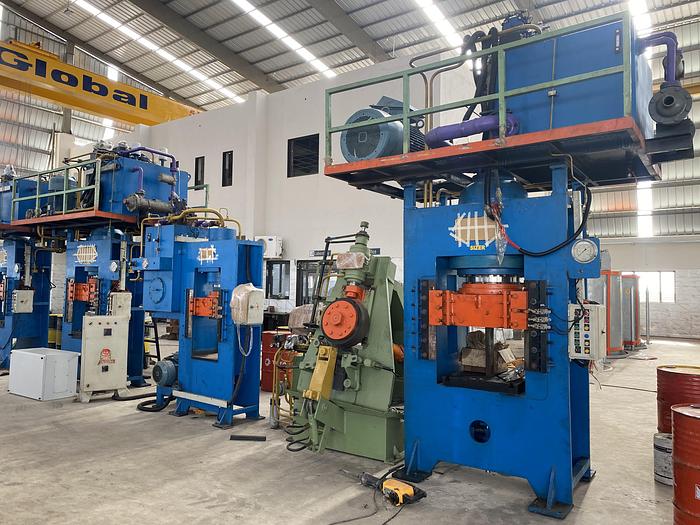

Hydraulic Ring rolling machine with Electric Induction Furnace.


1) R A Induction make - 250Kw/3KHz Induction Billet Heating Furnace System - 1 Nos


2) Mico Hydraulics make - 300 tons Hydraulic Upsetting Press - 1 Nos :

Capacity : 300 tons,

Working Pressure : 220kg/Cm2,

Approach Speed : 150 mm/sec,

Pressing Speed : 20 mm/sec,

Return Speed : 200 mm / sec,

Ram stroke : 350 mm,

Dilate Gap : 500 mm,

Table size : 450 X 410 X 70 mm,

Motor Capacity : 80 HP make ABB,

Pump : Veljan make

Hydraulic valve : Rexroth Make,

Oil Tank Capacity : 400 Ltrs,

Oil Cooler : 1 No. 250 lpm


3) Mico Hydraulics make - 300 tons Hydraulic Punching Press - 1 Nos :

Capacity : 300 tons,

Working Pressure : 220kg/Cm2,

Approach Speed : 150 mm/sec,

Pressing Speed : 30 mm/sec,

Return Speed : 200 mm / sec,

Ram stroke : 350 mm,

Dilate Gap : 500 mm,

Ejector Capacity : 10 Mt,

Table size : 450 X 410 X 70 mm,

Motor Capacity : 120 HP make ABB,

Pump : Veljan make

Hydraulic valve : Rexroth Make,

Oil Tank Capacity : 400 Ltrs,

Oil Cooler : 1 No. 250 lpm


4) Mico Hydraulics make - 400 tons Hydraulic sizer Press - 1 Nos :

Capacity : 400 tons,

Working Pressure : 220kg/Cm2,

Approach Speed : 150 mm/sec,

Pressing Speed : 20 mm/sec,

Return Speed : 200 mm / sec,

Ram stroke : 350 mm,

Dilate Gap : 500 mm,

Table size : 450 X 410 X 70 mm,

Ejector Capacity : 10 Mt,

Motor Capacity : 100 HP make ABB,

Pump : Veljan make

Hydraulic valve : Rexroth Make,

Oil Tank Capacity : 400 Ltrs,

Oil Cooler : 1 No. 250 lpm


5) Mico Hydraulics make - Vertical Ring Rolling Machine - 1 Nos

Ring OD : 80 - 220 mm,

Ring Height : 80 mm (Max),

Main Roller Dia : 400 mm,

Max. Roller Force : 25 mt

Cylinder Stroke : 100 mm,

Rolling Speed : 72 RPM,

Slide distance : 80 mm,

Power of Main Motor : 40 HP make ABB/Kirloskar,

Power pack Motor : 5 HP make ABB/Kirloskar,

Gear Box : 1 Nos. (make Elecon),

Oil Tank capacity : 150 Ltrs,

Pump : Make Denison,

Hand lever operated valve : Make Polyhydron / Prism,

Centralize Oiling systems : Make Easy lub

Bearing : Make FAG / SKF.


6) Mico Hydraulics make - 150 tons Hydraulic Trimming Press - 1 Nos :

Capacity : 150 tons,

Working Pressure : 220kg/Cm2,

Approach Speed : 150 mm/sec,

Pressing Speed : 10 mm/sec,

Return Speed : 200 mm / sec,

Ram stroke : 350 mm,

Dilate Gap : 500 mm,

Table size : 450 X 410 X 70 mm,

Motor Capacity : 20 HP make ABB,

Pump : Veljan make

Hydraulic valve : Rexroth Make,

Oil Tank Capacity : 200 Ltrs,

Oil Cooler : 1 No. 250 lpm
