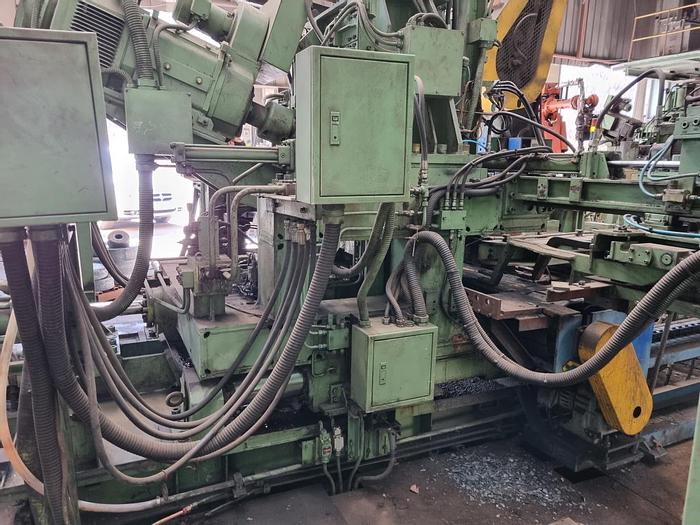

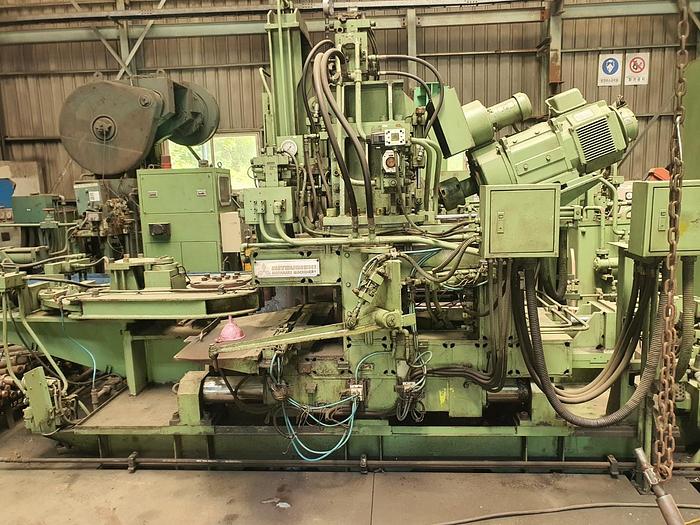

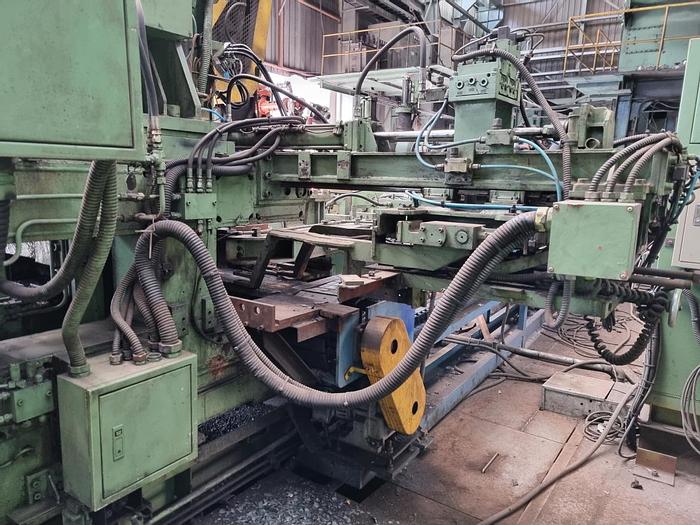

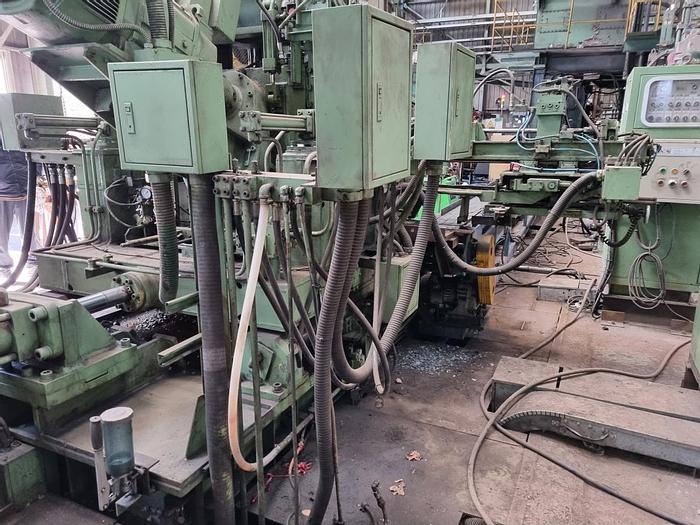

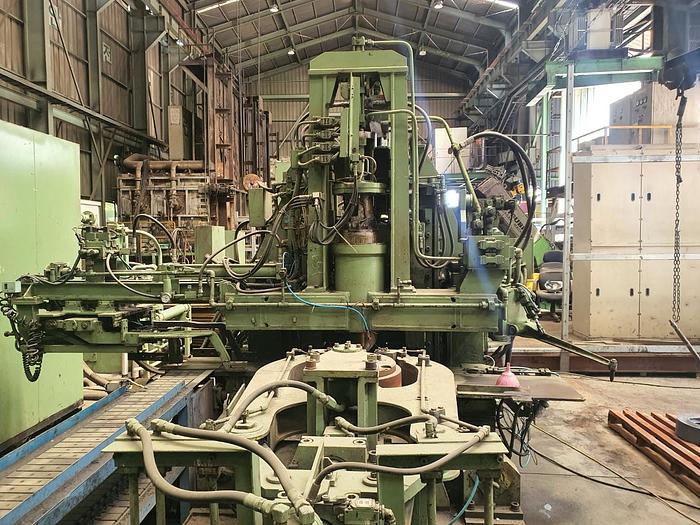

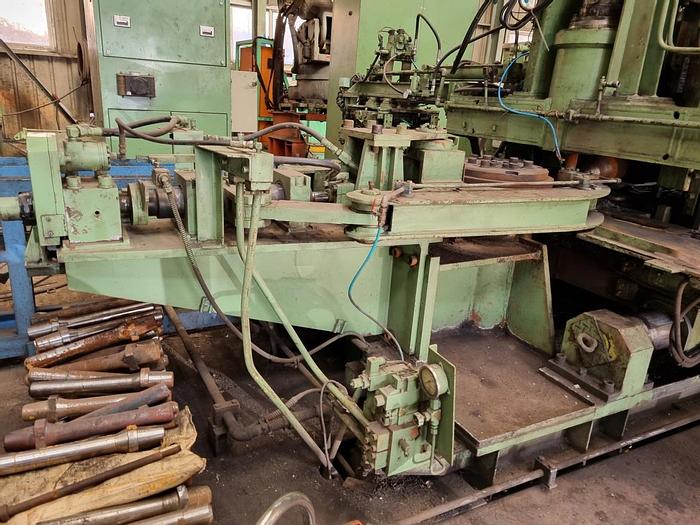

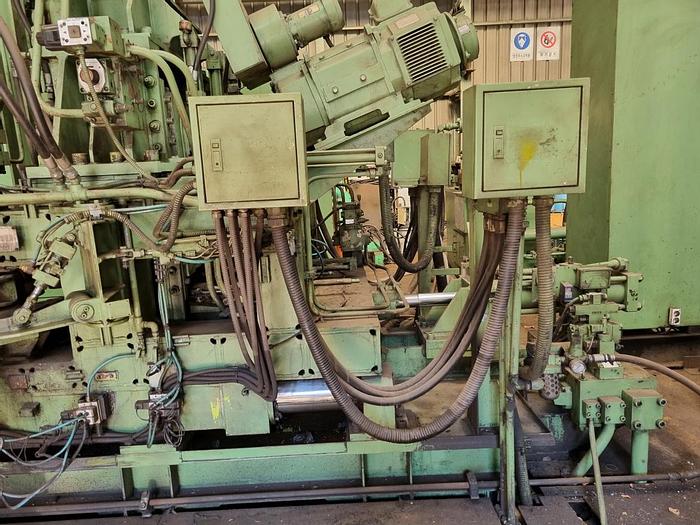

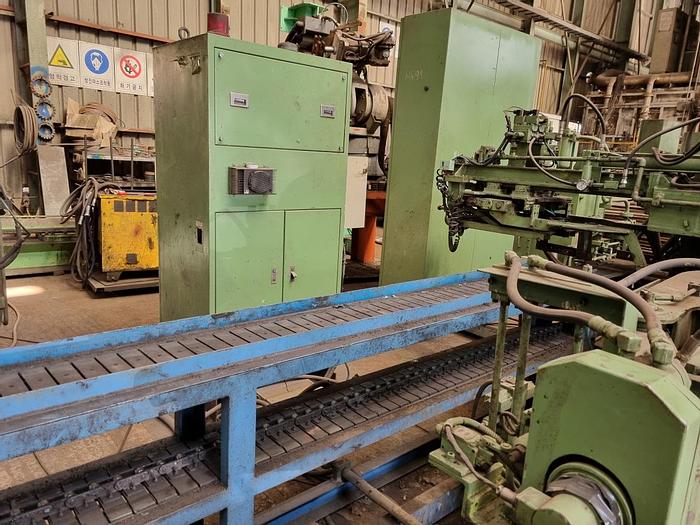

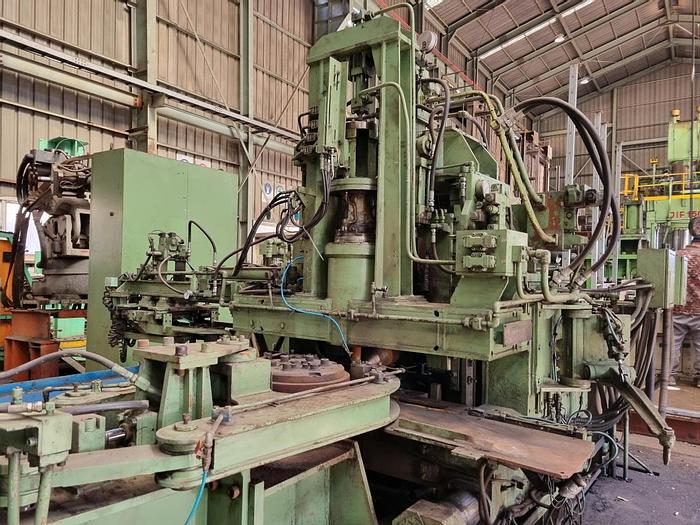

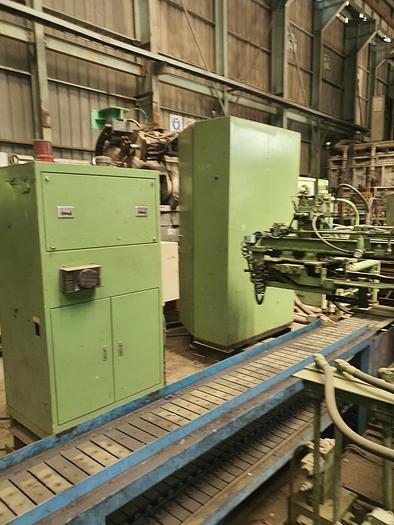

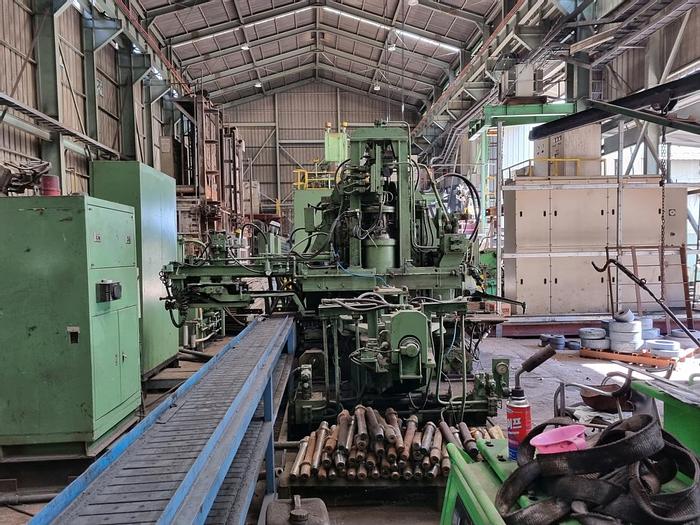

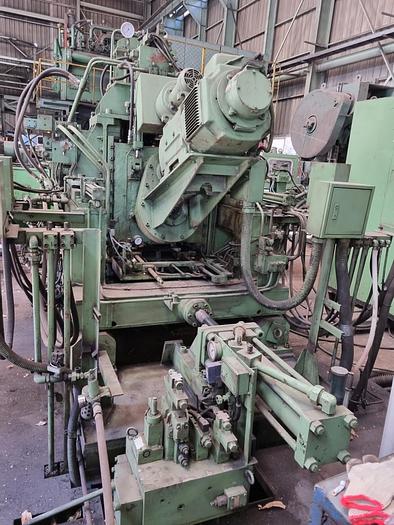

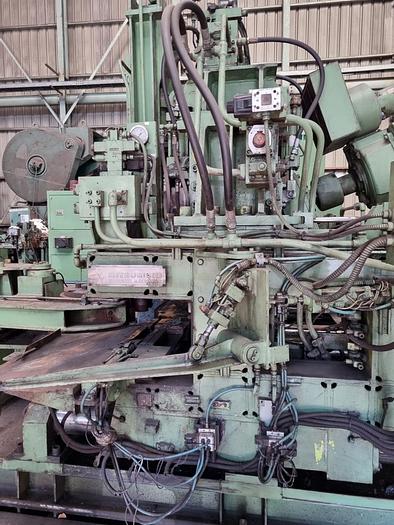

Ring Rolling Machine Mitsubishi

Radial axial ring rolling machine

Outside diameter of ring : max. 300 mm,

Weight of ring : max. 10 kg,

Outside diameter of ring: min. 130 mm,

Height of ring : 30 ~ 100 mm,

Outside diameter of material : min. 70 mm,

Inner diameter of material : min. 52 mm,

Height of material : max. 110 mm,

    1.2 Rolling force

           Radial : max. 20 ton,

           Axial : max. 15 ton,

      1.3 Other abilities

           Medium roll pushing force : max. 2 ton,

           Hugging roll pushing force : max. 1 ton(on one side),

           Fixed size roller pushing force : 30 kg,

      1.4 Main roll

           Outside diameter : 450 mm,

           Height : 140 mm,

           Peripheral speed : 1.4m/S

           Electric motor : fully closed fan type, AC 220V, 60HZ, 37 KW, 6P

           Reduction ratio : 1/19.9

      1.5 Edge roll

           Taper angle : 40 degrees

           Outside diameter : 25.9 ~ 185.0 mm

           Length : 270.0 mm

           Rotation speed : 90 ~ 1200 rpm

           Electric motor : AC 200V, 60HZ, DC 37 KW x 1450 rpm

           Reduction ratio : 1/1.21

      1.6 Medium roll

           Diameter : 48 mm

           Length : 415 mm

      1.7 Hugging roll

           Diameter : 95 mm

           Length : 112 mm(standard)

                         89 mm(or ring drive)

      1.8 Fixed size roller

           Outside diameter : 100 mm

Technical manuals available.
