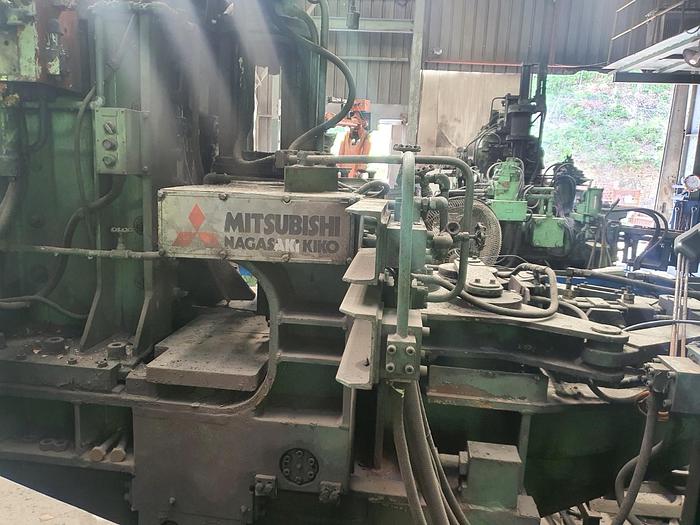

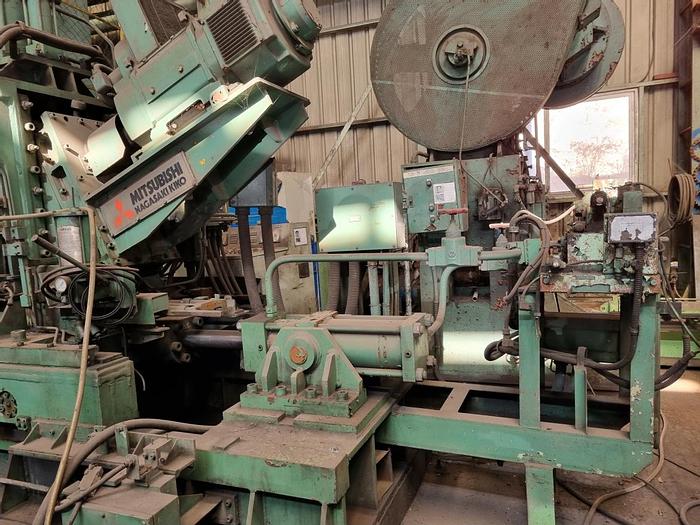

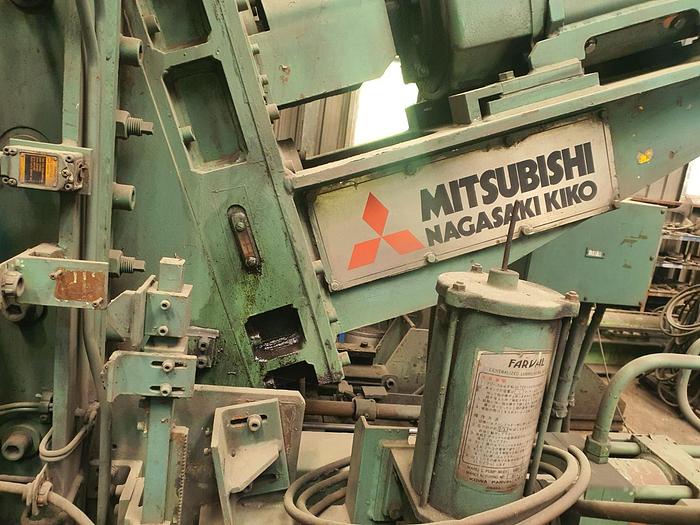

Ring Rolling Machine Mitsubishi

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerMitsubishi

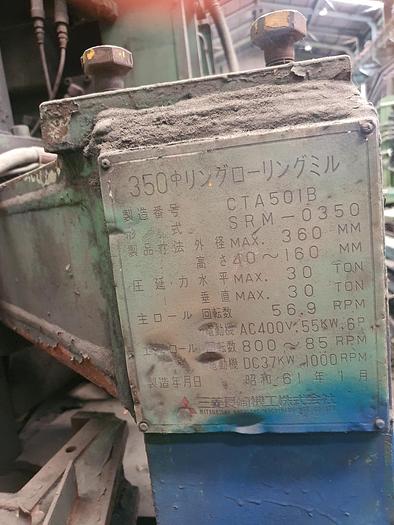

ModelSRM-0350
Year1986
ConditionUsed
Stock NumberMA1856
Item conditionGood condition
Capacity tons350

Description

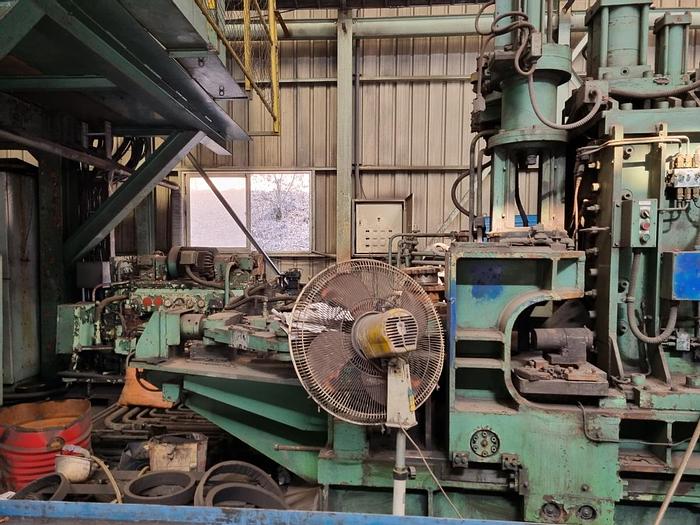

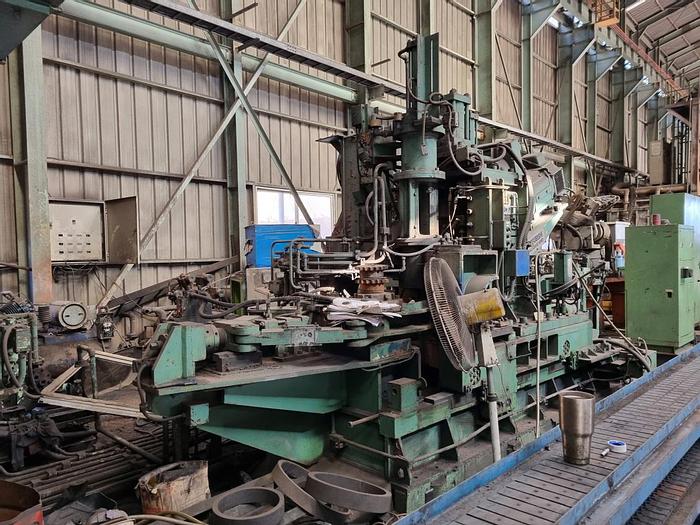

Radial axial ring rolling machine

Outside diameter of ring : max. 350 mm,

Weight of ring : max. 30 kg,

Outside diameter of ring: min. 180 mm,

Height of ring : 40 ~ 160 mm,

Outside diameter of material : min. 110 mm,

Inner diameter of material : min. 60 mm,

Height of material : max. 170 mm,

Height : Thickness(material) : max. 1 : 1.5,

    1.2 Rolling force

           Radial : max. 30 ton,

           Axial : max. 30 ton,

      1.3 Other abilities

           Medium roll pushing force : regular 4 ton, max. 10 tons,

           Hugging roll pushing force : max. 3.3 ton(on both sides) min. 230 kg(on both sides),

           Fixed size roller pushing force : 30 kg,

      1.4 Main roll

           Outside diameter : 500 mm,

           Height : 190 mm,

           Peripheral speed : 1.49 m/S,

           Electric motor : AC 400V, 50HZ, AC 55KW, 6P,

           Reduction ratio : 1/16.975

Height adjustment allowance(at the shim) : ± 5mm

      1.5 Edge roll

           Taper angle : 45 degrees,

           Outside diameter : 30.6 ~ 257.6 mm,

           Length : 336.5 mm,

           Rotation speed : 800 ~ 85 rpm,

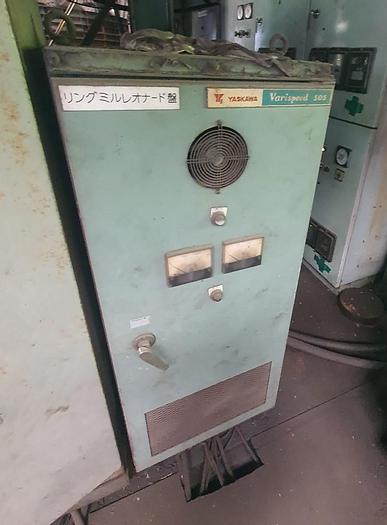

           Electric motor : AC 400V, 50HZ, DC 37 KW x 1000 rpm,

           Reduction ratio : 1/1.25,

      1.6 Medium roll

           Diameter : 50 mm

           Length : 470 mm

Height adjustment allowance : ± 5 mm

      1.7 Hugging roll

           Diameter : 100 mm Max. dia. 120 mm,

           Length : 91 mm and 37 mm,

           Effective shaping height : 160 mm,

           Height adjustment allowance : ± 5 mm

      1.8 Fixed size roller

           Outside diameter : 90 mm,

Height adjustment allowance(at the shim) : 5 mm.

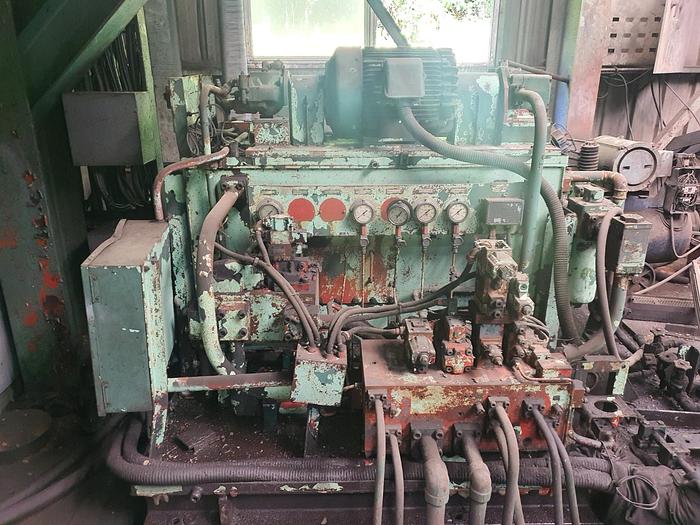

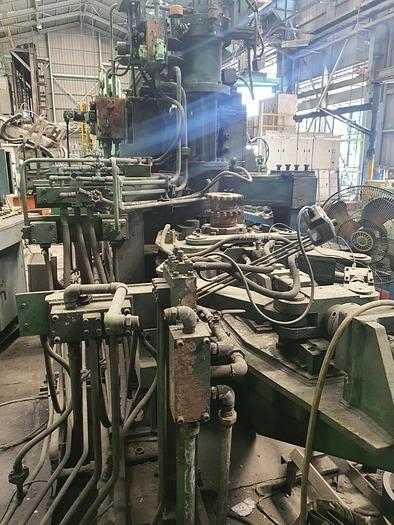

Condition : Not working. It should be repaired electrical & hydraulic parts.
