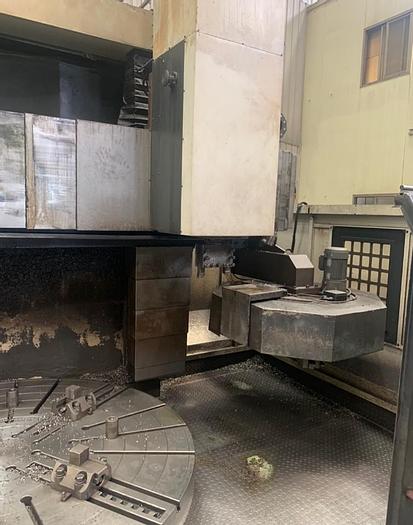

Lathe Vertical Turning CKZ5126

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerDalian
ModelCKZ5126
Year2016
ConditionUsed
Stock NumberMA1869
ConditionGood working
Capacity tons2600

Description

Max. turning dia : 2600 mm,

Worktable dia : 2250 mm,

Max. workpiece height : 1600 mm,

Max. workpiece weight : 12 tons,

Max. worktable torque : 35 KN.m,

Worktable rotate speed range (4 gear. steeples) : 3.2-160 r/min,

Max. cutting force of vertical tool post : 32 KN,

Tool post feeding amount range (steeples) : 0.1-500 mm/min,

Horizontal stroke of vertical tool post : 1480 mm,

Ram stroke of vertical tool post : 1000 mm,

Rapid movement speed of tool post : 2500 mm/min,

Lifting speed of cross beam : 440 mm/min,

Tool arbor section size (w X h) : 30 X 40 mm,

Cross beam grading positioning pitch : 200 mm,

Main motor power : 55 (servo) KW,

Machine over size : 4800 X 3650 X 4300 mm,

Machine weight (approx.) : 28 tons.
