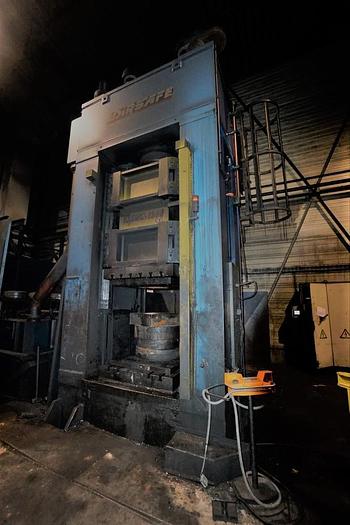

Press Forging Hydraulic Loire Safe

Capacity : 1500 tons,

Stroke : 600 mm,

Max. distance ram – table : 1400 mm,

Min. distance ram – table : 800 mm,

Table size (left – right) : 1200 mm,

Table size (front – back) : 1200 mm,

Ram size (left – right) : 1200 mm,

Ram size (front – back) : 1200 mm,

Approach speed : 270 mm / sec,

Forging speed (continuous at 400 ton) : 81 mm / sec,

Forging speed (adjustable from 400 – 1500 ton) : 81-26 mm / sec,

Return speed : 300 mm / sec,

Power : 3 x 110 kW

Total weight : 105 tons.
