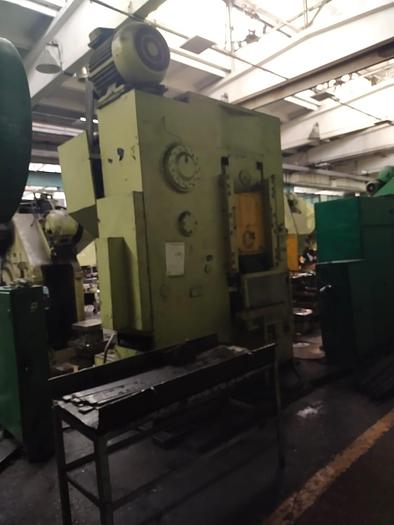

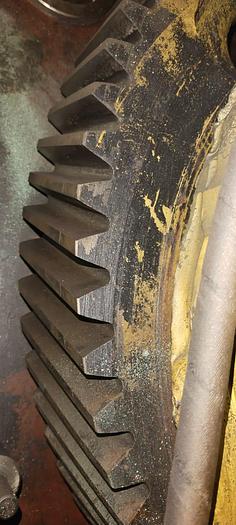

Press Cold Extrusion KB0032 Barnaul Russia

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerBarnaul Russia
ModelKB0032
ConditionUsed
Stock NumberMA1902
Item conditionGood Condition
Capacity tons160

Description

Capacity : 160 tons,

Ram Stroke : 160 mm,

Strokes per minute : 50,

Bolster plate to ram adjustment : 16 mm,

Ram stroke to lower dead center at nominal force : 22 mm,

Shut height : 435 mm,

Lower knockout : Stroke : 90 mm,

Capacity : 200 tons,

Upper knockout : Stroke : 10 mm,

Capacity : 63 tons,

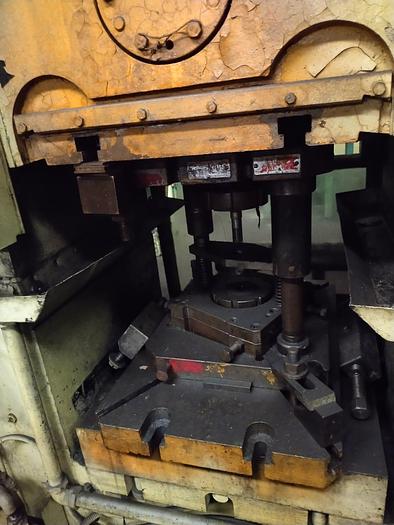

Bed dimensions : 630 x 630 mm,

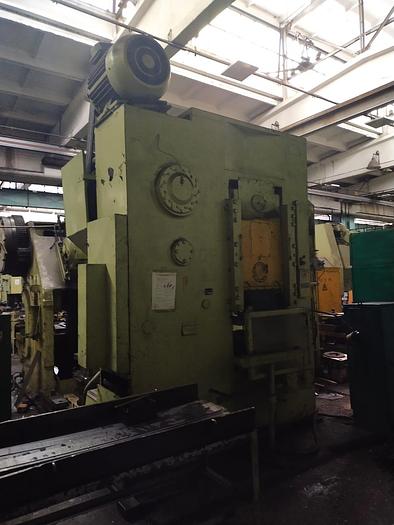

Machine dimensions : 2220 x 1490 x 3622 mm,

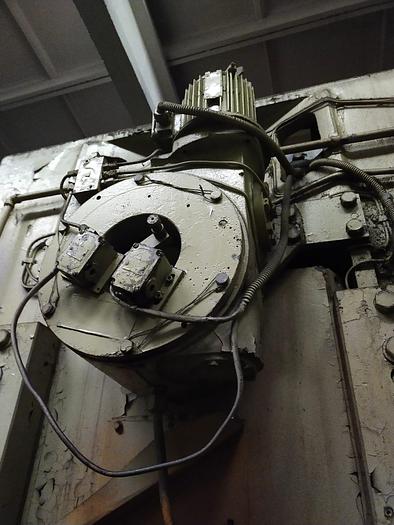

Main drive motor power : 33.5 kW,

Height above floor level : 3622 mm,

Machine Weight : 12.1 tons.
