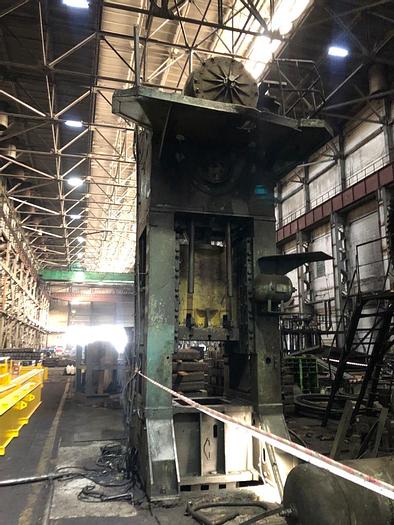

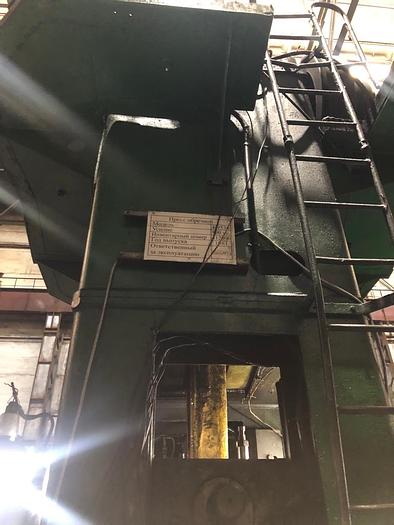

Press Trimming K9536 TMP Voronezh Russia
![Used Press Trimming K9536 TMP Voronezh Russia](https://i.machineryhost.com/51c508a5118968b8c083438878dd582b/large-used-press-trimming-k9536-tmp-voronezh-russia.jpg)
Specifications
Manufacturer | TMP Voronezh Russia |
Model | K9536 |
Year | 1981 |
Condition | Used |
Stock Number | MA1914 |
Item condition | Good condition |
Capacity tons | 400 |
Description
Capacity : 400 tons,
Ram stroke : 400 mm,
No. of strokes : 25 per min.,
Shut height : 470 mm,
Bolster plate to ram adjustment stroke : 160 mm,

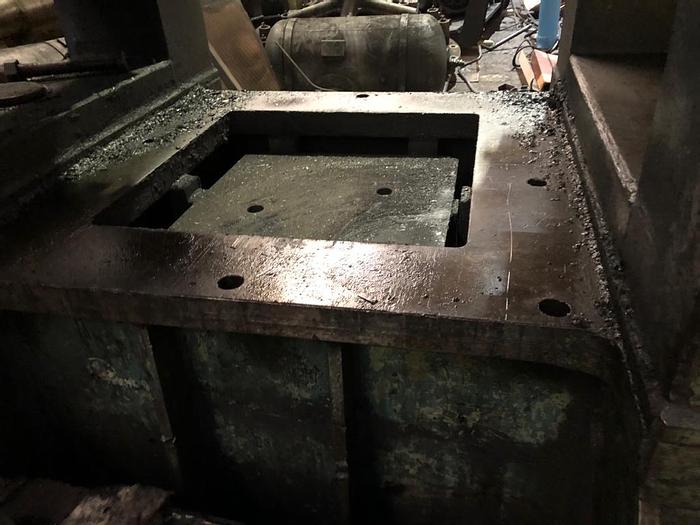

Bed dimensions : 1000 x 1000 mm,
Bed opening dimensions : 630 x 630 mm,
Ram dimensions : 800 x 800 mm,
Bolster plate thickness : 160 mm,
Main drive motor power : 40 kW,
Overall dimensions : floor space 3410 x 3140 mm,
Height above floor level : 5940 mm,
Mass approx. : 36 tons.
