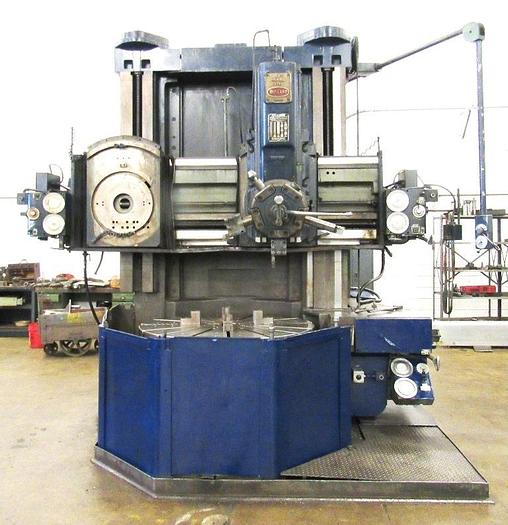

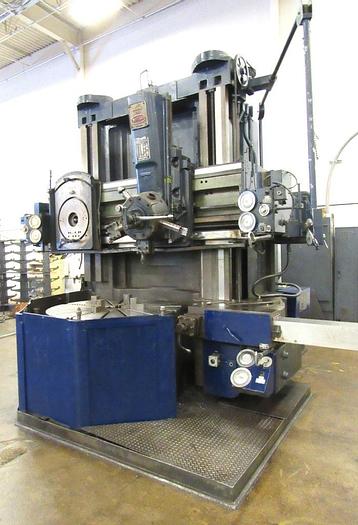

Lathe Vertical Turning Bullard Dynatrol

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerBullard
ModelDynatrol
ConditionUsed
Stock NumberMA1916
Item conditionGood condition
Capacity tons1400

Description

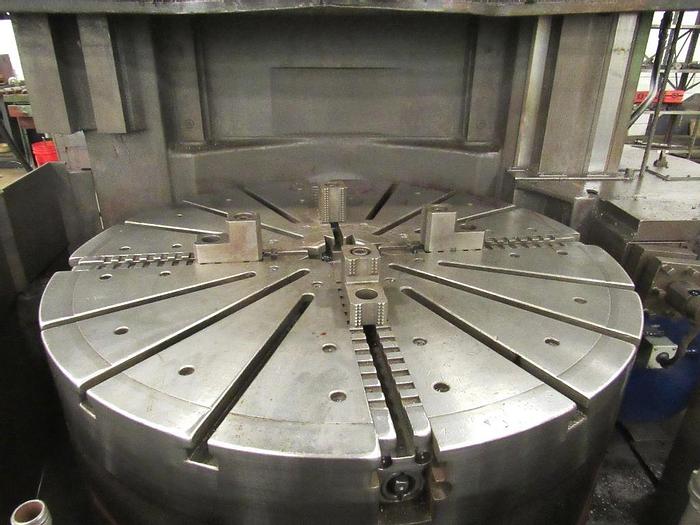

Table Size: 1400 mm,

4-Jaw with (4) Hard Reversible Top Jaws

Maximum Swing Side Head Above Table: 1550 mm,

Maximum Swing Side Head Below Table: 1650 mm,

Maximum Height Under Turret: 1300 mm,

Rail Adjustment: 875 mm

Turret Head Swivel: 30 Degrees

Turret Head Travel Left of Center Line: 850 mm,

Turret Head Travel Right of Centerline: 775 mm

Turret Head Travel Vertical: 650 mm

Left Head, Some Ram Head Carriage and Controls are There BUT

Many Parts are MISSING

Left Head Slide Ram is MISSING

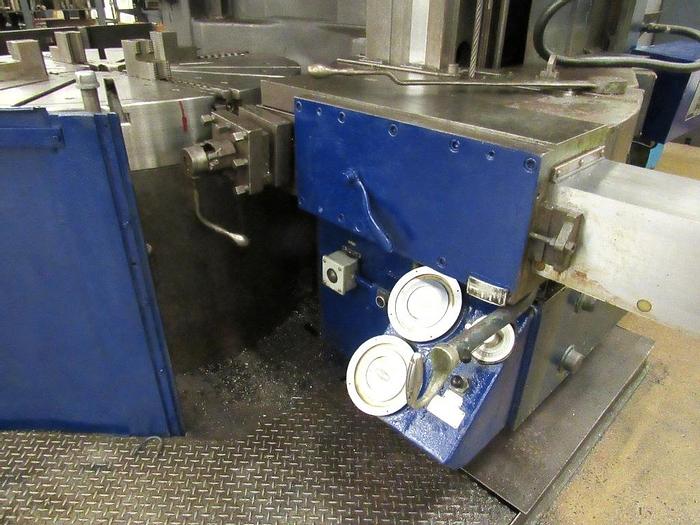

Side Head Travel Vertical: 947 mm

Side Head Travel In & Out: 565 mm

Table Height: 925 mm,

Table Speed: 7 to 250 RPM

Feeds: .001 to .250 IPM

Rapid Traverse: 120 IPM

English Threads TPI: 2 to 32

Metric Threads: 1 to 7 MM

English Drum Scoring TPI: 1/4 to 1-3/4

Metric Drum Scoring: 8 to 44 MM


EQUIPPED WITH:

TDA Attachment for Angle Turning, English and Metric Threading and Drum Scoring

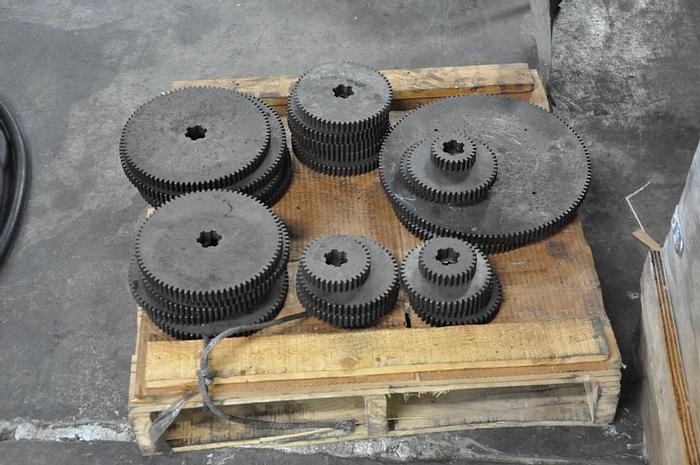

(27) Assorted Change Gears for TDA

Rail and Side Head Feed Features: Rapid – Creep – Neutral - Feed

Hardened Chrome Ways on Rail and Vertical for Side Head

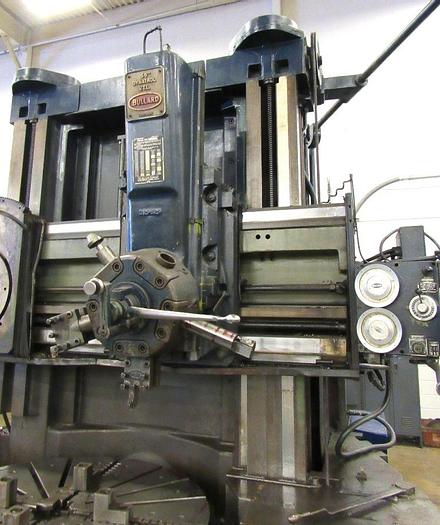

5-Position Rail Turret Head with Manual Indexing

4-Position Turret Type Side Head Tool Holder with Manual Indexing

Pendant Control for Table Speeds and Clutch Engagement Only

Flush Floor Design

NO Chuck Wrench

NO Chip / Coolant Pan as Seen in the Pictures

Motor and Belt Guarding

(3) 3-Sided Tool Holders, (1) Boring Bar and (1) Bull Nose Center

3/4 HP Coolant Pump Motor

75 HP Main Motor, Wired for 3 Phase, 60 Hz, 220 / 440 Volts

Motor Mount Frame Has Belt Tensioning Adjustment and is Bolted to the Chip Pan


Overall Dimensions: 3600 mm LR x 2975 mm FB (motor removed) x 3624 mm High x 71,600 Lbs. (machine only no motor or pan)

Chip Pan with Motor Attached: 3000 x 3900 x 2600 mm High with assembled motor and electrical conduit
