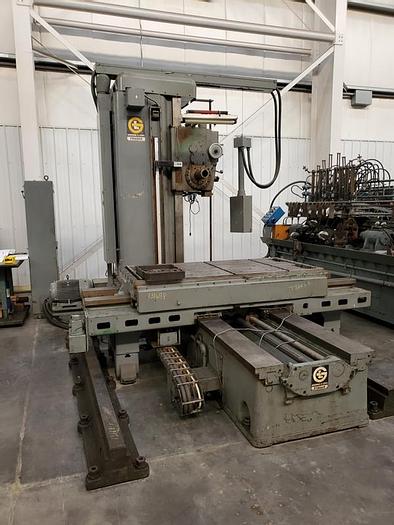

Borer Horizontal Table Type 70A-DP4-T Fraser Giddings & Lewis

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerGiddings & Lewis
Model70A-DP4-T Fraser
Year1969
ConditionUsed
Stock NumberMA1917
Item conditionGood Condition
Capacity tons100 mm

Description

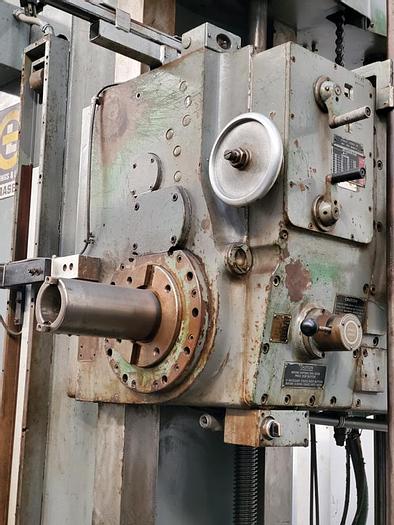

Spindle size : 100 mm,

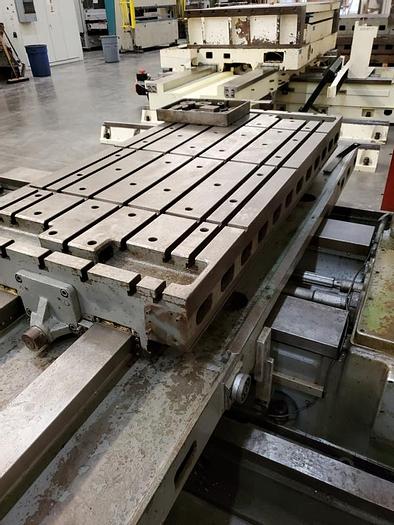

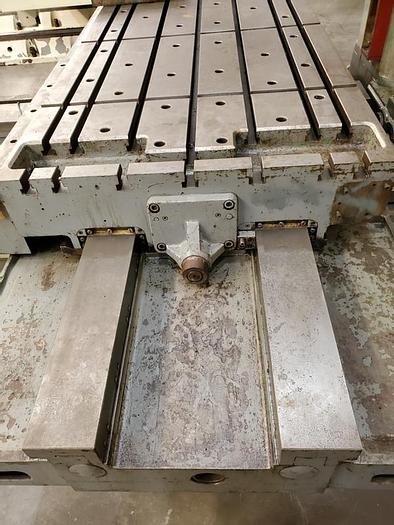

Table Size : 900 x 1850 mm, with (7) 13/16" Tee Slots

& (3) 3/4" Key Slots

Table Travel : Approx. 1800 mm ,

Saddle Travel : Approx. 1500 mm,

Head Vertical Travel : 1375 mm,

Spindle Travel : 700 mm,

Spindle Speeds : 10 to 1300 RPM

Spindle Taper : #50 with Power Draw Bolt

Spindle Feeds : .002 to .250 TPR

Milling Feeds : .040 to 120 IPM

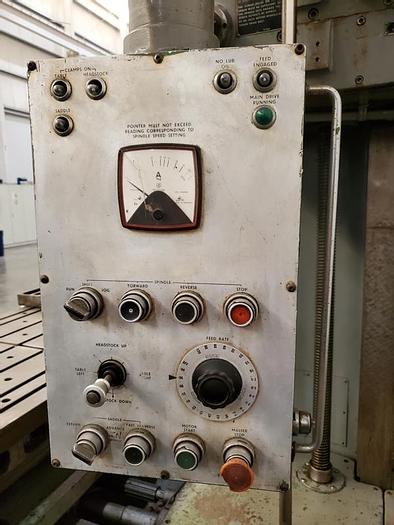

Pendant Control

(2) Floor Mounted Table Outrigger Supports : 2775 L x 350 W x 215 mm H

Hard Bed & Table Ways

Soft Vertical Ways

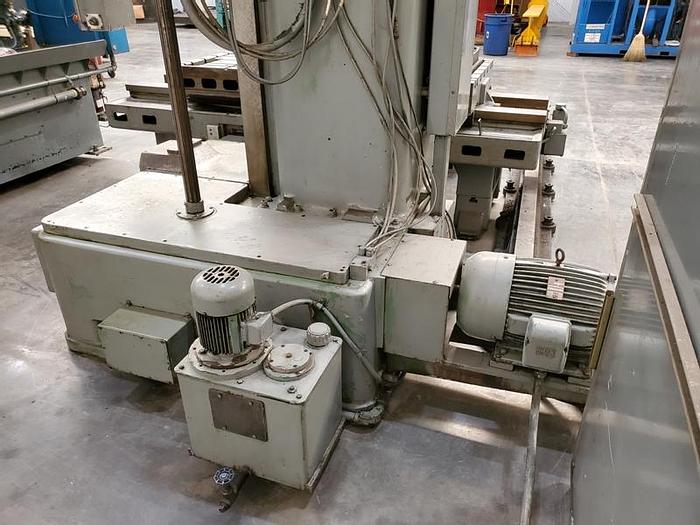

20 HP Main Motor, 3 Phase, 50 Cycle, 440 Volts

1-1/2 HP Hydraulic Pump Motor, 3 Phase, 50 Cycle, 440 Volts


Overall Machine Size : 5000 mm Long x 2200 mm Wide (Table & Saddle Removed),

3175 mm Wide (Fully Assembled) x 3200 mm High,

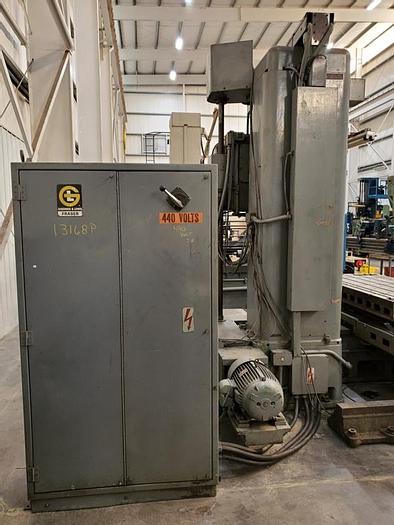

Electrical Cabinet : 1100 mm Long x 375 mm Wide x 1875 mm High,

Total Machine Weight : 11.75 tons.
