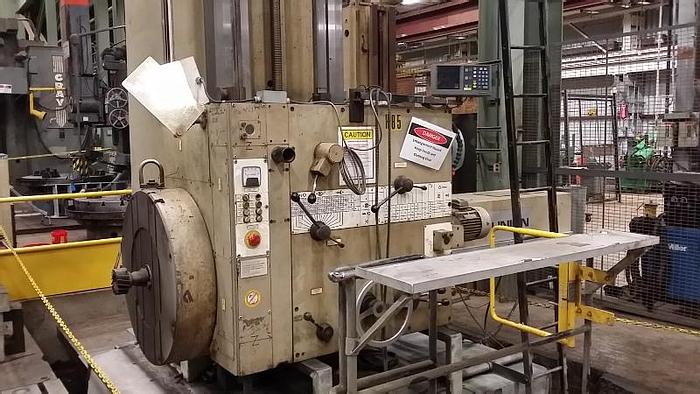

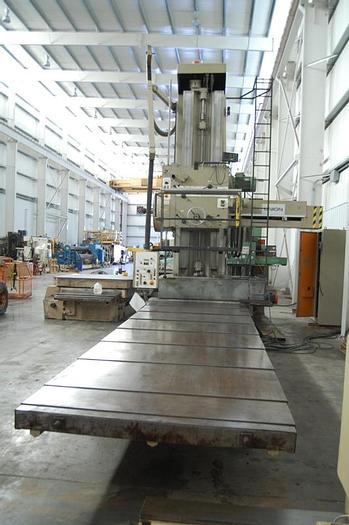

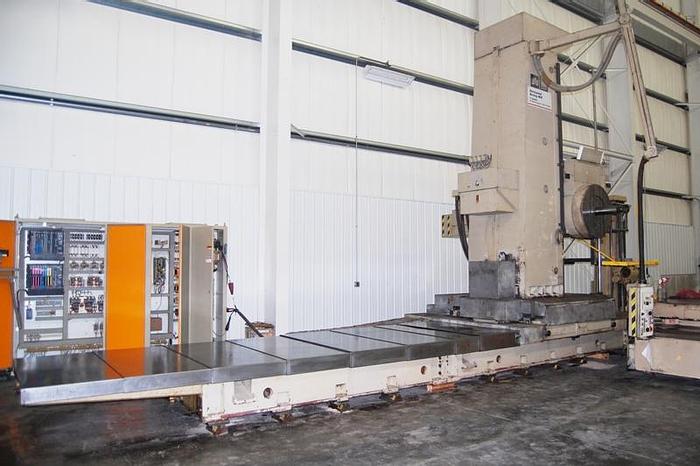

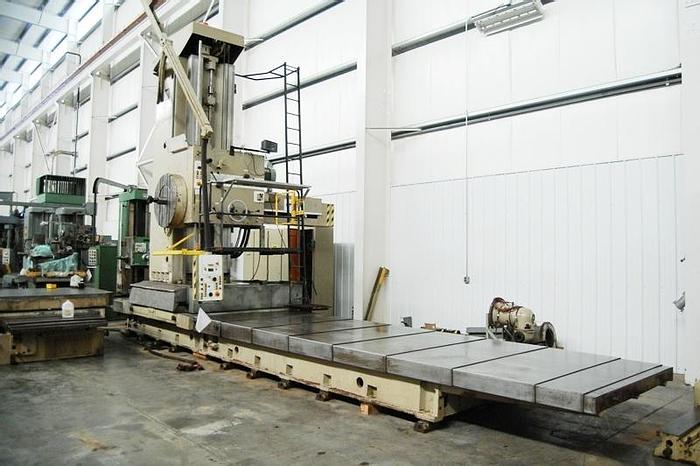

Borer Horizontal Floor Type BFP 130/6 Union

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerWMW Union ,Germany
ModelBFP 130/6
Year1980
ConditionUsed
Stock NumberMA1919
Item conditionGood Condition
Capacity tons125 mm

Description

Spindle size : 125 mm,

Column Longitudinal Travel : 5500 mm, Rack & Pinion Driven,

Head Vertical Travel : 2450 mm, Driven by Ball Screw & Fanuc Servo Motor,

Column Cross Travel: 400 mm, Driven by Ball Screw & Fanuc Servo Motor,

Spindle Travel : 1000 mm,

(27) Spindle Speeds : 4.5 to 900 RPM,

Spindle Taper : #50 with Power Draw Bolt,

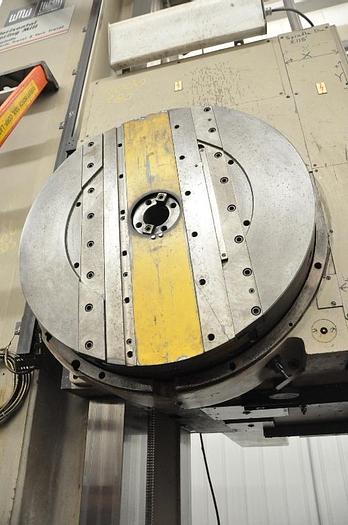

Facing Plate Diameter : 850 mm (covers the facing head),

Facing Head Diameter: 800 Diameter,

(18) Facing Head Speed : 4.5 to 180 RPM,

Facing Head Travel : 325 mm,

Spindle Feeds : .03 to 48 MM Per Rev., & .0016 to 2.00 TPR,

(36) Feeds to Head & Column : .024 to 78.7 IPM.


EQUIPPED WITH:

Rapid Traverse

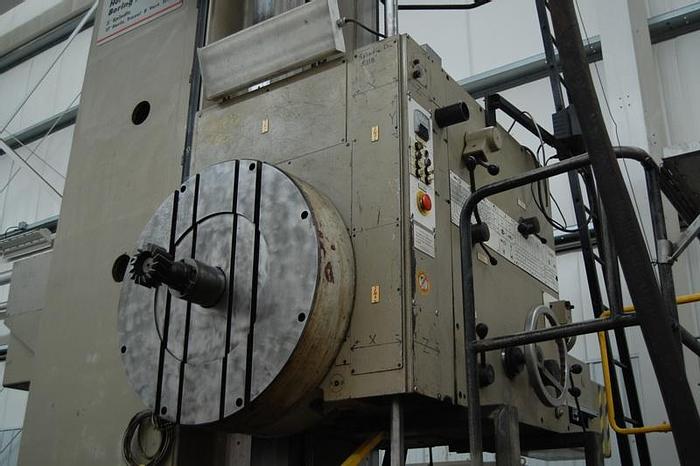

Facing Head

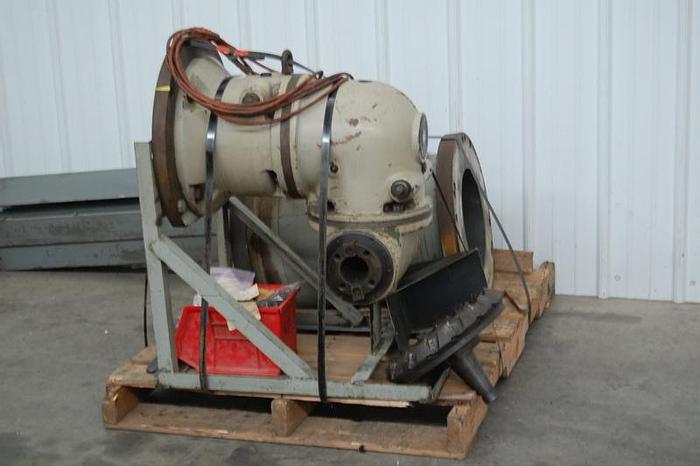

Universal Right Angle Milling Head with 24-1/2" Long Extension

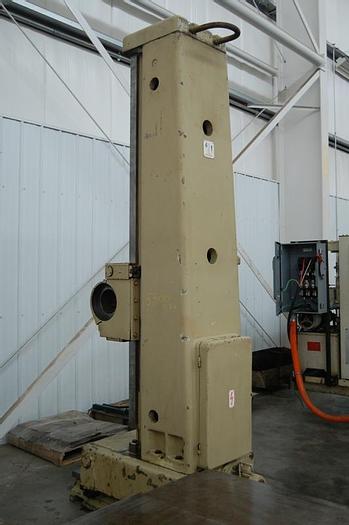

Tailstock with 78" Power Vertical Travel & 39" Power Longitudinal Travel on the Base

3-Axs Acu Rite DRO: Head Vertical Travel, Column Cross Travel & Spindle Travel

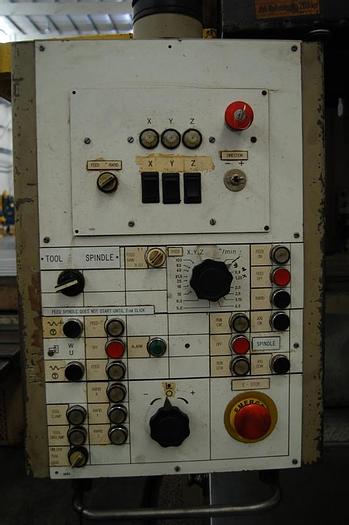

Pendant Control

Sliding Metal Way Covers on the Bed

Wedge Type Leveling Pads

All Hard Ways

Spindle Drive Motor : 18.5 KW, 3/60/480V

Note: In 1989 Upgraded Ball screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel.


SHIPPING SIZES:

Bed & Column Base: 35' L x 104" W x 40" H x 27,000 Lbs.

Head : 128" L x 49" W x 51" H x 11,000 Lbs.

Column : 13' L x 48" W x 68" H x 12,500 Lbs.

Tailstock : 92" L x 36" W x 124" H x 5,500 Lbs.

Skid with Right Angle Attachment & Extension : 4' L x 40" W x 40" H x 1,250 Lbs.

Overall Machine Assembled: 35' L x 170" W x 221" H

Union 78" x 70" Sliding Rotary Table Available at Additional Cost.

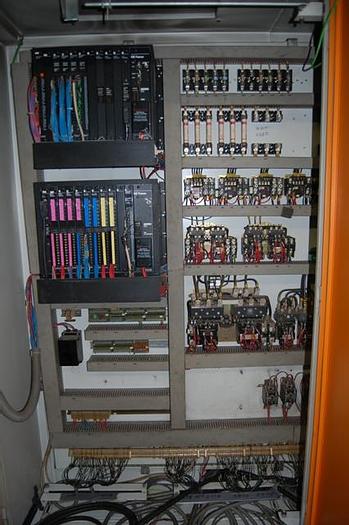

Note: In 1989 Upgraded Ball screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel. Currently we believe there are 2 Fanuc control cards that are NOT functional and thus the machine control does not boot up and that makes the machine not operational. When the machine did work it worked fine. This is NOT a cnc machine. It still uses the manual pendant for operational control.
