Press Trimming Smeral LDO315
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | LDO315 |
| Year | 1982 |
| Condition | Used |
| Stock Number | MA1923 |
| Item condition | Good condition |
| Capacity tons | 315 |
Description
Capacity : 315 tons,
Ram stroke : 200 mm,
Number of stroke per minutes : 44,
Maximum distance ram to table : 900 mm,
Adjustability of ram :20 mm,
Number of utilizable stroke per minutes : 20,

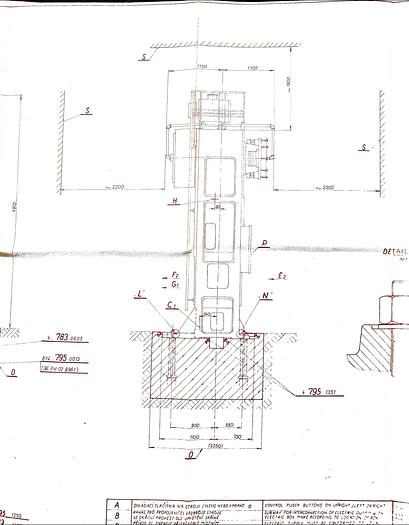

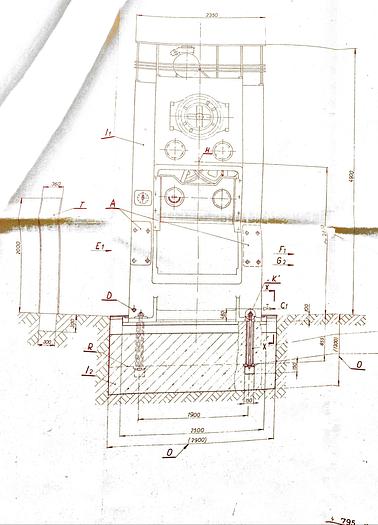

Overall dimension
Width : 2300 mm,
Length : 2350 mm
Height : 4900 mm,
Height of press above floor : 4800 m,,
Total press weight : 27 tons,
Total press weight with standard packing : 27,800 kg,
Total press weight with seaworthy packing : 29,000 kg,
Operating voltage of el. motor : 380 V,
Operating frequency : 50 Hz,
Total power required by press : 30 kw,
Operating pressure of air : 0.55 MPa
Total consumption of drawn -in air per stroke 60 liters/stroke
Fated capacity : 3150 kN,
Rated capacity available on working path in front of bottom reversing doint : 8 mm,
Clear width below guideways : 1400 mm,

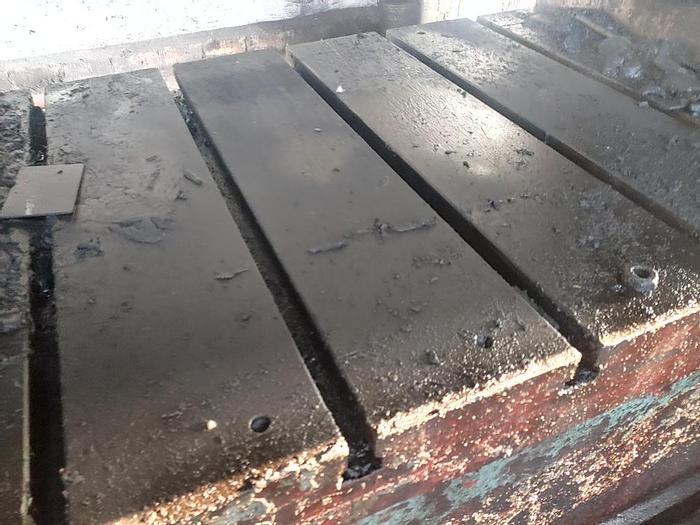

Working area of table (width x length ) : 1380 x 950 mm,
Working area of ram (width x length ): 1250 x 900
Lateral opines (height x width) : 520 x 420 mm,
Height of press above floor : 4800 mm,
Motor output : 30 kw,
Press weight : 27 tons,
Height of bolster plate : 200 mm,

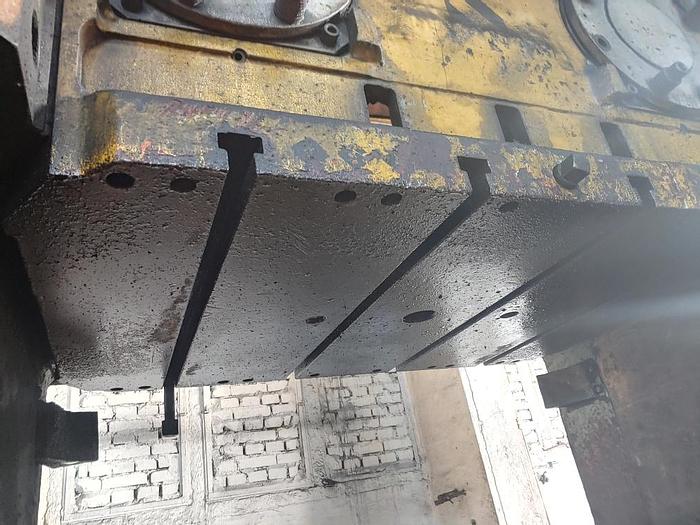

Height of ram plate : 200 mm,
Operating pressure of clutch : 0.45 MPa,
Consumption of drawn-in air one stroke :70 liters,
Height of tool table : 200 mm
