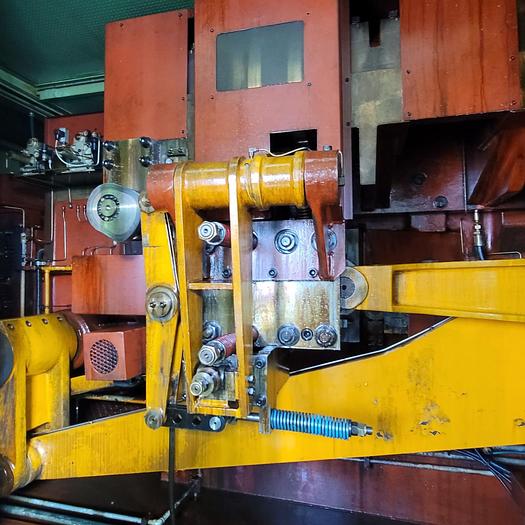

Part Former Cold Sakamura HPF-550SS

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSakamura
ModelHPF-550SS
Year2000
ConditionUsed
Stock NumberMA1928
Item conditionGood working condition
Capacity tons550

Description

Station : 5 Stations,

Capacity : 550 tons,

Nut size (M) : 16 mm,

Forging dia : 28 (24AF) mm,

Oupen up dia : 40 mm,

Forging load : 300.000 kgf,

Cut-off dia - 27 (24) mm,

Cut-off length : 10 - 80 mm,

Cut-off knife size dia : 80 X 32 mm,

Cut-off quill size dia : 75 X 100 mm,

Punch dia : 100 X 233 mm,

Die dia : 120 X 220 mm,

Center distance between dies : 138 mm,

P. K. O. Stroke : 370 (45) mm,

K. O. Stroke : H40 (100) mm,

Ram Stroke : 230 mm,

Crank Shaft dia : 380 mm,

Max APM : 130 pcs/min,

Main Motor : 75 Kw,

Machine Dimensions (L x W x H) : 6100 x 3600 x 2000 mm,

Machine weight : 55 tons,

Electric Capacity : 100 KVA,

Air Capacity : 4.0 L/J,

Lubrication oil capacity & coolant oil capacity : 1000 L,

Lubrication pump capacity : 0.75 Kw,

Coolant pump capacity : 0.75 Kw.


Standard Accessories :

1-set of clutch and brake device,

1-set of Korea - make elec. equipment with motor,

1-set of coolant and lub. oiling system,

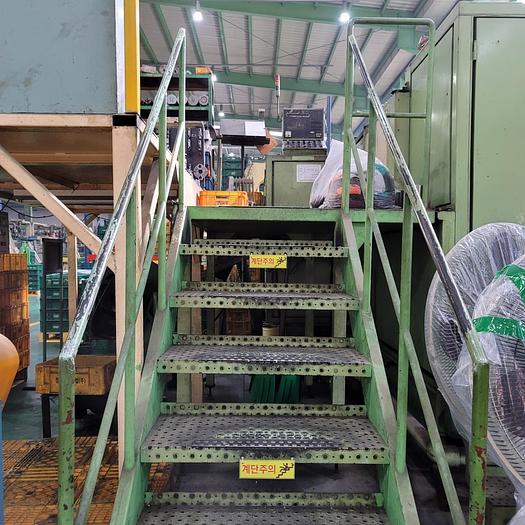

1-set of operator's platform,

1-set of had tools,

1-set each of piece / lot counter,

1-set of punch wedge adjust mechanical digital indicator


Standard electrical safety detect Devices :

-Air pressure shortage detector

-Oil shortage detector

-Forging area guard opening detector

-Material and detector

-K. O. Safety pin breakage detector

-P. K. O safety pin breakage detector

-Short feed detector

-Motor overload detector


Quick tool change system :

-Quill & knife one touch change

-Feed roll one touch change

-Punch lock pin system

-Die lock pin system


Quick set-up system :

-Feeding amount motor drive adjust

-Stopper motor drive adjust

-K. O Motor drive adjust

-APT chuck system

-Transfer open / close cam hyd' system


Machine Accessories & Motor :

  • Inverter motor (380 V - 75 Kw)

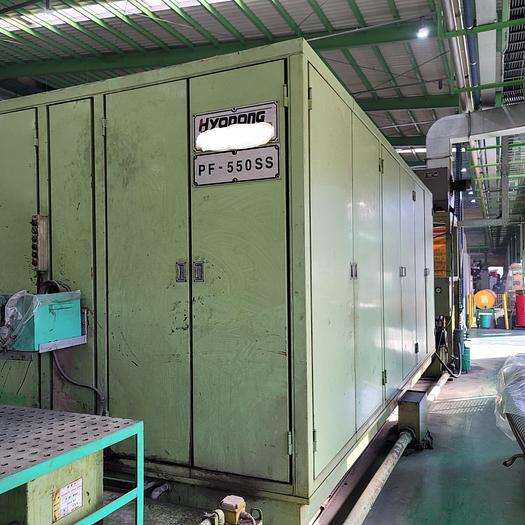

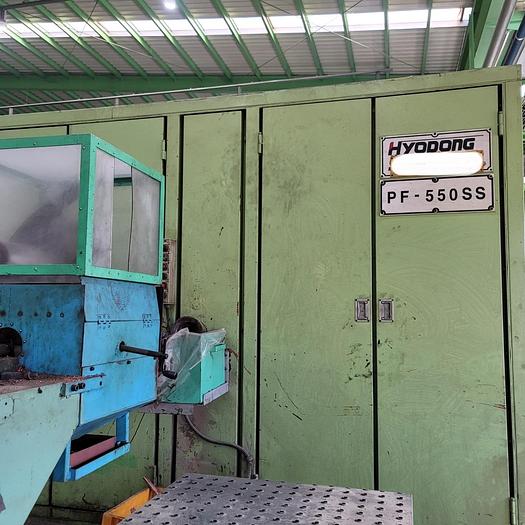

  • Sound proof cover
  • Conveyor for chips & products
  • Uncoiler HU-24
  • Centrifuge for Lub. oil separator

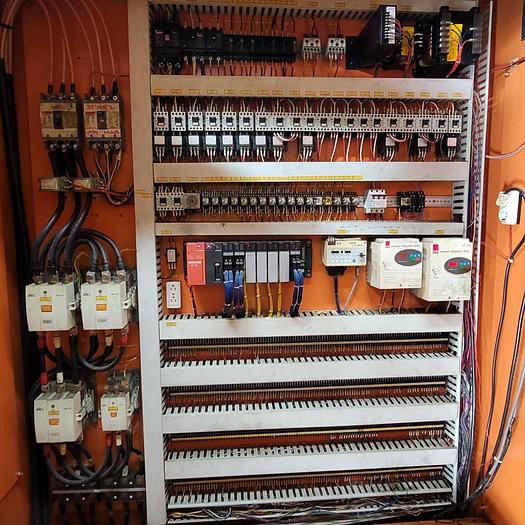

Electrical control device :

-K. O / Feeding / Stopper (50ea Item) - Touch panel display.
