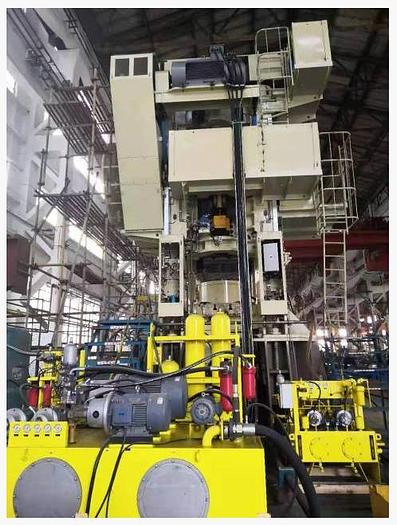

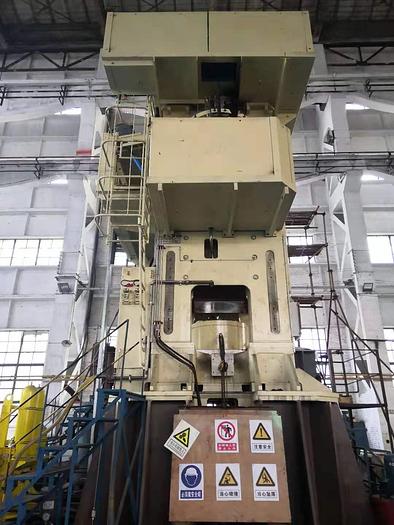

Press Hot Forging KI8044

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerTMP Voronezh Russia
ModelKI8044
ConditionNew
Stock NumberMA1932
Item conditionBrand New
Capacity tons2500

Description

Capacity : 2500 tons,

Slide stroke : 350 mm,

Continuous stroke per minute : 70 N°,

Connecting rod : 2 N°,

Single stroke per minute : 22 N°,

Die space : 1000 mm,

Die space adjustment in the ram : 12 mm,

Table dimensions :-

L to R : 1500 mm,

F to B : 1500 mm,

Ram dimensions :-

L to R : 1500 mm,

F to B : 1450 mm,

Uprights opening dimensions :-

Width : 950 mm,

Height : 1100 mm,

Hydraulic upper knockout :-

Power : 8 tn,

Stroke : 40 mm,

Pushers : 3 N°,

Distance between pushers : 330 mm,

Hydraulic lower knockout :-

Power : 16 tn,

Stroke : 50/50+100/50 mm,

Pushers : 3 N°,

Distance between pushers : 330 mm,

Main motor power : 132 kW,

Overall dimensions :-

L to R : 6250 mm,

F to B : 4140 mm,

Height above floor level : 7020 mm,

Press Weight : 193 tons.
