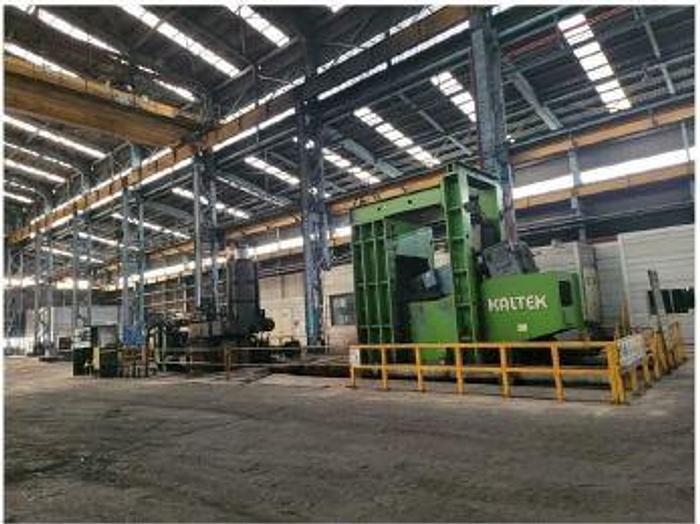

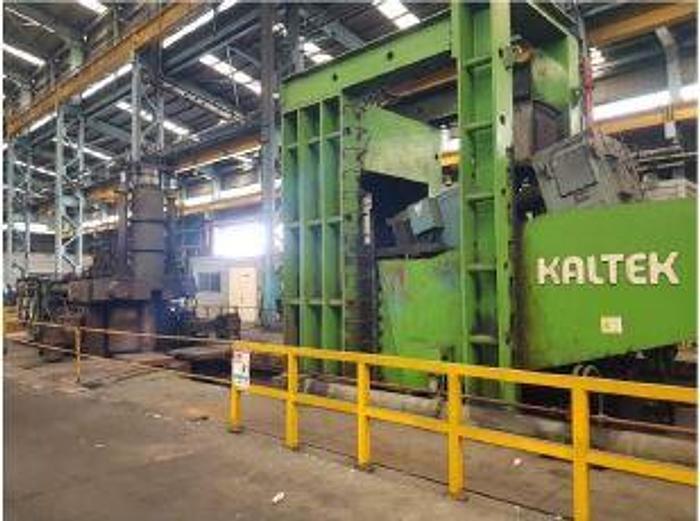

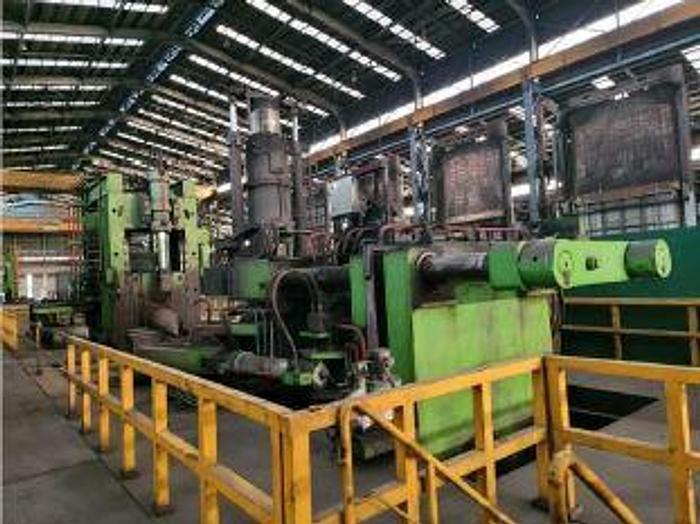

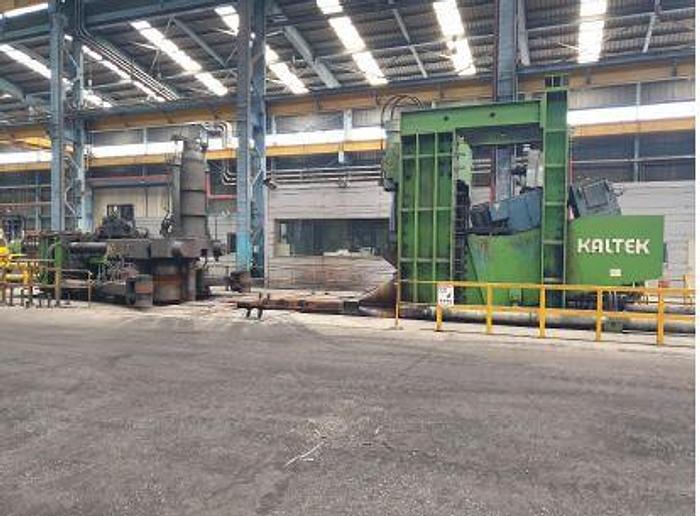

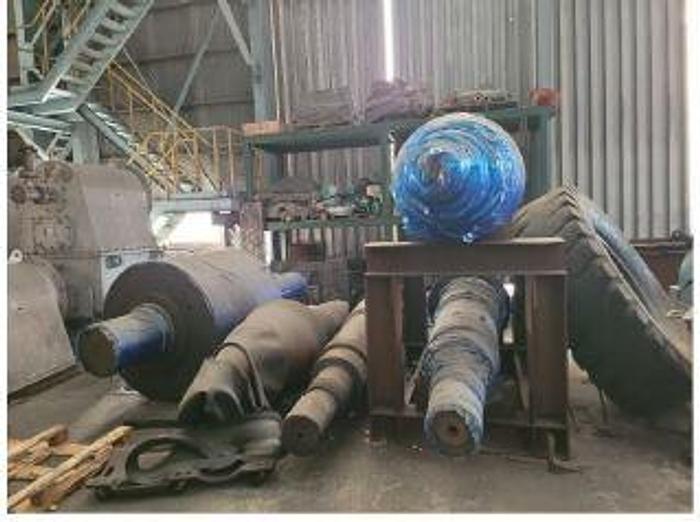

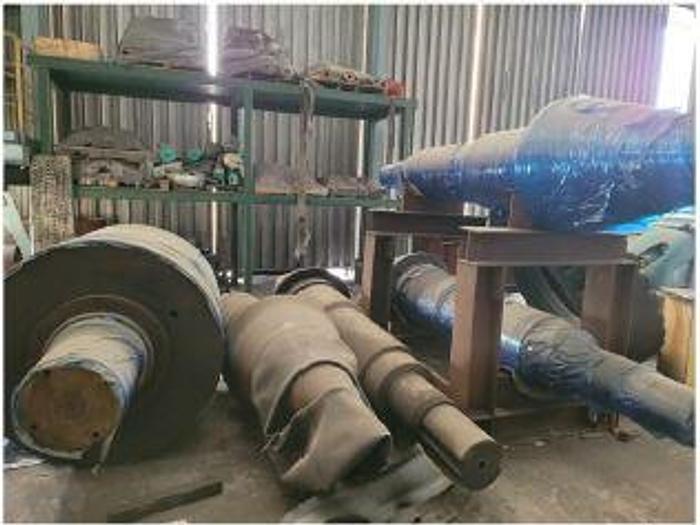

Ring Rolling Machine Kalltek

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerKalltek
ModelH300/V250
Year2008
ConditionUsed
Stock NumberMA1949
Item conditionGood condition
Capacity tons6000

Description

Ring rolling dia : 6000 mm,

Outside dia of finished ring : 1200~6000 mm,

Height of finished of ring blank for : 80~1000 mm,

Mandrel dia : 300 mm,

Heght of ring blank : Max. 1050 mm,

Ratio of wall thickness to height : Max. approx. 3 :1,

Ring weight : Max. approx. 12 tons,

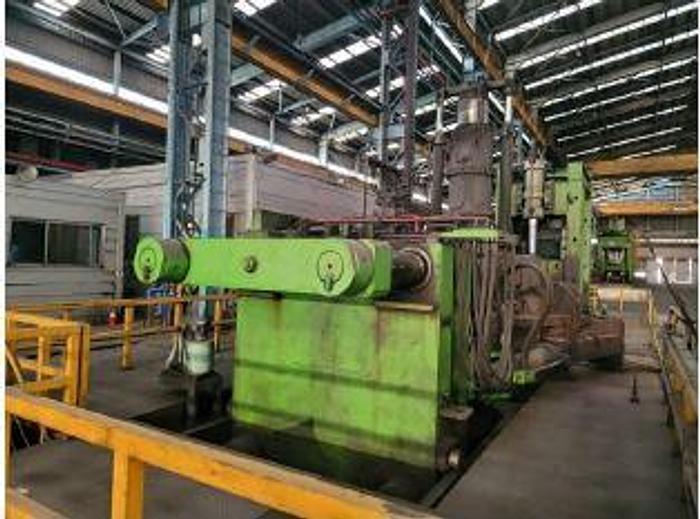

Horizontal Stand :

Rolling force : Max. 300 tons,

Main roll dia : 1200 mm,

No. of revolution of main roll : Max. 30 rpm,

Rolling speed : Max. approx. 1.7 m/sec,

Horizontal stroke of mandrel : 1000 mm,

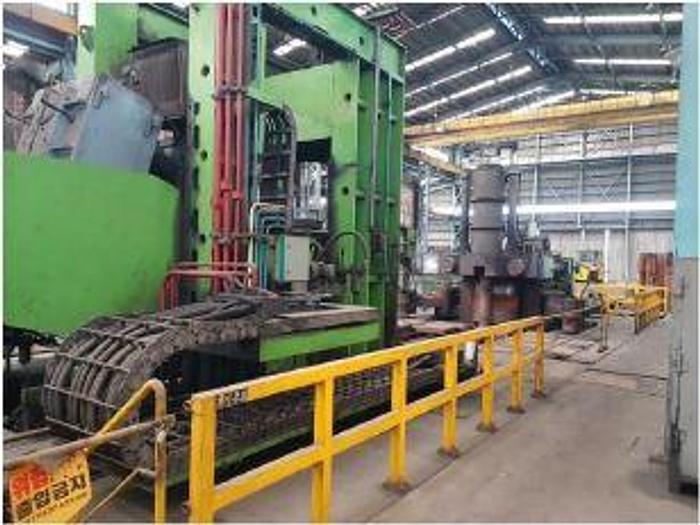

Vertical Stand :

Rolling force : Max. 250 tons,

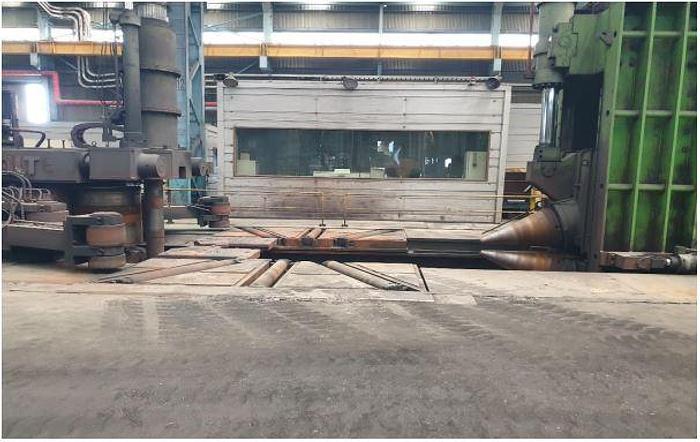

Length of taper rolls theoretical stand : 1400 mm,

Taper cone angle : 35 degrees,

Horizontal stroke of vertical stand : 5400 mm,

Vertical stroke of upper taper roll : 1050 mm,

Max. distance between the taper rolls : 1120 mm,


Driving Unit of Main roll :

Driving Motor (DC-Electro motor)

-Nominal power : 710 kw,

-Armature voltage : 570 V,


Driving gear reducer:

-Nominal power : 710 kw,

-Output speed at Input 1200 rpm : 30 rpm,


Driving Unit of Taper roll :

Driving Motor (DC-Electro motor)

-Nominal power : 710 kw,

-Armature voltage : 570 V,


Driving gear reducer :

-Nominal power : 710 kw,

-Output speed at Input 1200 rpm : 150 rpm,


Driving Motor for Hydraulic Pumps :

Ac-Electro-motor for main pump :

-Nominal power : 90 kw, 4 sets,

-Nominal speed : 1150 rpm,


Ac-Electro-motor for Oil Cooler :

-Nominal power : 3.7 kw, 2 sets,

-Nominal speed : 1750 rpm,


Hydraulic Pumps :

Main Pump : A4V-180, 4sets,

Delivery : 720 I/min,

Pump for Oil Cooler : PVV2-055, 2sets,

Operation Pressure : 210 kg/cm2,


for lubrication of the moveable machine components: Grease Pump : 2 sets,

The roll tools are cooled by water: Pressure : 0.2 kg/cm2,


Electric Equipment :

-Power Supply Unit

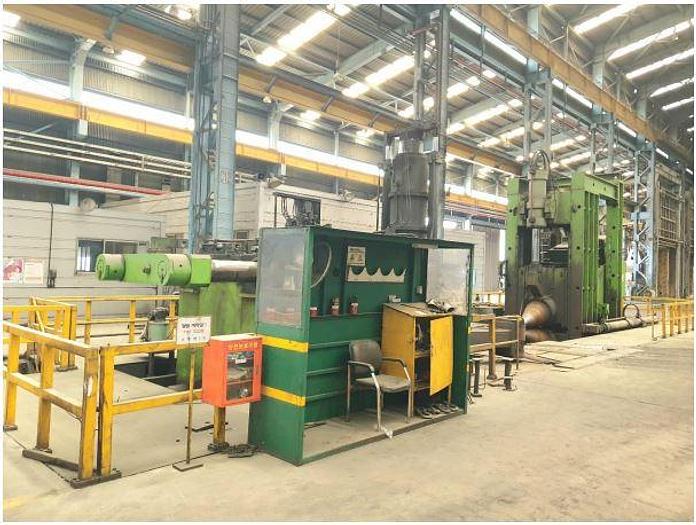

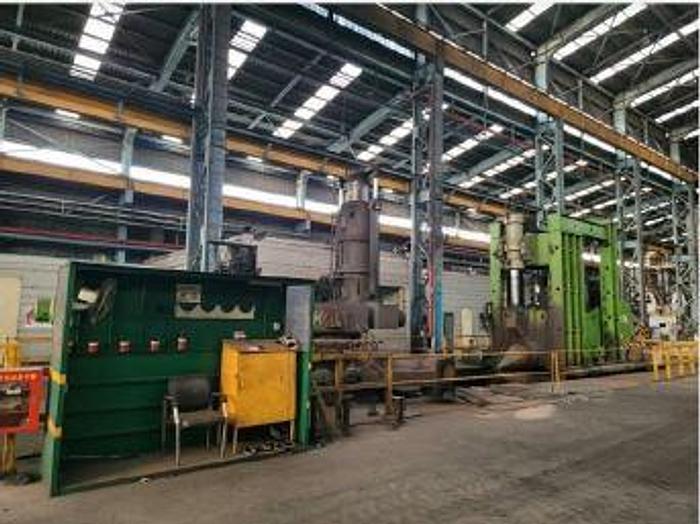

-Control Desk

-Control Cabinet


Control and Operation Function :

-Control functions are realized in the PLC

-Operation for the rolling passes Pressure control


Actual Value Display for the Ring :

-Ring O. D.

-Ring I. D. (Calculated)

-Ring wall Thickness

-Ring Height


Selection of the Final Diameter :

-Ring O. D.

-Ring I. D.
