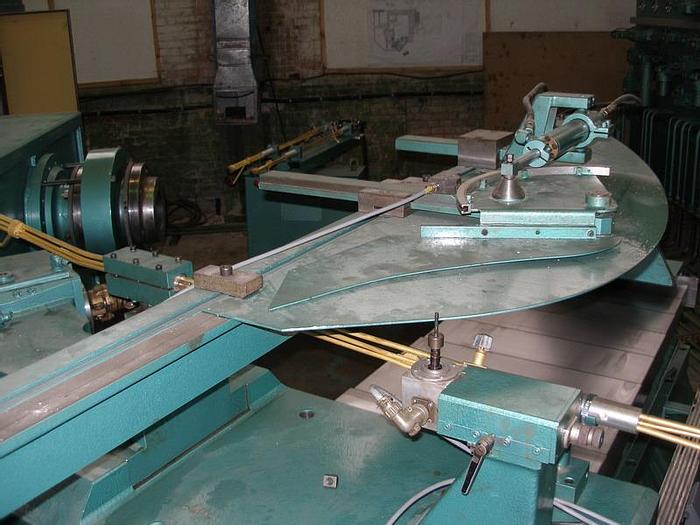

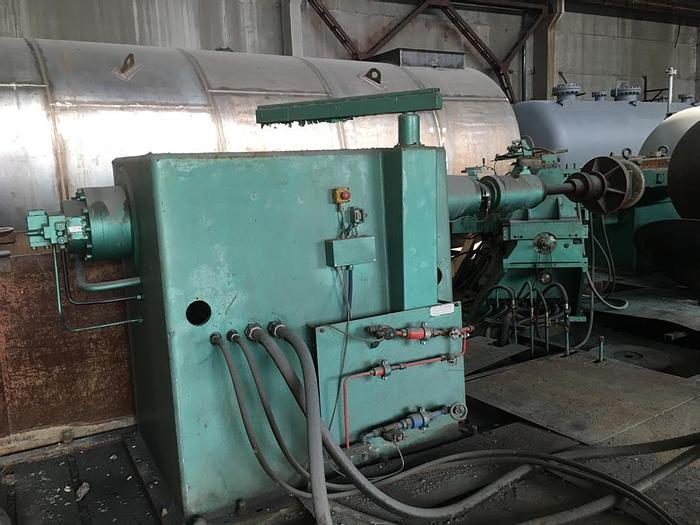

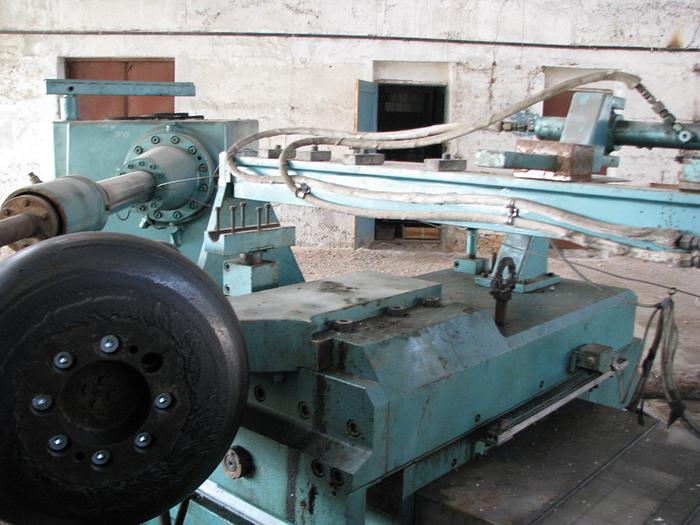

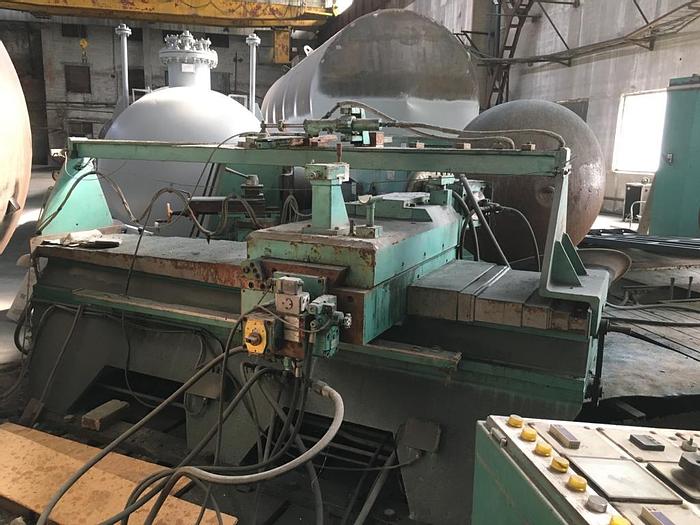

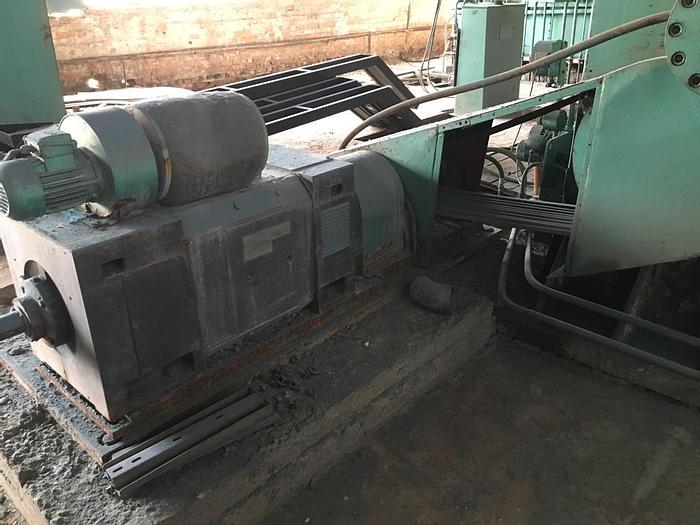

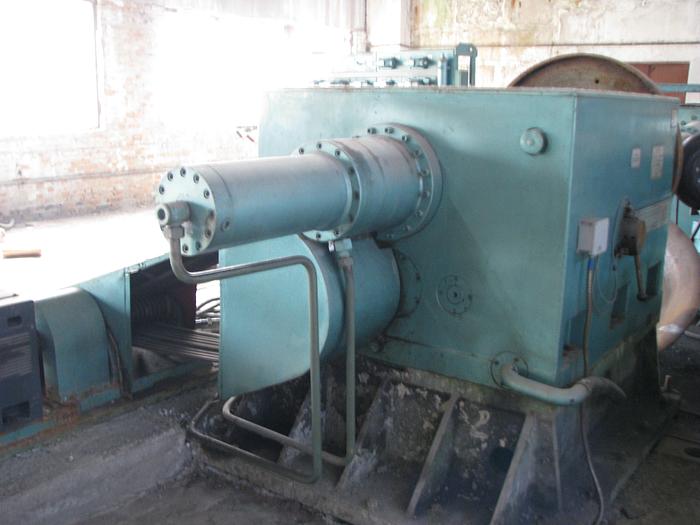

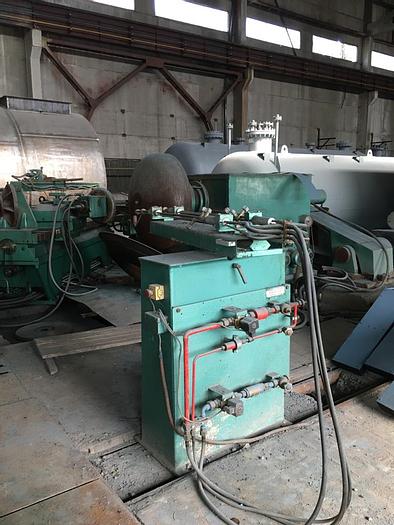

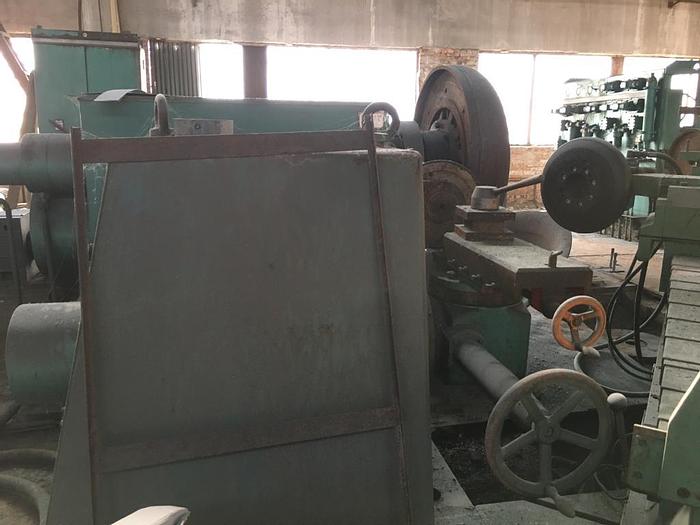

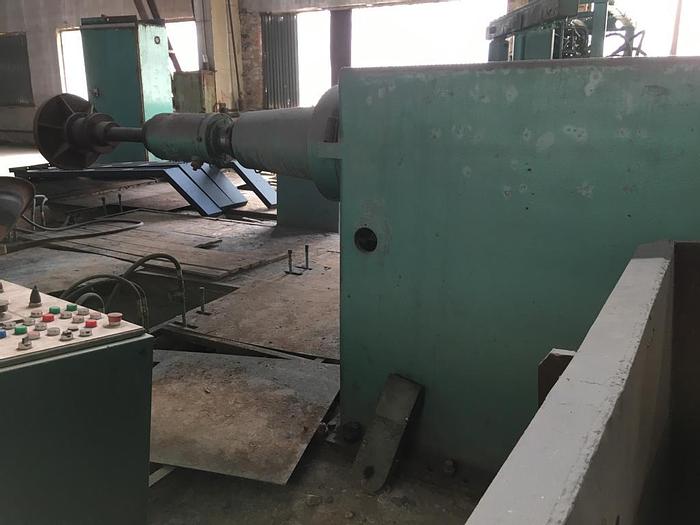

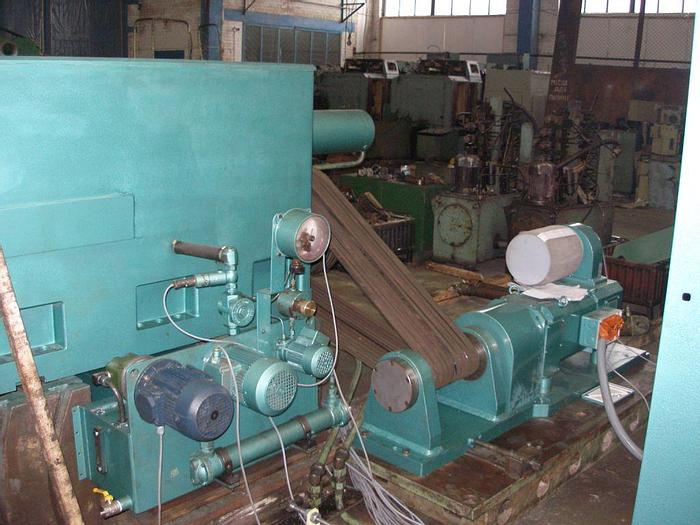

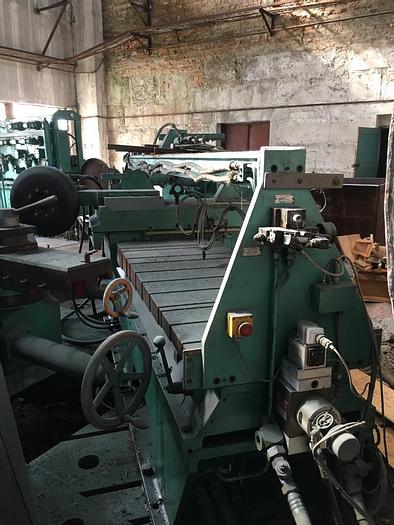

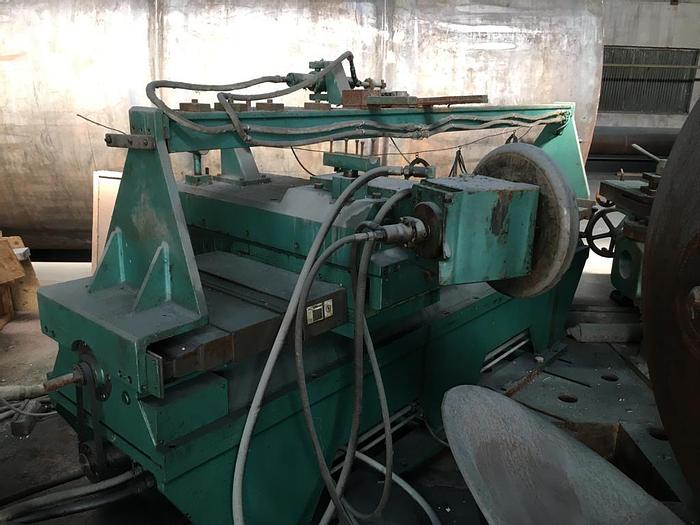

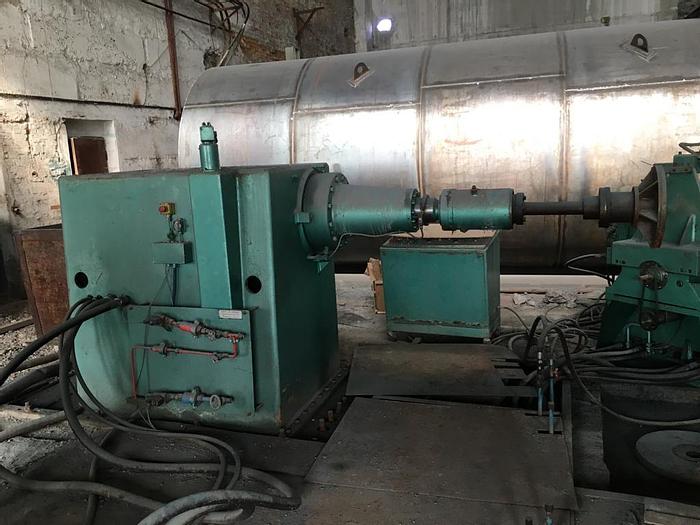

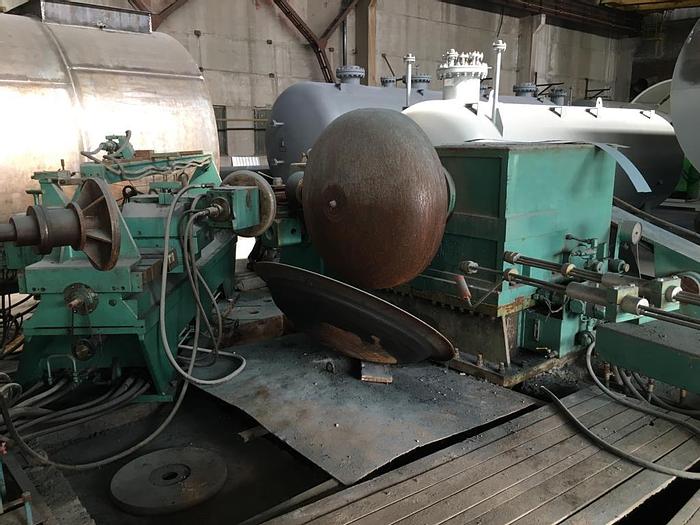

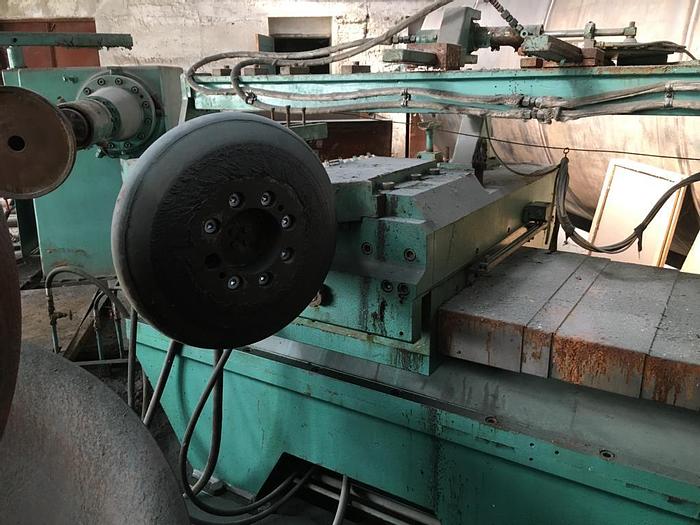

Flow Forming Machine PLB 1800/32

Price

Contact us for price

orCall +91 9920651051

Specifications

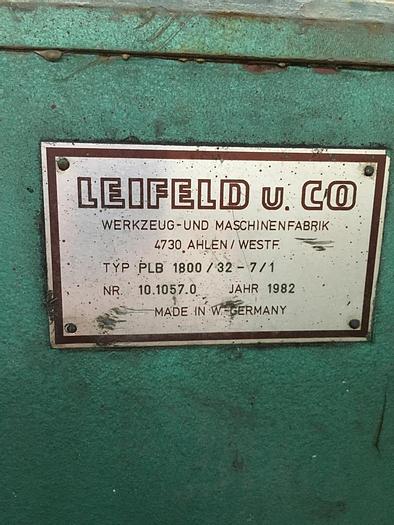

ManufacturerLeifeld Germany
ModelPLB 1800/32
Year1982
ConditionUsed
Stock NumberMA1957
Item conditionGood Condition

Description

Metal Spinning Machine :

Height of the centers before pass : 1200 mm,

Height of the centers in dredging : 2000 mm,

Intercenter distance over pass max : 3200 mm,

Intercenter distance in a hole : 1300 mm,

Scope pintles : 1500 mm,

Clamping pressure of the back grandma max : 200 kN

Longitudinal way of a support : 2100 mm,

Cross way of a support : 500 mm,

Forces of giving of a support along max : 140 kN / Across max : 280 kN

Scope of a pusher max : 400 mm

Driving power max : 90 kW

Speed :

1st step : 2 - 120 min.-1,

2nd step : 3 - 189 min.-1,

3rd step : 5 - 303 min.-1,

Clip of tools of the main spindle shpindelny flange according to DYNES 55022, velich.15

Type of Current : Three-Phase Current,

Working tension : 380 V

Frequency : 50 Hz

The operating tension : 220 V

Main safety lock of the machine : 425 And,

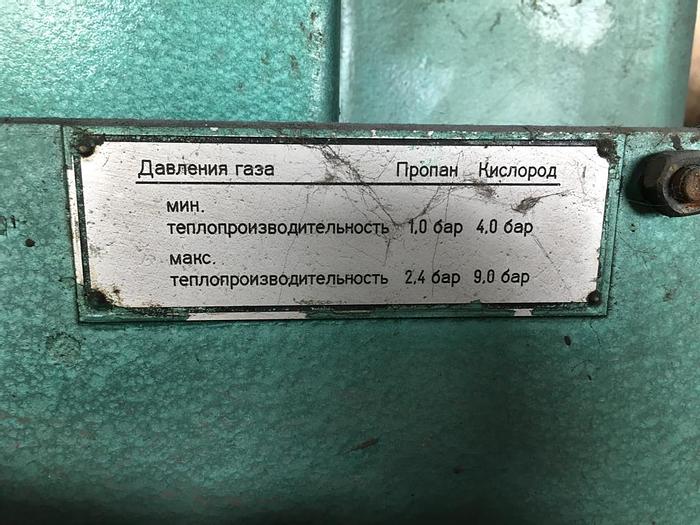

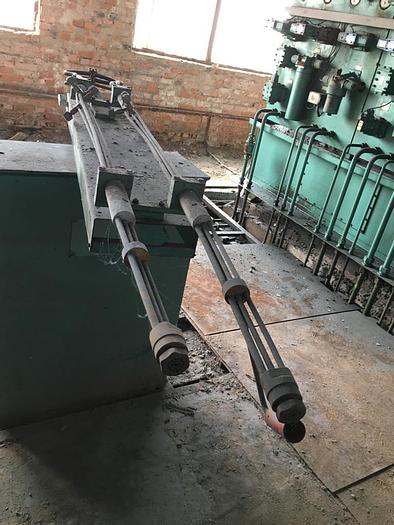

Heating of preparation is carried out Kislorodno - Propane Gas mix.

Weight of a box of a spindle : 7900 kg,

Weight of a support of a box of a spindle : 3000 kg,

The weight of the back grandma with charging of oil : 5000 kg,

Weight of a support of the back grandma : 3000 kg,

Support weight with a prop (2 100 longitudinal scope) : 5500 kg,

Mandrel prop weight with the cut device : 2500 kg,

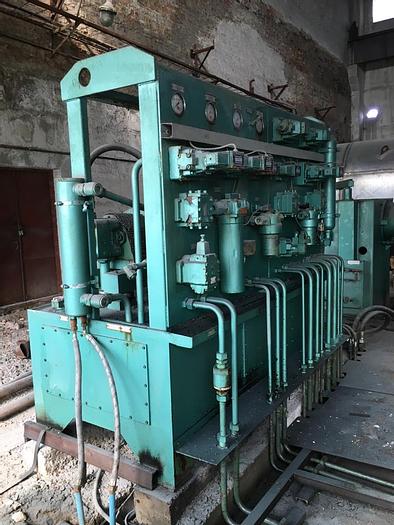

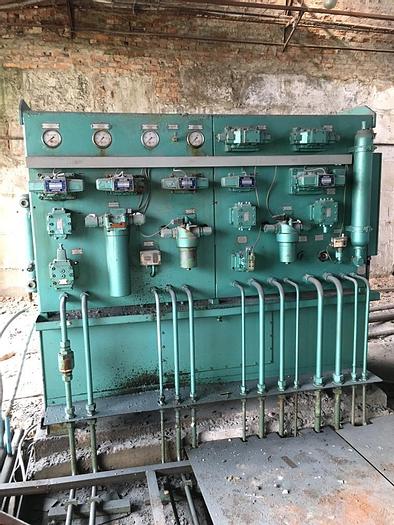

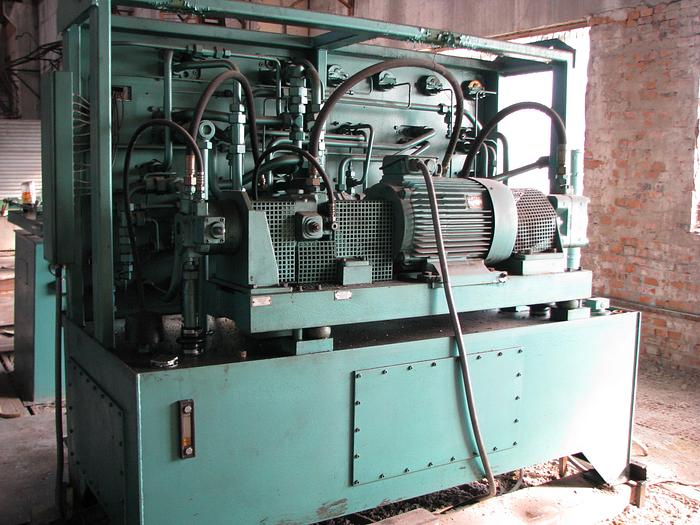

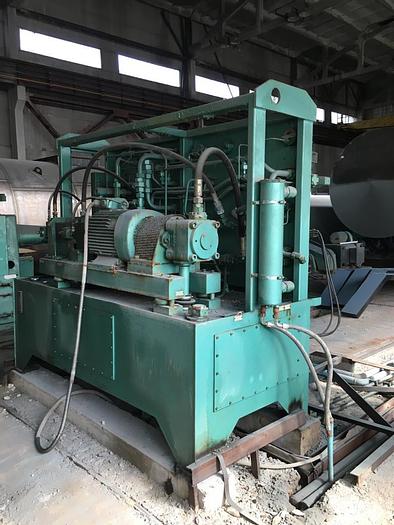

Hydro unit weight, (approximately) : 5000 kg,

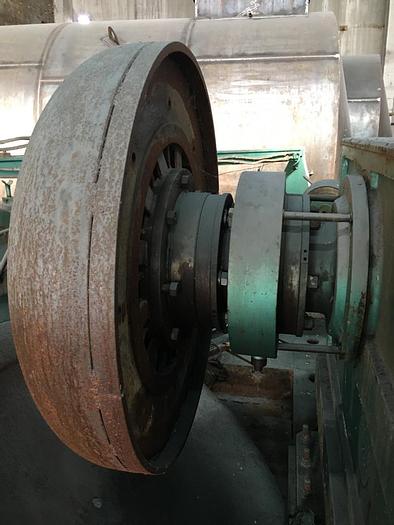

Weight 4 - x working mandrels with a diameter of  3200 mm. (approximately), kg. 4 pieces x 5000 = 20000

Working dimensional place of the machine : 11350 x 9 550 х 500 mm,

General Overhaul : 2005.
