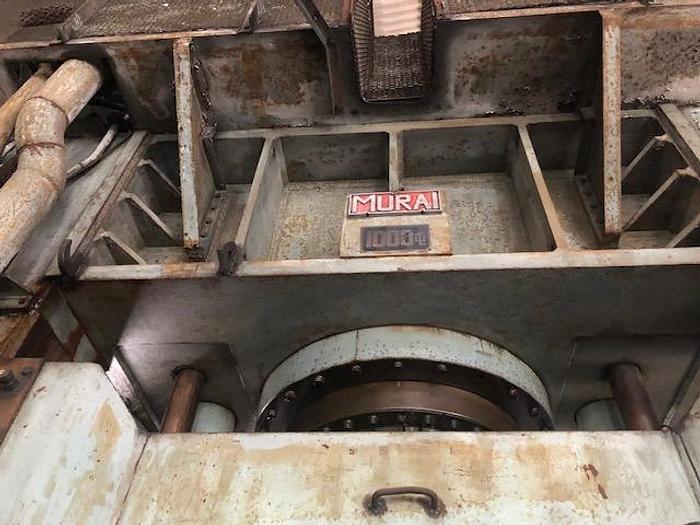

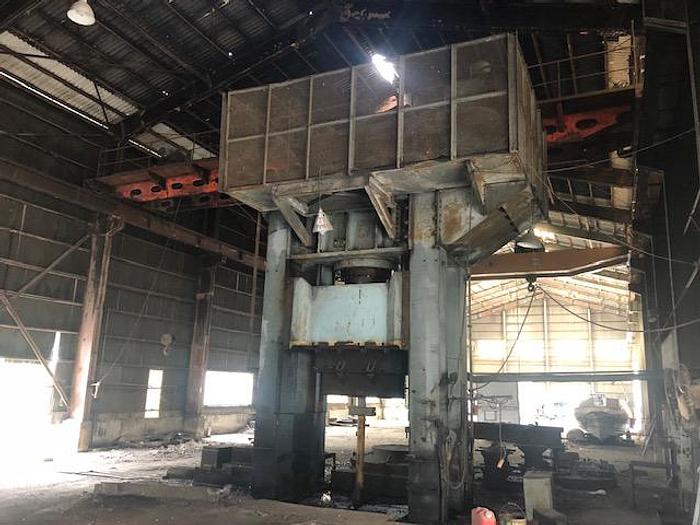

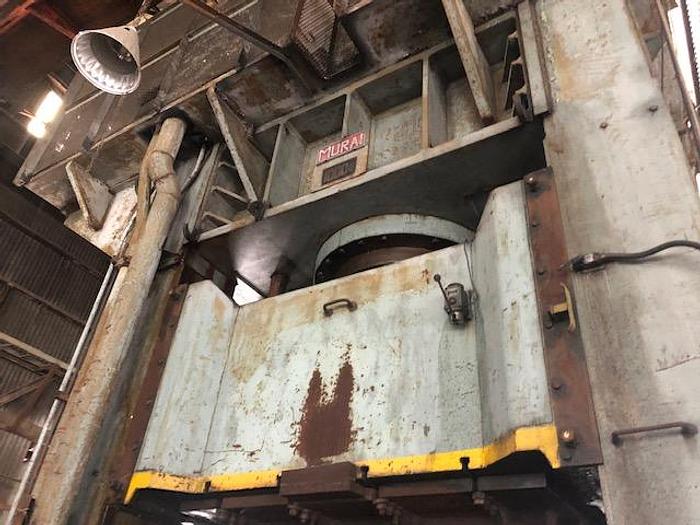

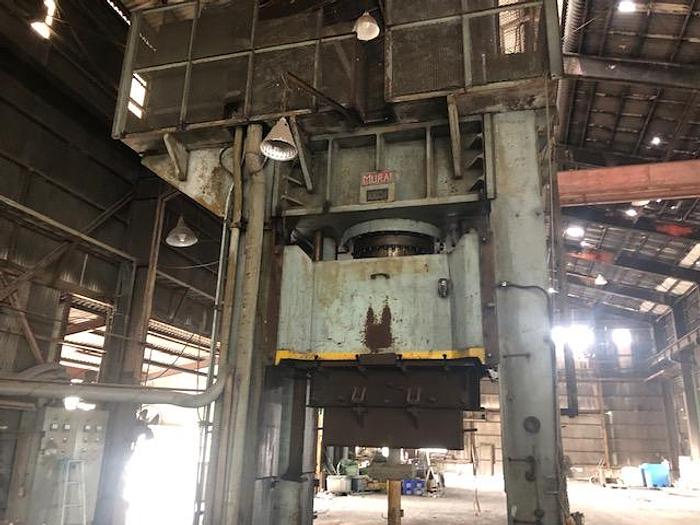

Press Forging Open Die Hydraulic Murai, Japan

Sold

Specifications

ManufacturerMurai, Japan
Year1980
ConditionUsed
Stock NumberMA1964
Item conditionGood condition
Capacity tons1000

Description

Capacity : 1000 tons,

Up force : 98 tons,

Ram diameter : 180 mm ram x 2 pieces,

Stroke : 1300 mm,

Daylight : 2300 mm,

Table : 2000 × 1500 mm,

Pressurization speed : 42 mm/sec,

Elevation speed : 250 mm/sec,

Slide maximum falling speed: 250 mm/sec,

Inertial descent : 15 mm,

Sudden stop time : 140 mm.s,

Maximum stop time : 150 mm.s,

Working pressure : 194 kg/cm2,

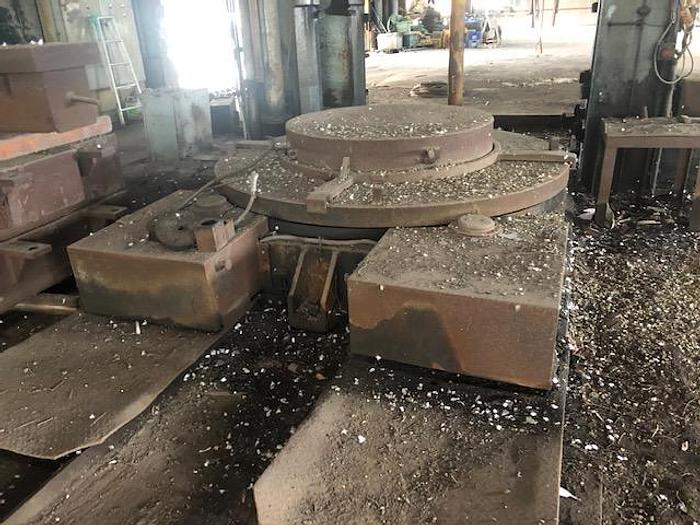

Rotating table diameter : 2200 mm,

Moving table : 2200 x 2300 mm,

Main ram diameter : 800 mm,

cylinder diameter : 160 mm,

Cylinder stroke : 2300 mm,

Cylinder forward speed : 130 mm/s,

Cylinder Retreat Speed : 190 mm/s,

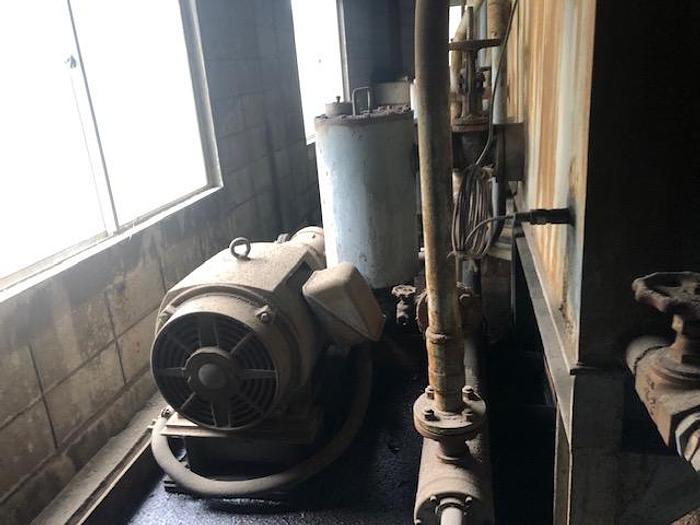

Main motor : 150KW x 2 units + 75KW x 1 unit (440V),

Pump : 468L x 2 units + 225L x 1 unit,

Motor for Pilot, Cooler Moving Table : 45KW,

Operation method : Electronic lever type

Press maximum height from floor : 8150 mm.
