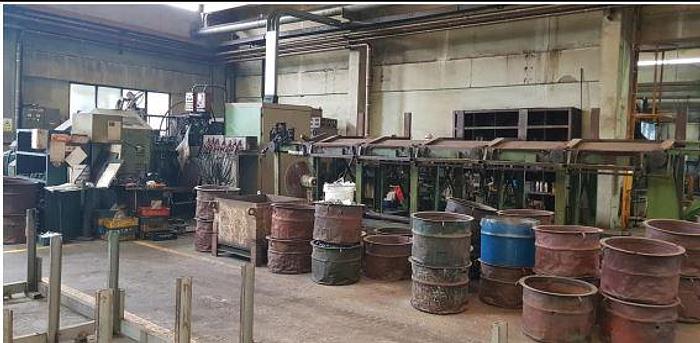

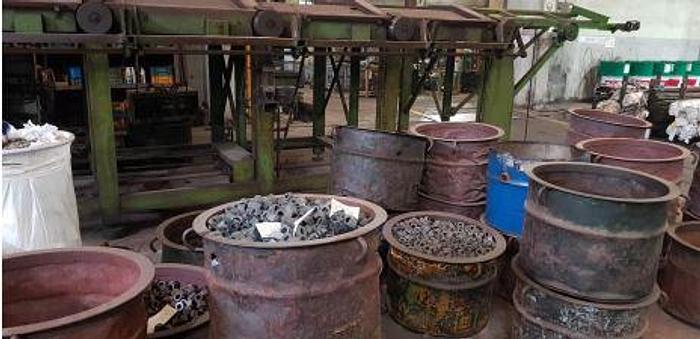

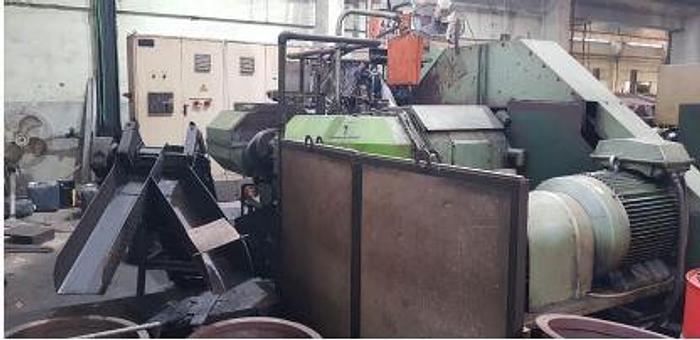

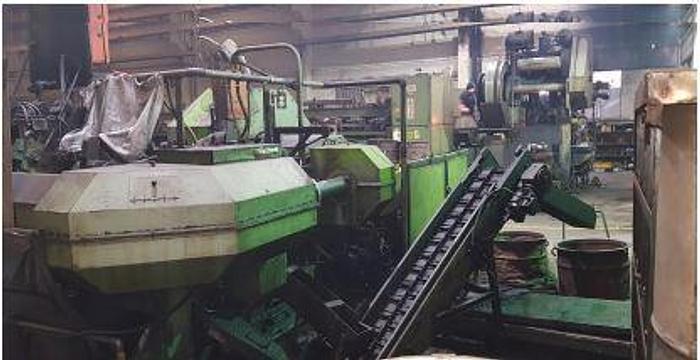

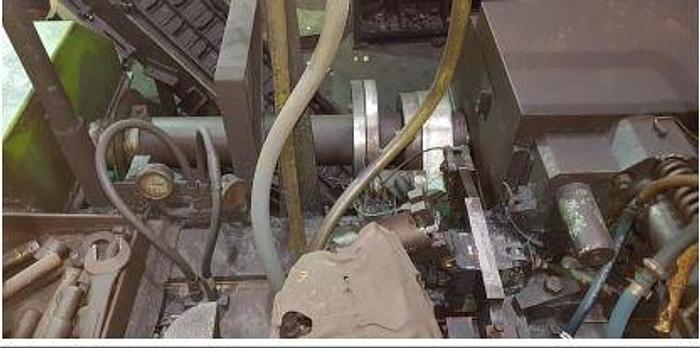

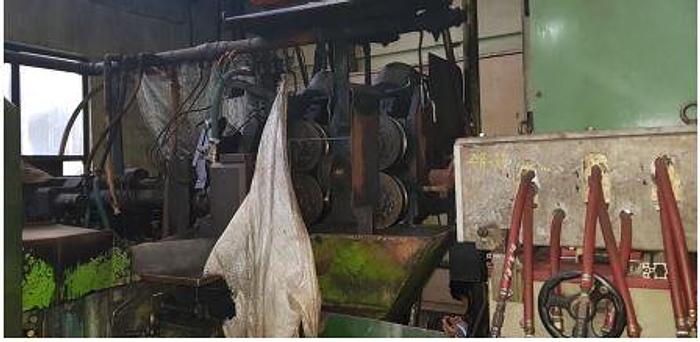

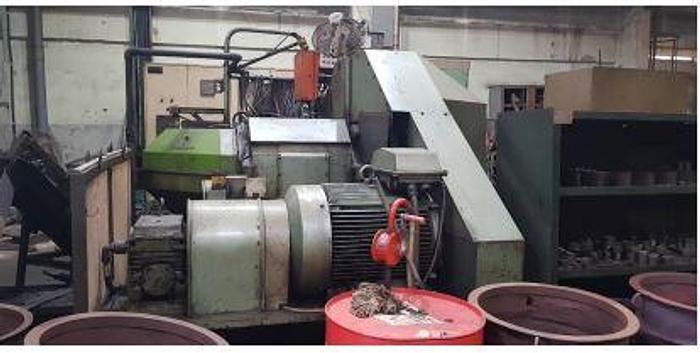

Nut Former MW4840

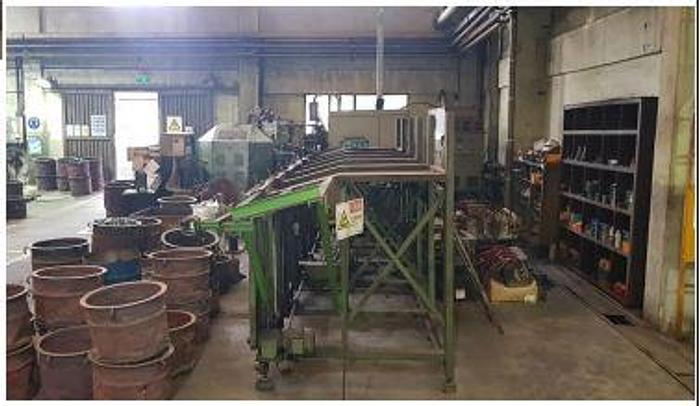

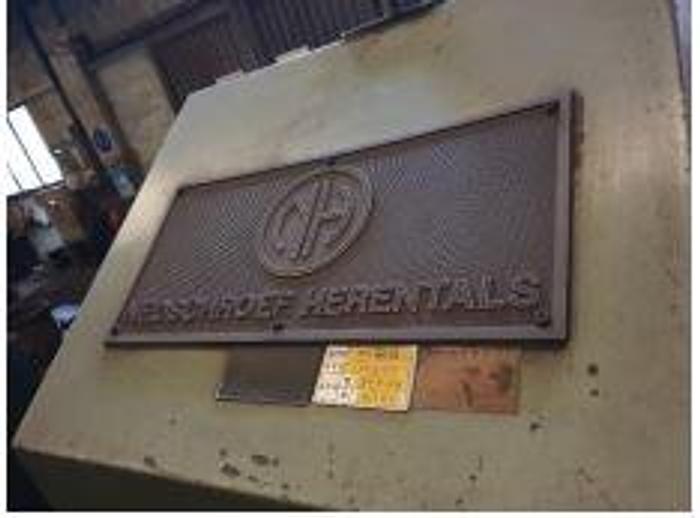

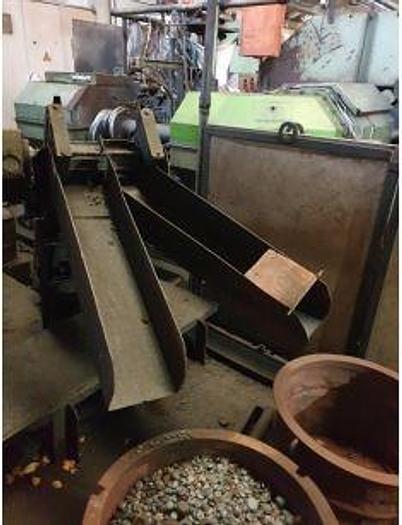

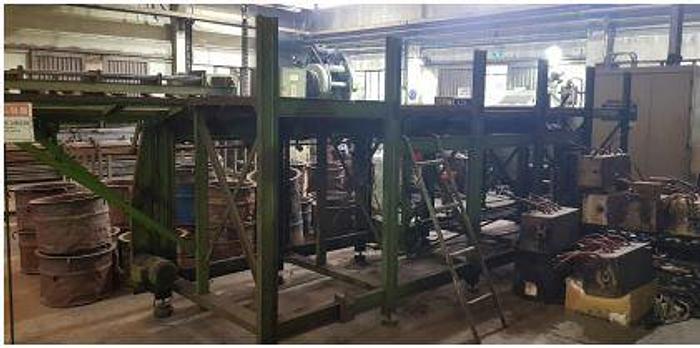

Nedschroef -Hot Nut Former with Insung Induction Heater ( 800KW) & Feeding Unit

Model MW4840  , new 1996

Nut Range M20 – M30

Speed (Parts/ Minute) : 150,

Maximum across flats hex. Nuts : 48 mm,

Maximum across flats square nuts : 41 mm,

Maximum diameter products : 53 mm,

Maximum product height : 40 mm,

Minimum product height : 13 mm,

Maximum bar diameter raw material : 38 mm,

Maximum cutoff length : 60 mm,

Minimum cutoff length : 15 mm,

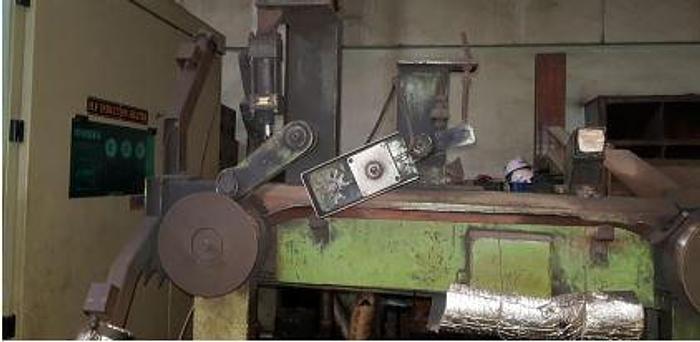

Diameter feed rollers : 180 mm,

Diameter of dies : 90 mm,

Height of dies : 75 mm,

Centre to center distance of dies : 115 mm,

Slide travel : 180 mm,

Forging pressure : 105 tons,

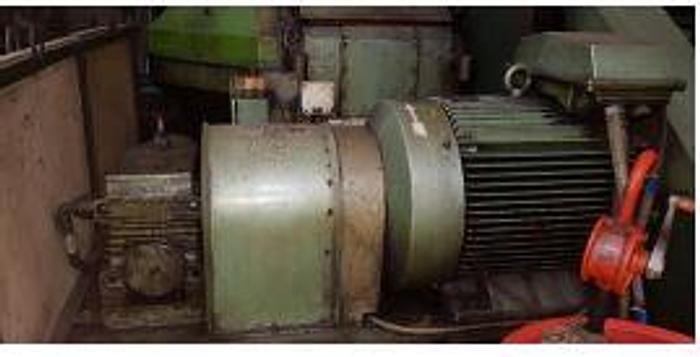

Motor output : 44 kw,

Weight : 18 tons,

Floor space (without heating)

Length x Width : 4650 x 2370 mm,

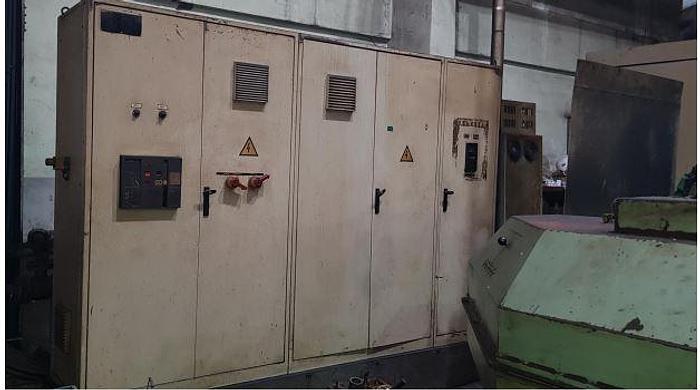

Electric source : 380V x 50Hz x 115A,

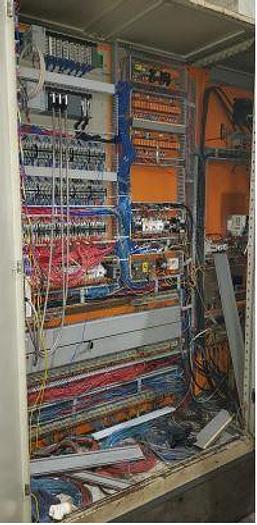

Control power : 220V x 10A,

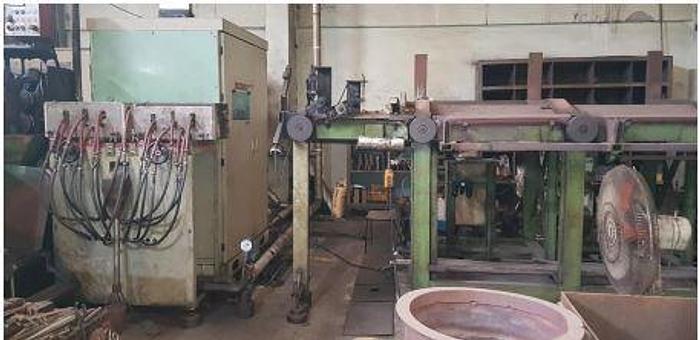

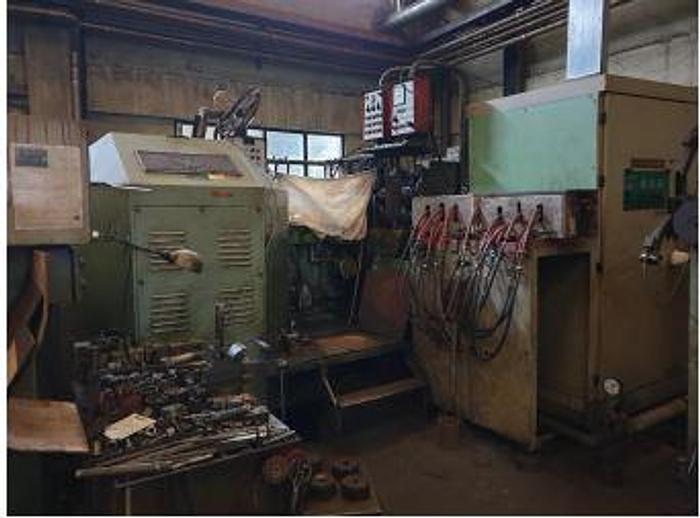

High Friquence Induction Heater : 380V x 800KW,

PRODUCT :

Material : Carbon Steel (High/Low),

Nut Size : 5/8” , 3/4”, 7/8”, 1”, 1 1/8”1,

Length (L) = 48 mm,

Thickness (T) = 40 mm,

CAPACITY OF PRODUCT :

Capacity : 80 ~ 120 ea/min,

Reference of product capacity

D22~28mm : 120ea/min, D30mm : 100ea/min, D32mm 90ea/min

about 30,000ea/day – (basically working time : 8hr/day)

Technical manuals available.

NEW 1975, Installed 1996

Technical manuals available
