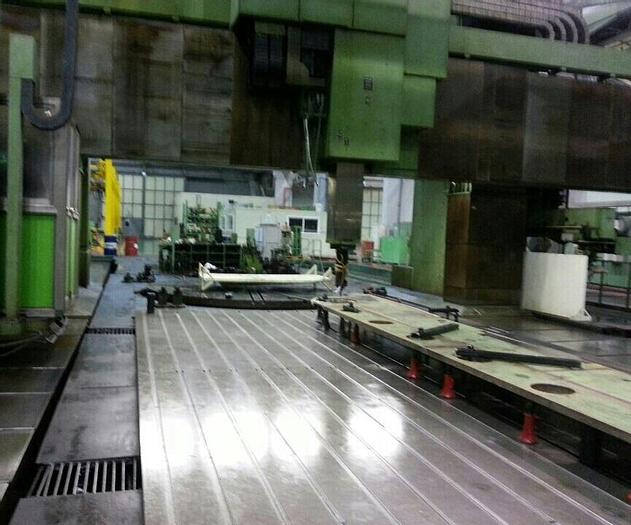

CNC Gantry Milling Machine Schiess Froriep

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSCHIESS-FRORIEP
Model-
Year1992
ConditionUsed
Stock NumberMA1974
Item conditionGood condition
Capacity tons0

Description

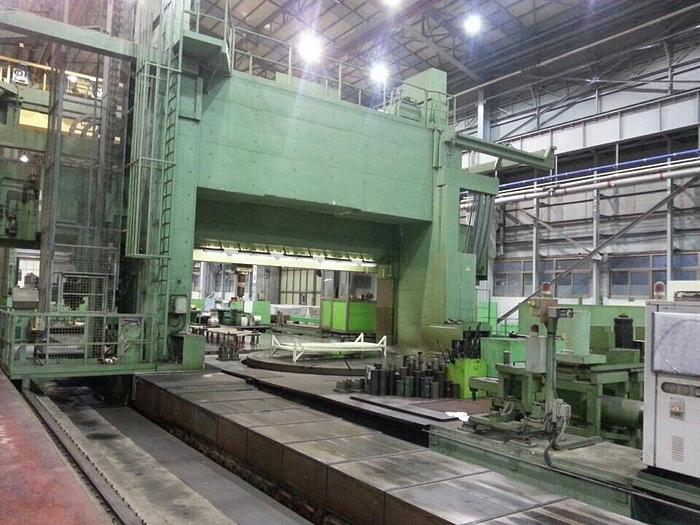

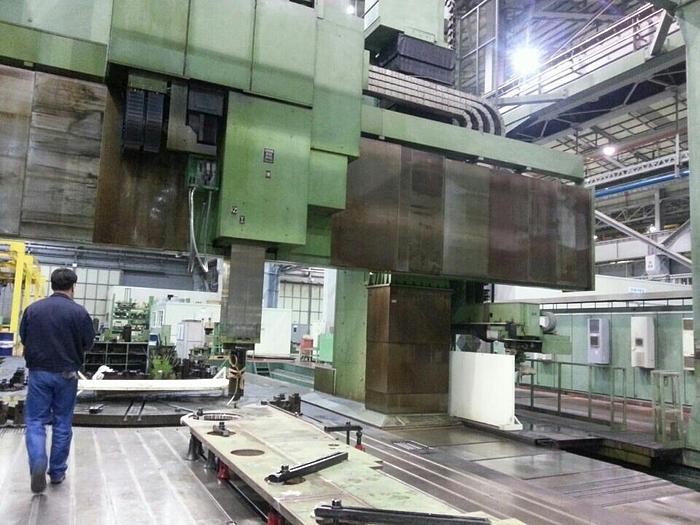

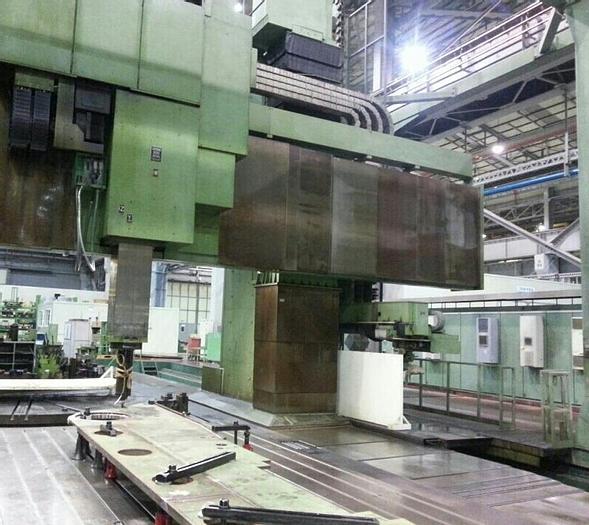

Gantry Type CNC Double Column Milling M/C

X - travel : 19000 mm,

Y - travel : 7500 mm,

Z - travel : 1600 mm,

W - axis : 2500 mm,

A - axis : +/- 270 °

C - axis : 0-90 °

Passage (Height) : 3500 mm,

distance between columns : 6500 mm,

faceplate ø : 4500 mm,

table load : 63 tons,

fixed working table - surface area : 8000 x 5000 mm,

b-axis 0,001 °.


Accessories:

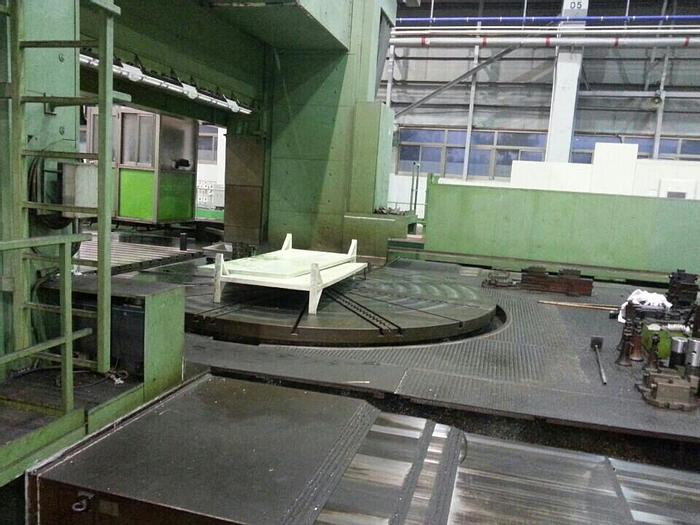

NC-Rotary table for milling- and turning

SIEMENS 850M CNC-Control

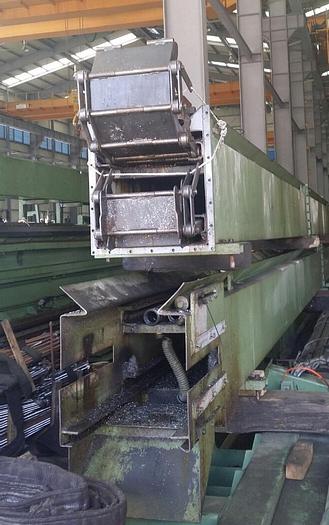

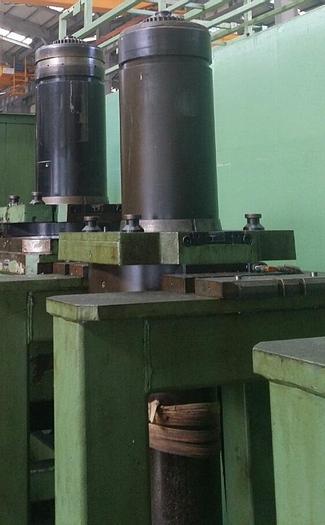

5 x milling heads, 3x drilling heads, 2 chip conveyors, 90-station tool changer

milling head magazine,

boring head, 45 kW, 25 - 2500 RpM

universalwinkel-boring head 56 kW. 25-2500UpM, A-Axis +/- 270 °. C-Axis 0-90 °

angular head 56 KW. 25-2500 RpM,
