2800 tons Hot Forging Press Line Massey

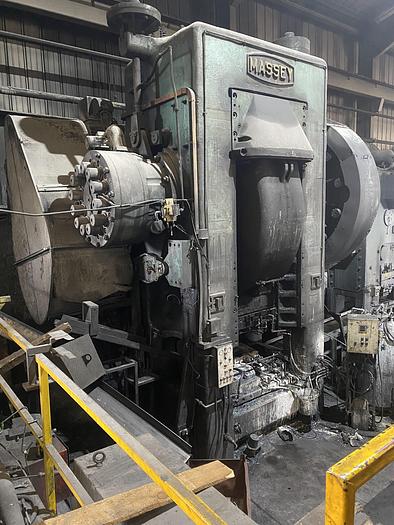

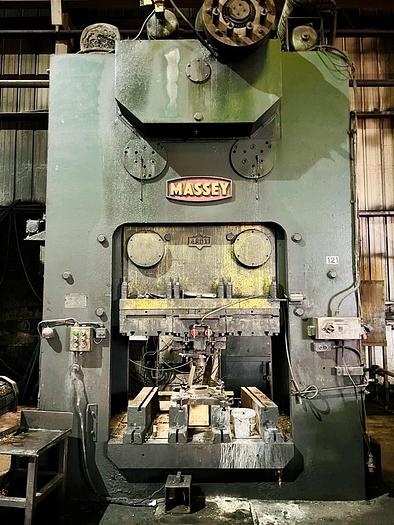

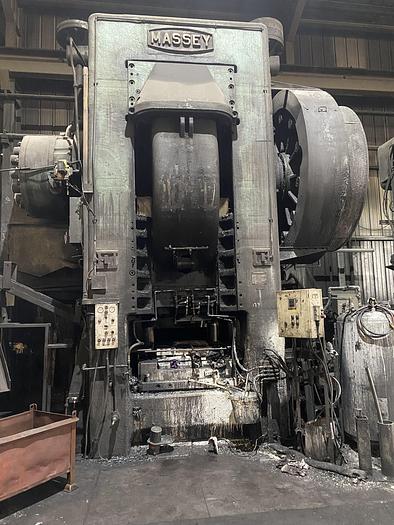

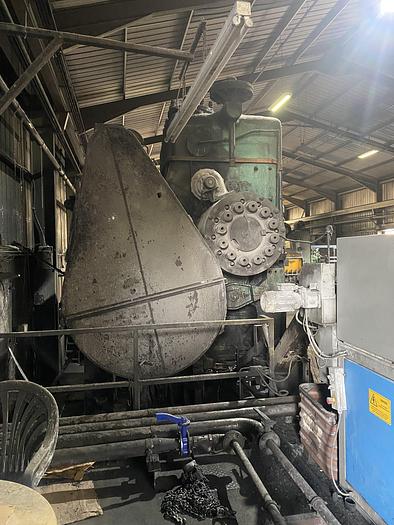

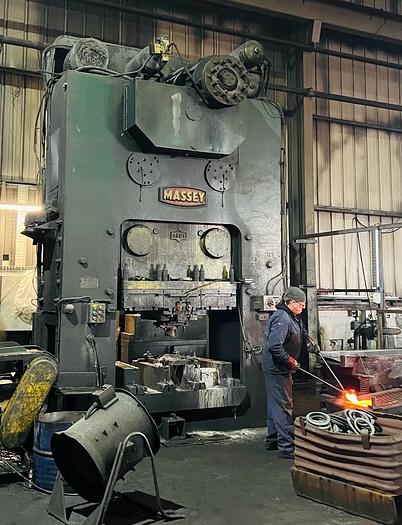

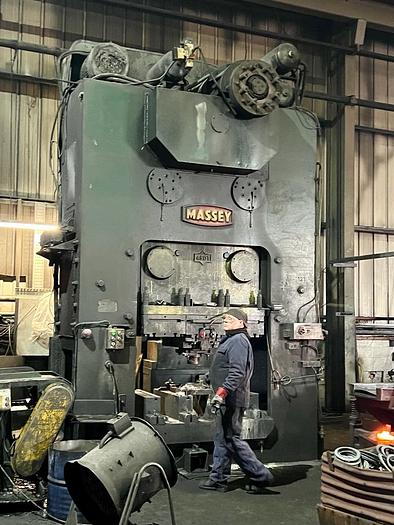

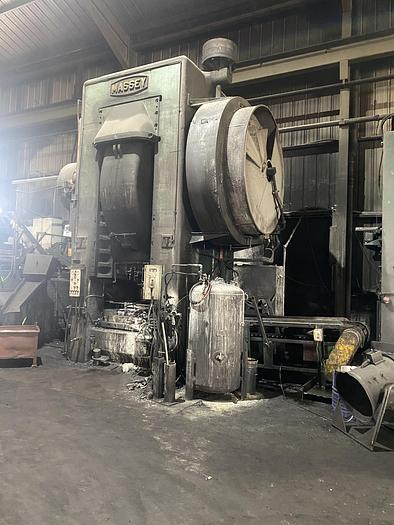

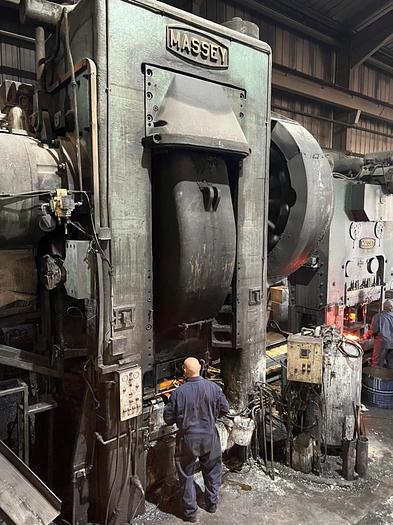

1) Hot Forging Press Massey Make

Capacity : 2800 tons,

Stroke length : 355 mm,

Stroke per minutes : 60,

Max working strokes/min : 20,

Shut height with Ram at TDC : 1245 mm,

Shut height with Ram at TDC : 890 mm,

Shut height stroke adjustment: +5 mm & -14mm

Ram (left to right) : 1219 mm,

Ram (front to back) : 1118 mm,

Bed size (left to right) : 1219 mm,

Bed size (front to back) : 1040 mm,

Width between column : 1422 mm,

Width of opening in columns : 864 mm,

Ram ejector stroke : 35 mm,

Table ejector stroke : 0-60 mm,

Journal diameter : 584 mm,

Shaft diameter at eccentric : 940 mm,

Wedge to floor : 585 mm,

Wedge (front to back) H : 1040 mm,

Floor space (front to back) : 3650 mm,

Floor space (left to right ) : 4950 mm,

Height above floor : 5943 mm,

Motor size (continuous rating) : 150 KW,

Motor speed at full load : 985 rpm,

Weight (gross) including girders and preload : 170 tons,

Air Consumption free air : 1.3m3/min,

Drive : geared.

Quick change bolsters with sun-bolsters,

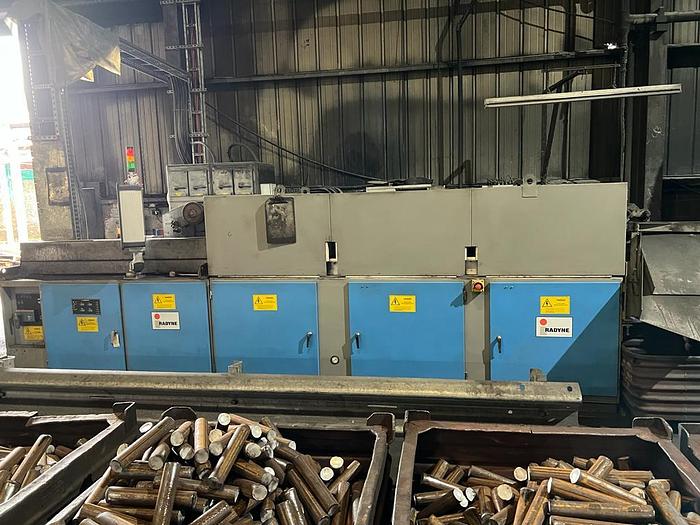

2) Inductotherm Billet Heater 1000 tons KW capacity

3) Trimming Press Massey Make

Double Conrod Wide Ram type

Capacity : 450 tons.
