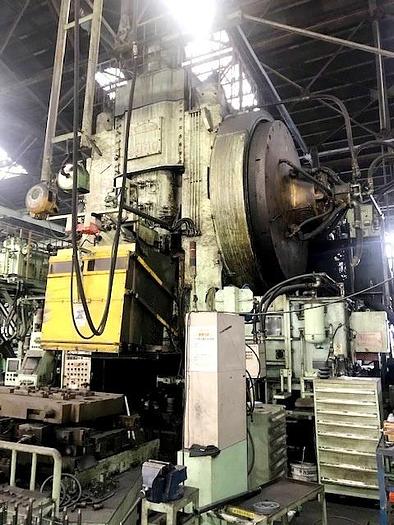

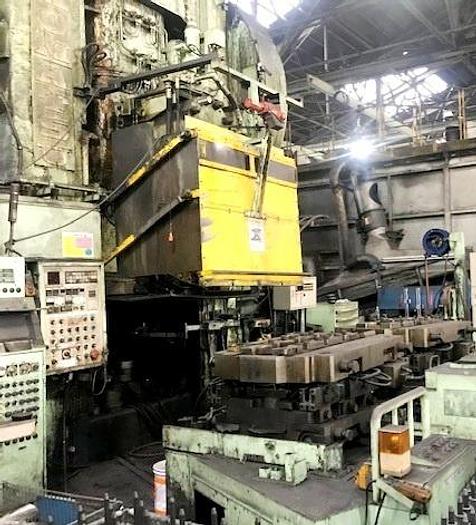

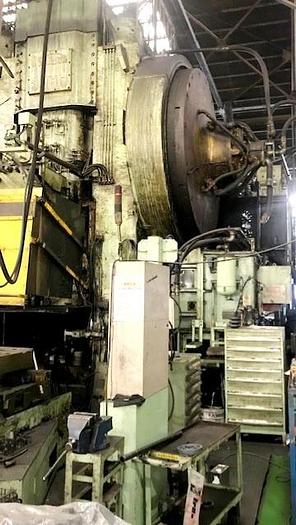

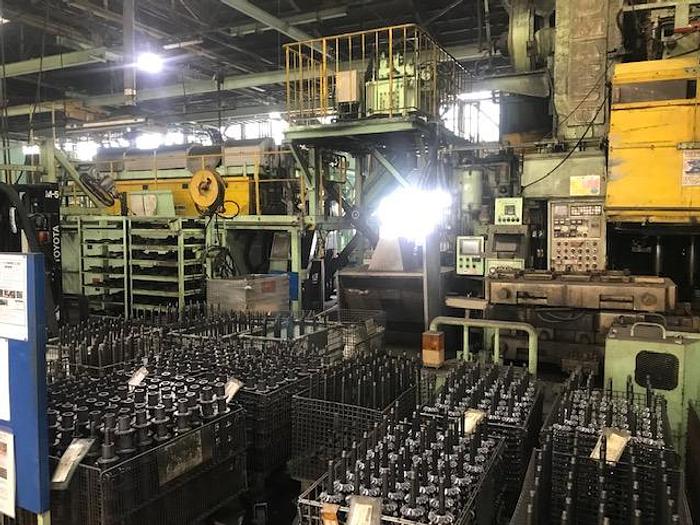

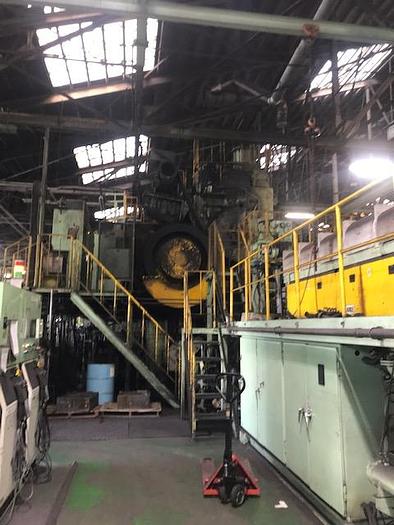

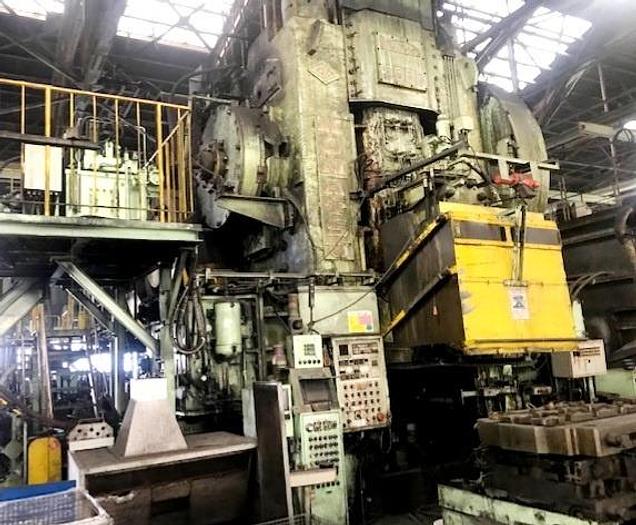

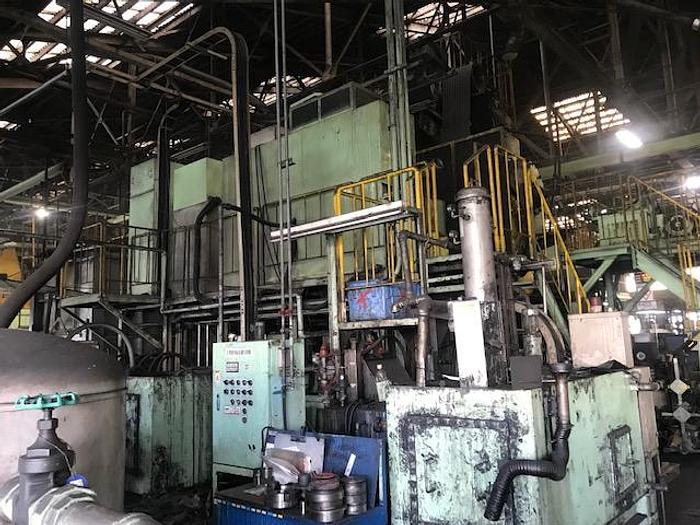

Press Hot Forging Komatsu CAH3000

1) 5 stations, Hot forging Press

Capacity : 3000 tons,

Stroke : 355 mm,

No. of stroke per minutes : 60,

Discontinuous no. of stroke : 25 SPM,

Distance between columns : 1450 mm,

Die height : 924~934 mm (+2, -8),

Slide adjustment : 100 mm,

Slide : 1250 x 1200 mm

Bolster : 1350 x 1450 mm,

Side opening : 900 mm,

Bottom knock out : 50 mm (Hydraulic),

Top air hold : 2,3 station

2) Transfer device

Feed : 260 mm,

Lift : 150 mm,

Clamp : 100 mm,

The number of stations : 5

Cycle : continuous max. 25 SPM

4,5 stations; with reversing device

Finger : 1set

Bottom mold height : 945

3) Material device

Dia. : 40~70 mm,

Load; max. : 3.5 Kg

Heater by pass type

4)Nozzle type

1 station; air blow only (fixed nozzle)

2,3,4 stations; up, down, liquid, air (moving nozzle)

5 station; up, down, liquid, air (fixed type)

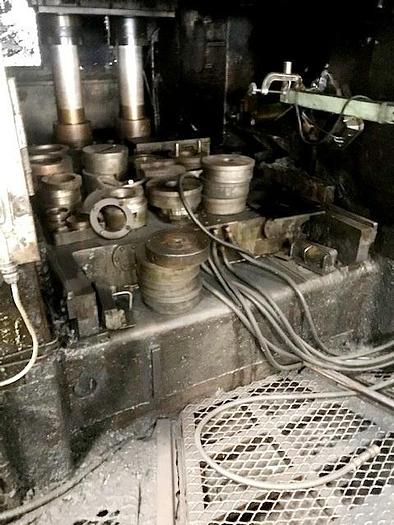

4) Die holder and Cassette

Main holder 1set/ Cassette 2sets

Clamper unit device

2.5T x 555st

5) QDC device

Quick die changer

Cassette change type

Forward V type

6) Air

Over 0,45MPa

Manufacturing y ear: 1974

Overhaul year: 1990
