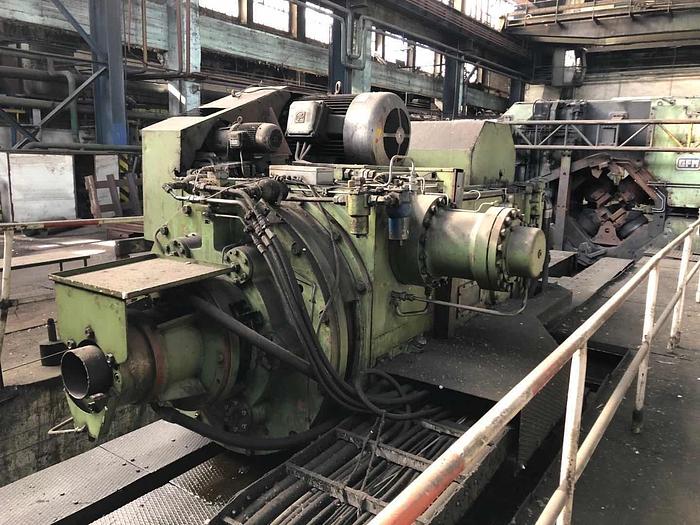

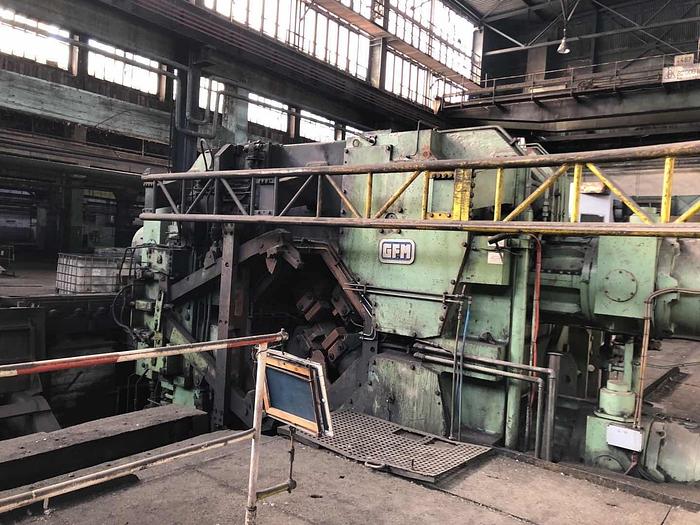

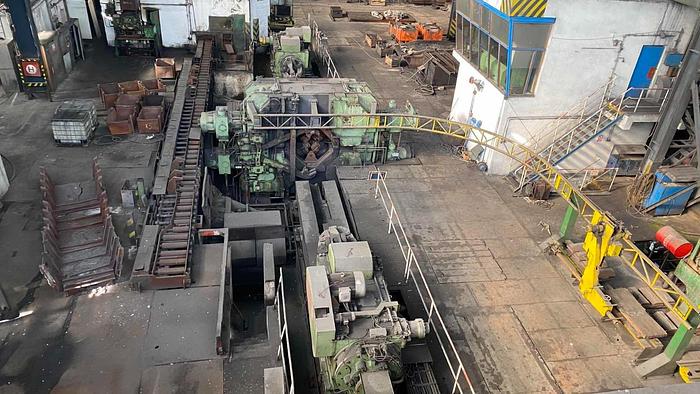

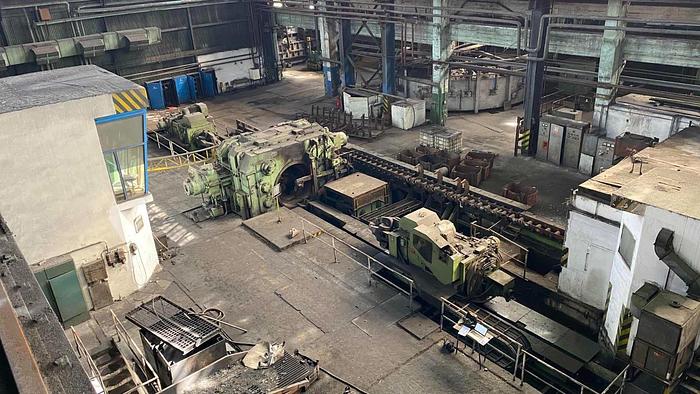

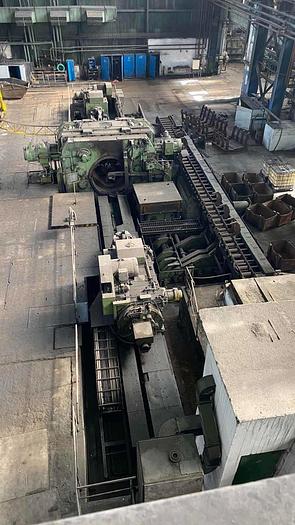

Radial Forging Line GFM SX40

Sold

Specifications

ManufacturerGFM
ModelSX40
Year1975
ConditionUsed
Stock NumberMA1988
Item conditionGood condition

Description

Capacity : 900 tons,

Number of hammers : 4,

Stroke per minutes : 270,

Adjustment range in diameter : 280 mm,

Forging eccentric : 14 mm,

Hammer length : 610 mm,

Starting material : around 400 mm square 320 mm,

Load torque : 30 KNm,

Load capacity : 3 ton,

Spindle speed : 10.2/min,

Protection tube internal dia: Ca 223 mm,

Speed : 500 mm/s,

Feed : 10-200 mm/s,

Workpiece unloading length : 6000 mm,

Clamp stroke : 7140 mm,

Workpiece unloading length : 8000 mm,

Clamp stroke : 9940 mm,

Blank weight : 2500 kg,

Blank length min : 1500 mm,

Blank length max : 3000 mm,

Workpiece weight : 2500 kg,

Workpiece length min : 1500 mm,

Workpiece length max. : 8000 mm,

Forge motor : 2 x 500kW,

Clamp motor : 2 x 37 kW,

Hydraulic motor : 220 kW,

Aux motors : 40 kW,

Aux drive : 20 kW,

Total rated power : 1600 kW,

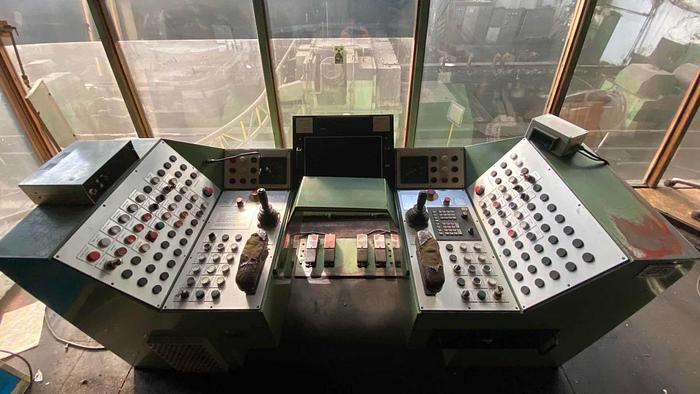

Control : 220 V,

Signal : 24 V dc,

Electronic : 24 V dc,

Light voltage : 220 V,

Cooling water pressure : 3 - 5 bar,

Consumption at 35 degC inlet

And 40 degC outlet : 100 m3/h,

Air pressure : min 5 bar,

Air consumption : 2.5 Nm3/min.,

Forge height above floor : 750 mm,

Overall height above floor : 3000 mm,

Overall length : 44400 mm,

Total width with control panel and hydraulics : 20350 mm,

Depth of oil cellar : 3100 mm,

Weight of machine with electrics : 437 tons,

Weight with electrical and additions 493 tons,

Year of construction : 1975,

Updated : 1991.
