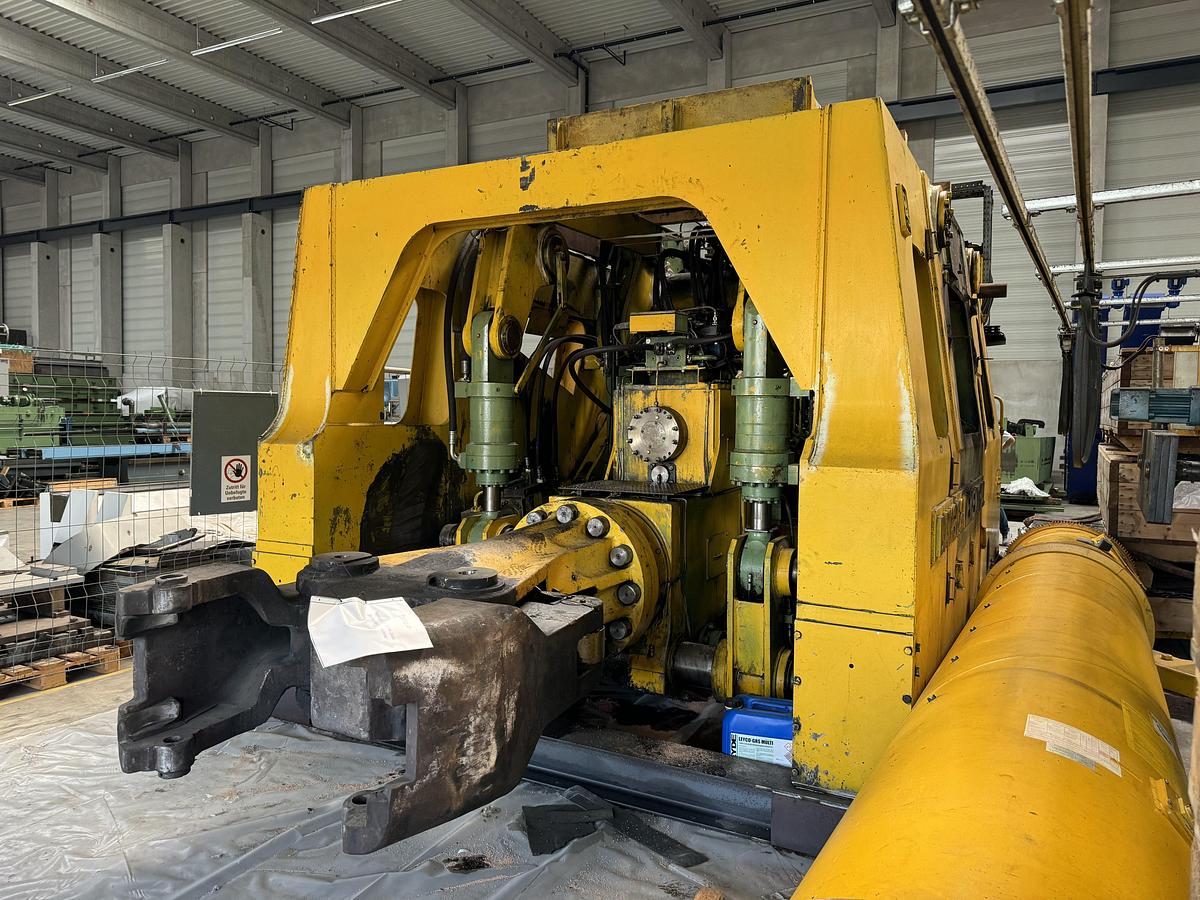

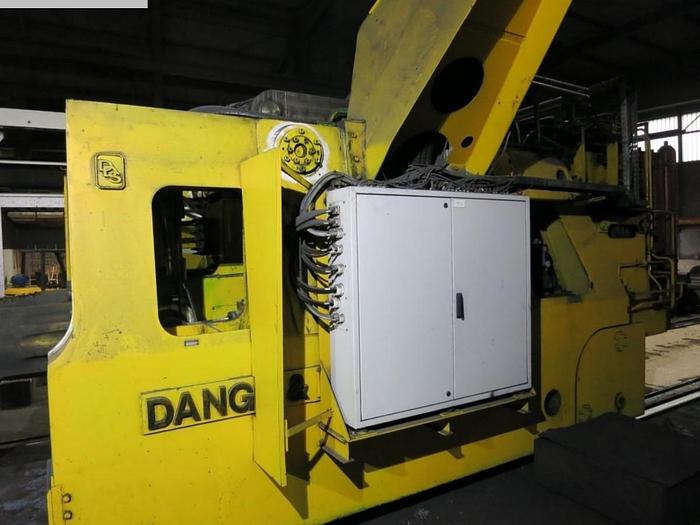

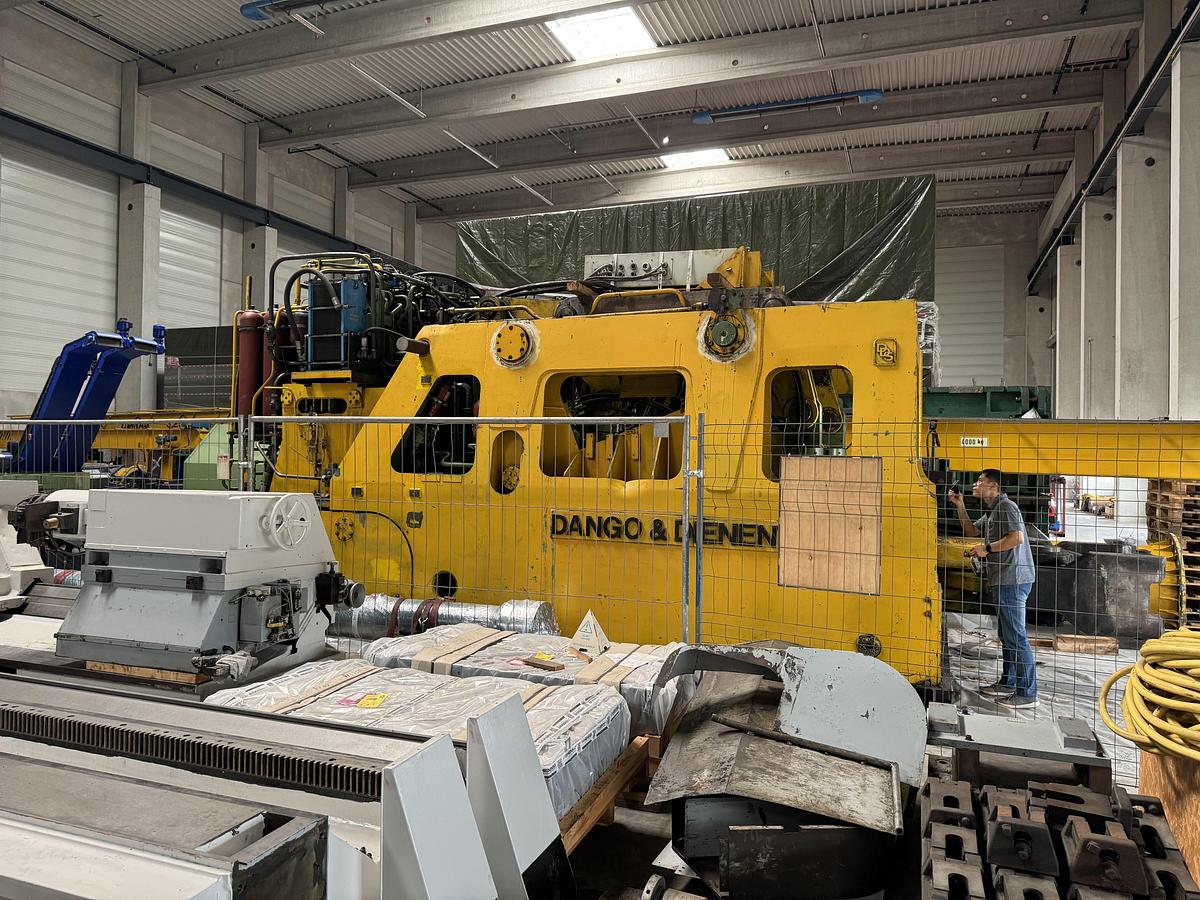

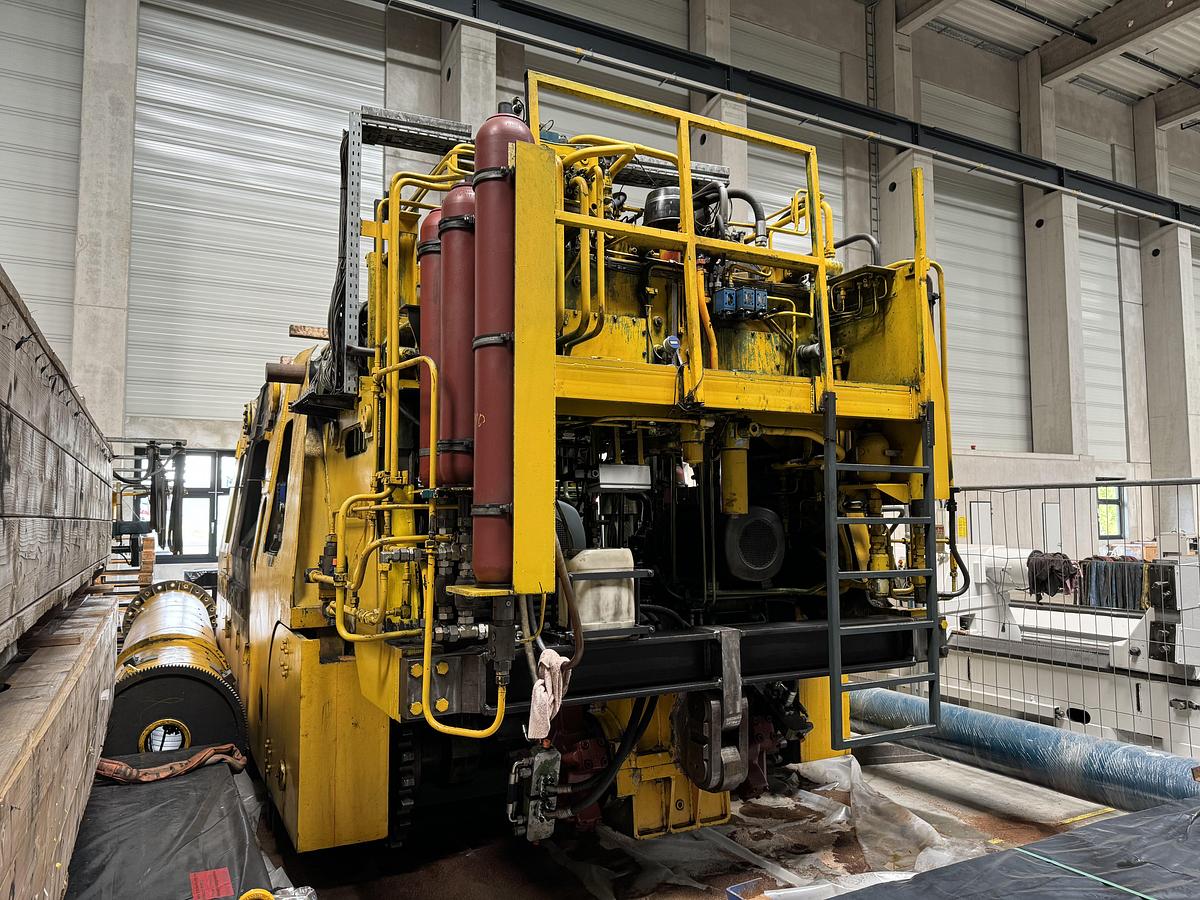

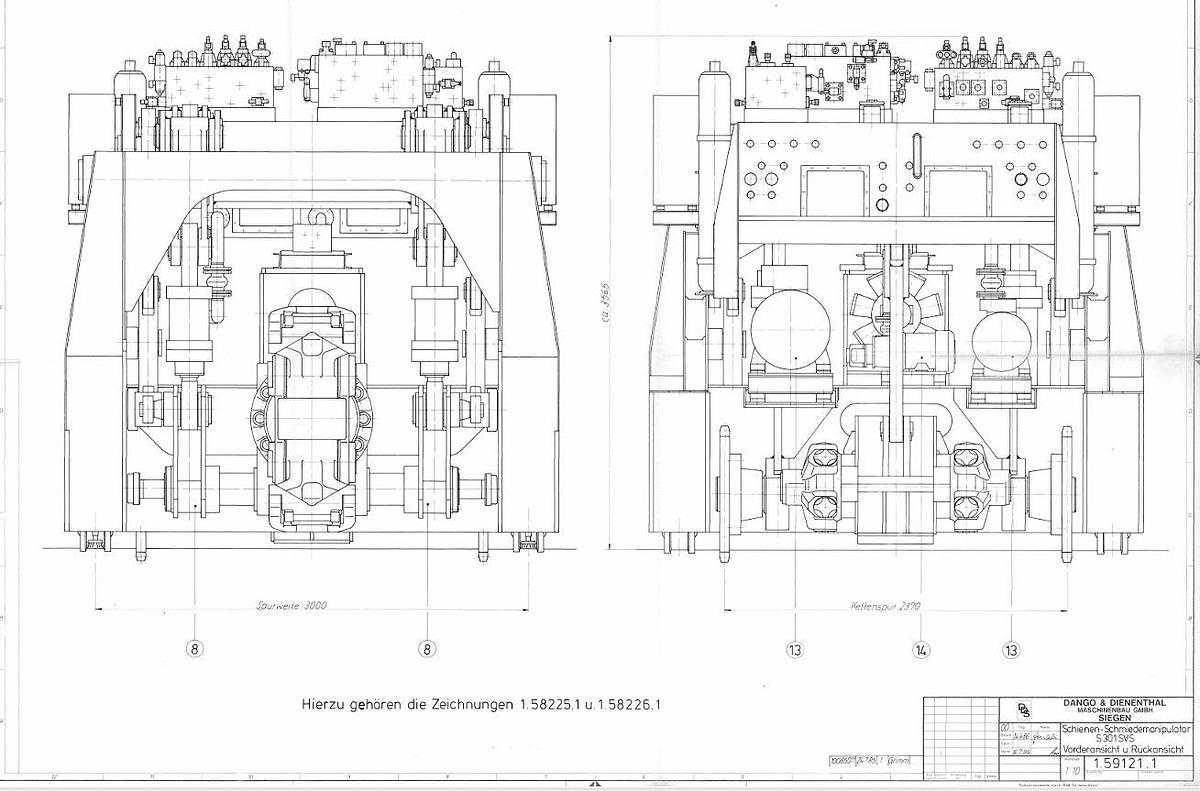

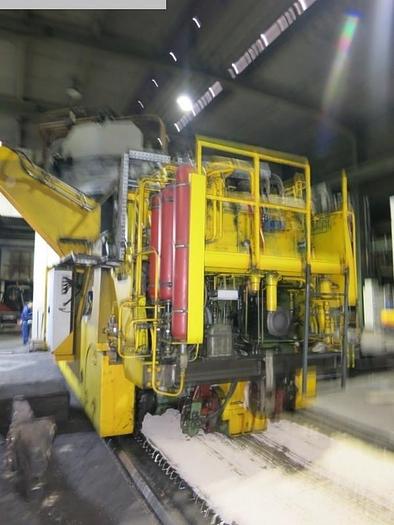

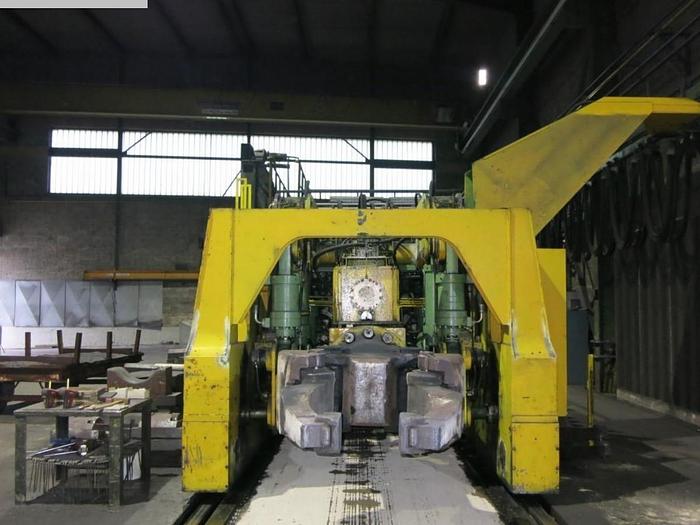

12 tons Manipulator Dango & Dienenthal S30.1SVS

Capacity : 12 tons,

Total power requirement : 130 kW,

Work piece width : 880 mm,

Weight of the machine ca. : 63.3 tons,

Incline position of plears upwards : 6,5°,

Incline position of plears downwards : 12,5°,

Strike-slip fault left : 200 mm,

Strike-slip fault right : 200 mm,

Rotary speed of plear : 2-30U/min,

Driving speed 2 levels : 0-60m/min.

Last moment (relative to center of jaws) : 250 KNm,

Last moment (relative to center of front wheel) : 490 KNm,

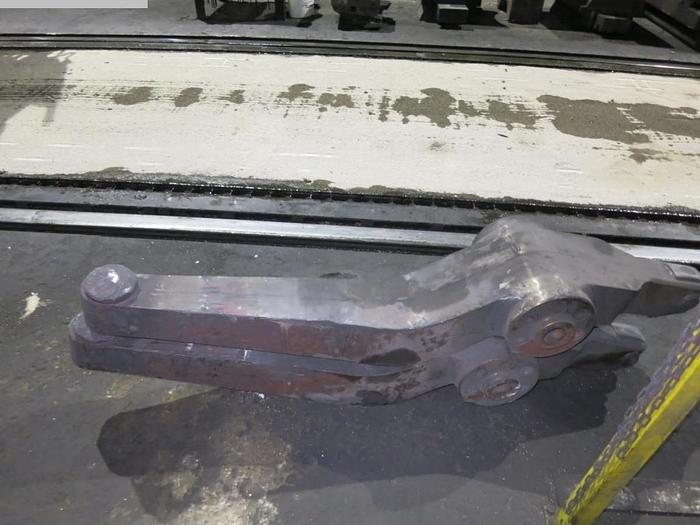

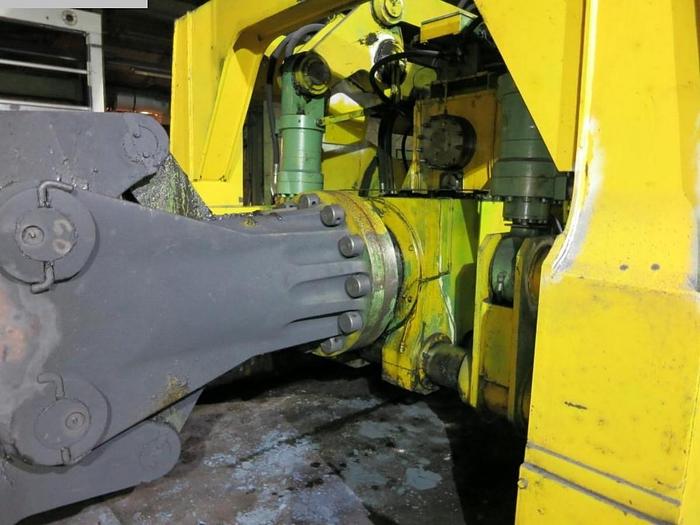

Jaw dimensions :

Jaw opening for round material : Max. 1040 mm,

Jaw opening for round material : Min. 290 mm,

With chuck Max. for round material : 880 mm,

With chuck Max. for Square material : 710 mm,

With chuck Min. for round material : 100 mm,

With chuck Min. for Square material : 100 mm,

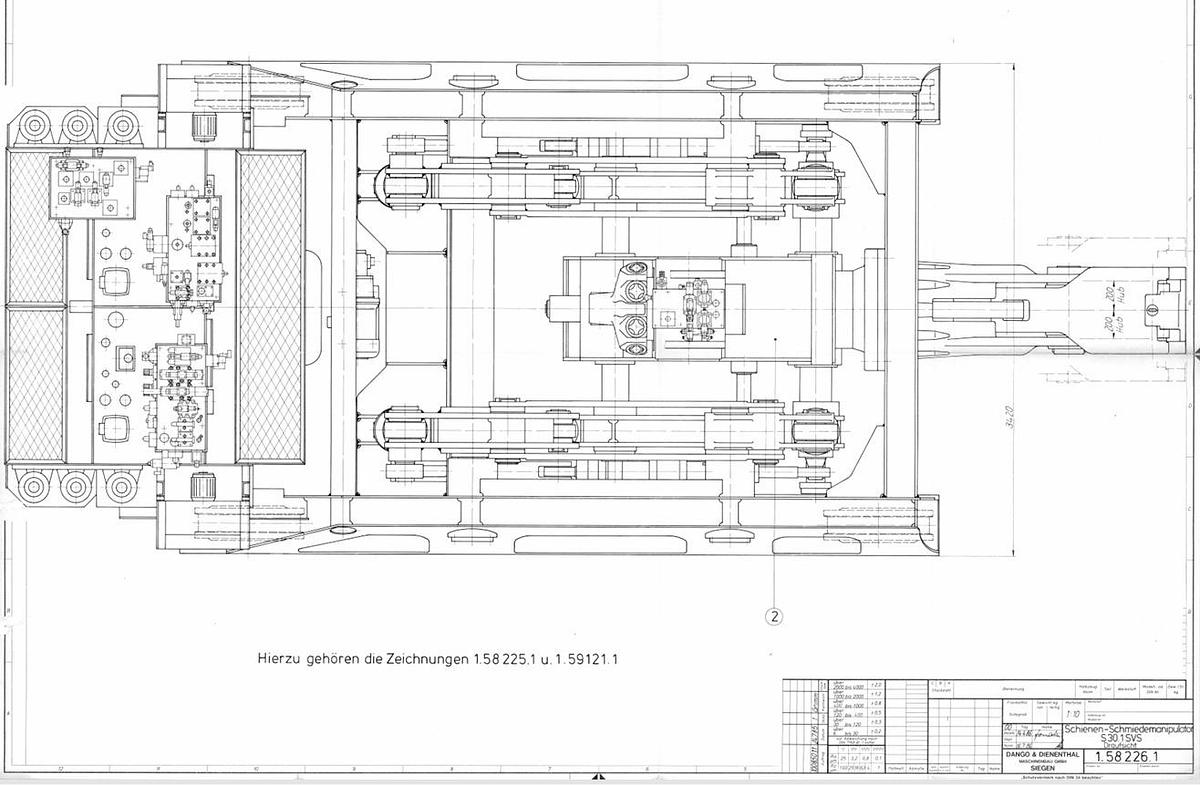

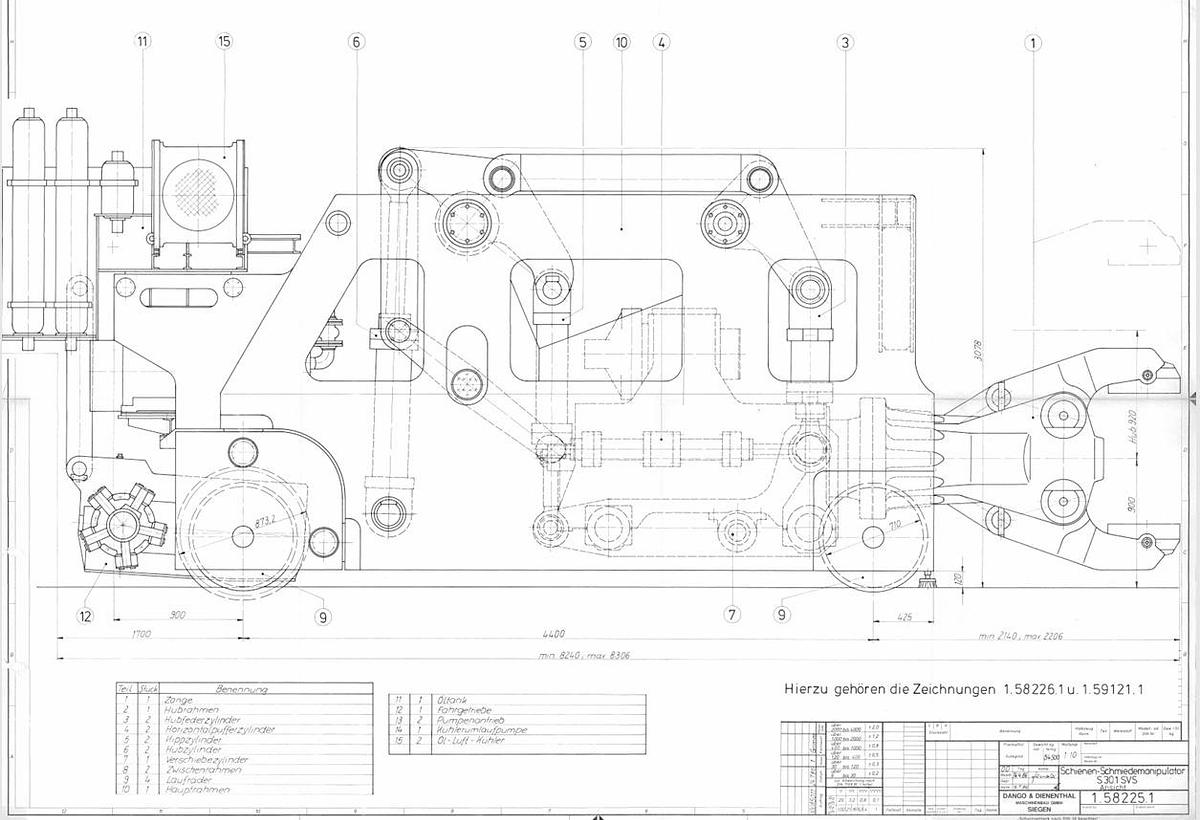

Overall main dimensions :

Length : 7900 mm,

Width : 3360 mm,

Height : 3170 mm,

Lowest horizontal position of the grapple above ground : 800 mm,

Parallel stroke of the grapple : 920 mm,

Weight of the machine : 63 tons.

Technical manuals available.
