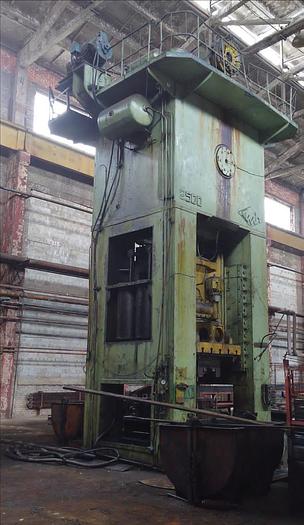

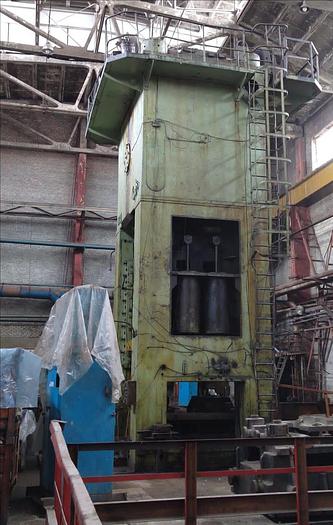

Press Trimming TMP Voronezh Russia K960

Capacity : 2500 tons,

Stroke : 630 mm,

Stroke per minutes : 12,

Shut height : 970 mm,

Bolster plate to ram adjustment stroke : 220 mm,

Bed dimension : 2000 x 2000 mm,

Ram dimension : 1800 x 1800 mm,

Bolster plate thickness : 650 mm,

Main drive motor power : 132 kW,

Overall dimension floor space : 5560 x 5470 mm,

Height above flor level : 9250

Weight approx. : 259 tons.
