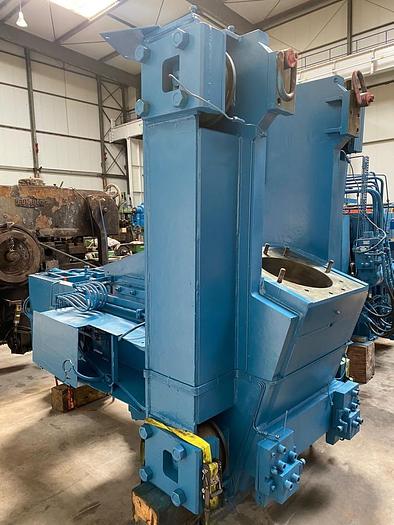

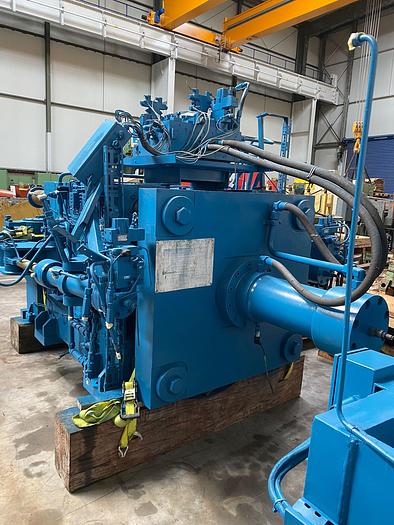

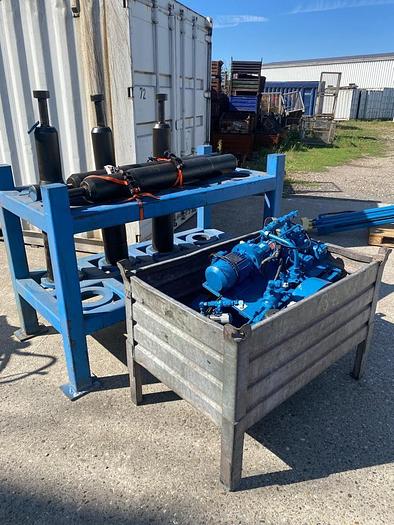

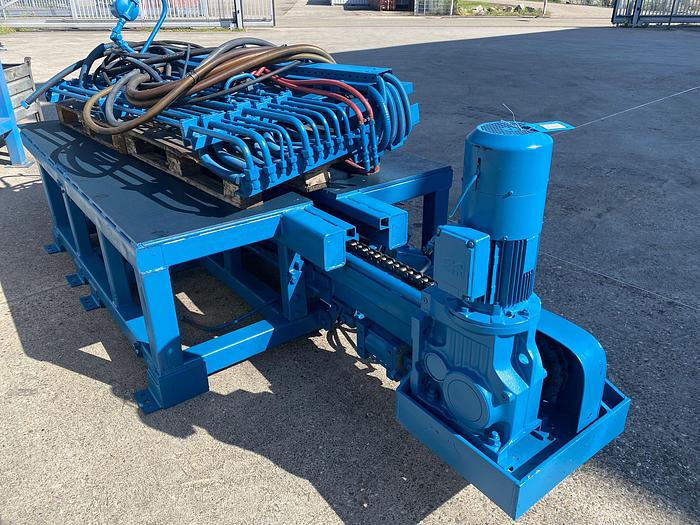

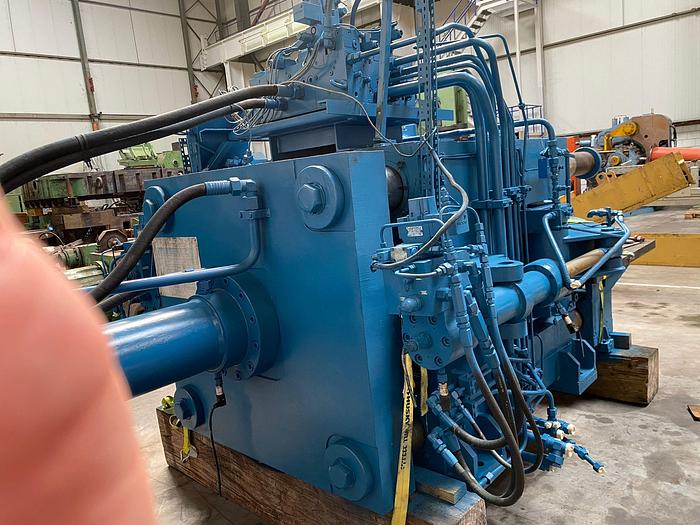

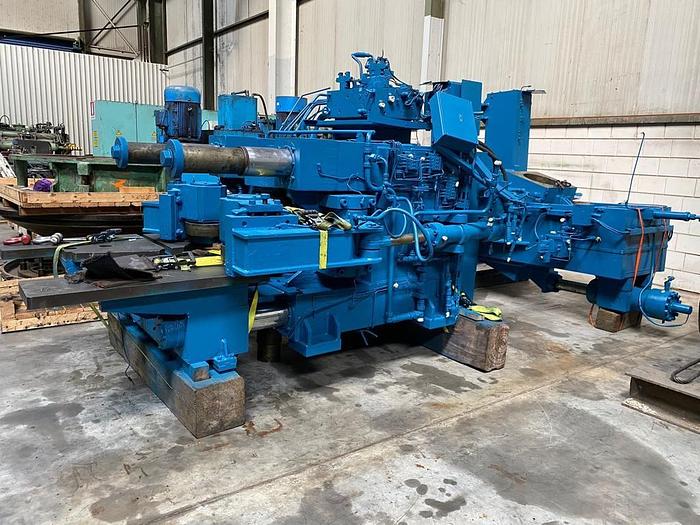

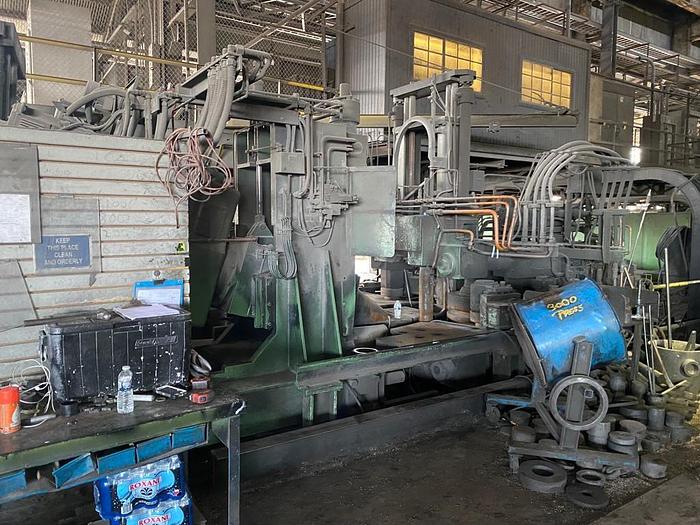

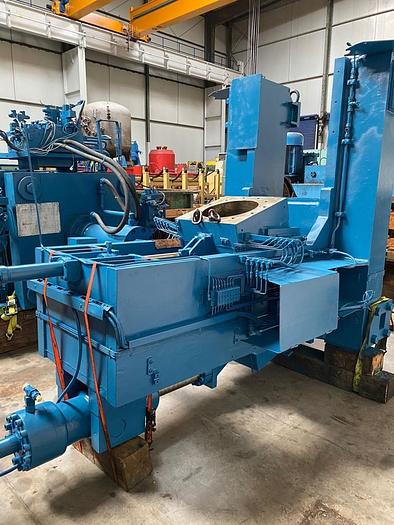

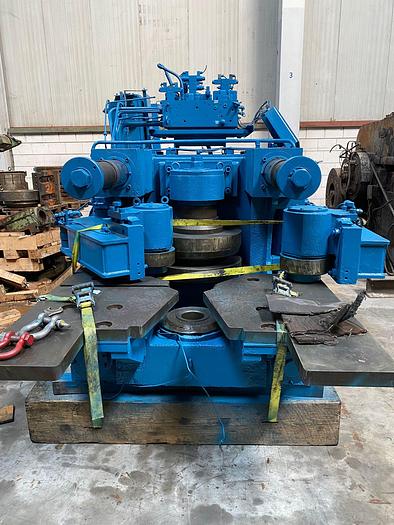

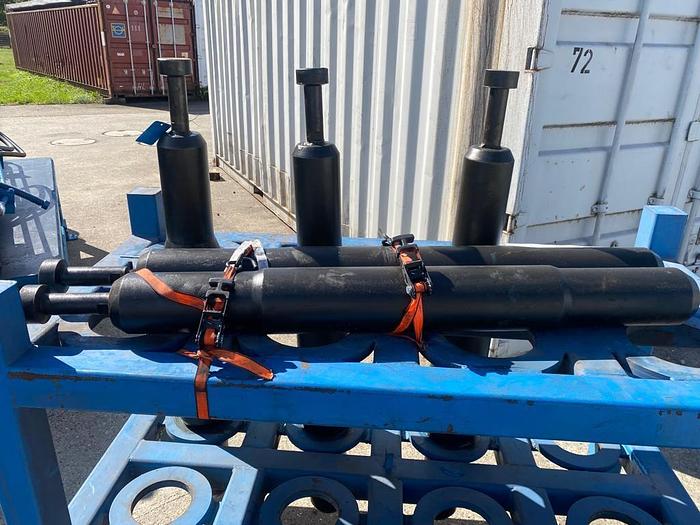

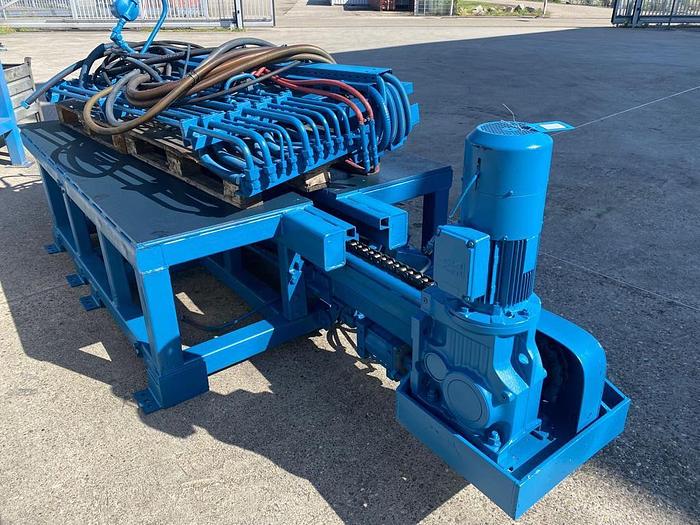

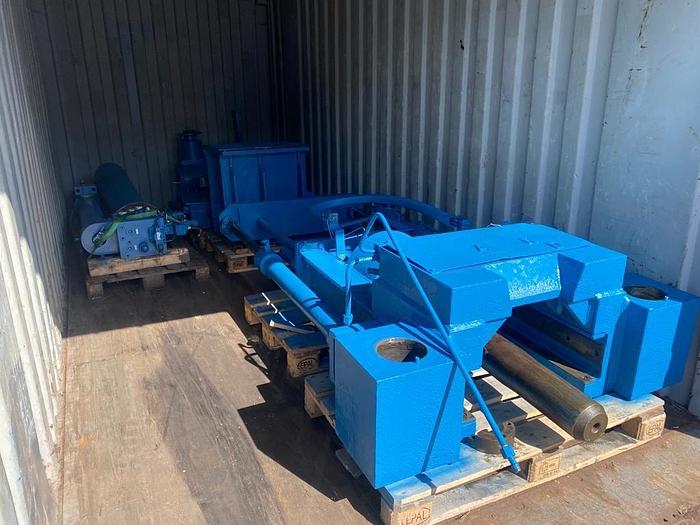

Ring Rolling Machine Wagner RAW 100/63-2000/400

Height of rolling table above ground : 700 mm,

Radial rolling force : max. 1000 kN,

Rolling speed (standard main roll) : 1 m/s,

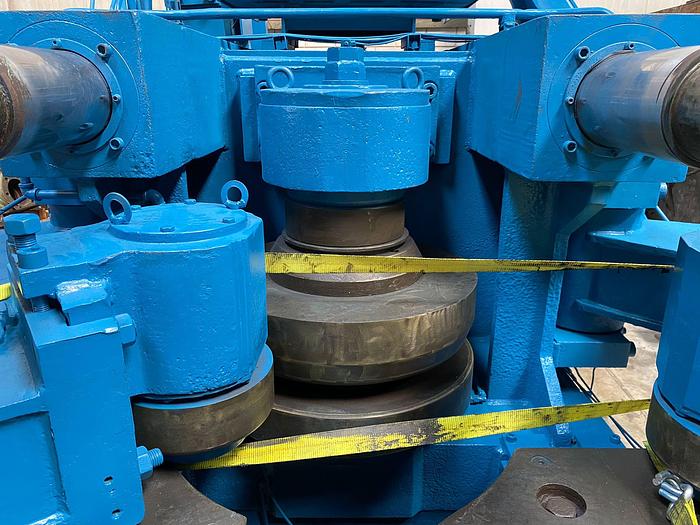

Standard main roll :

Nominal outside dia. : 580 mm,

Outside dia. : max. 750 mm,

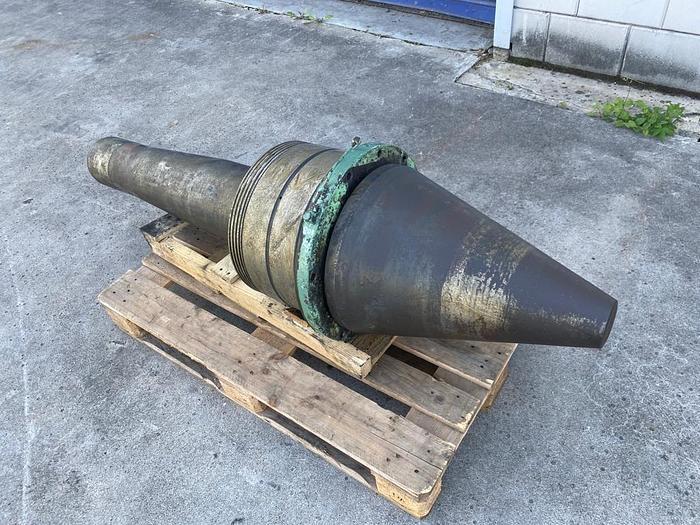

Mandrel:

Nominal outside dia. : 170 mm,

Stroke of radial carriage : 400 mm,

Minimum center distance between main roll and mandrel : 415 mm,

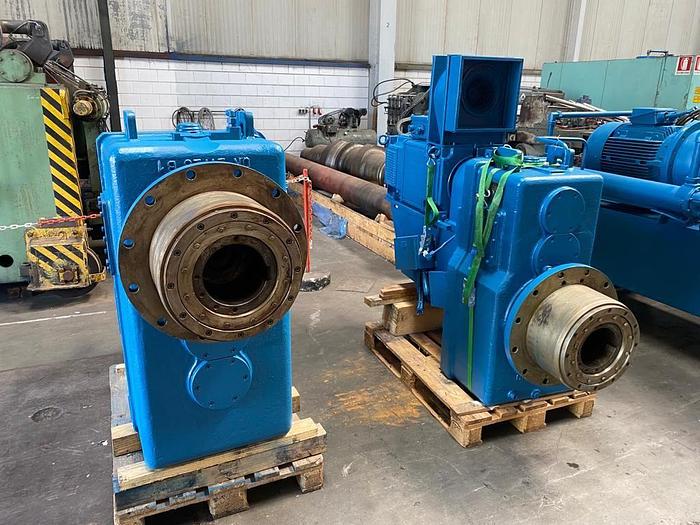

Drives:

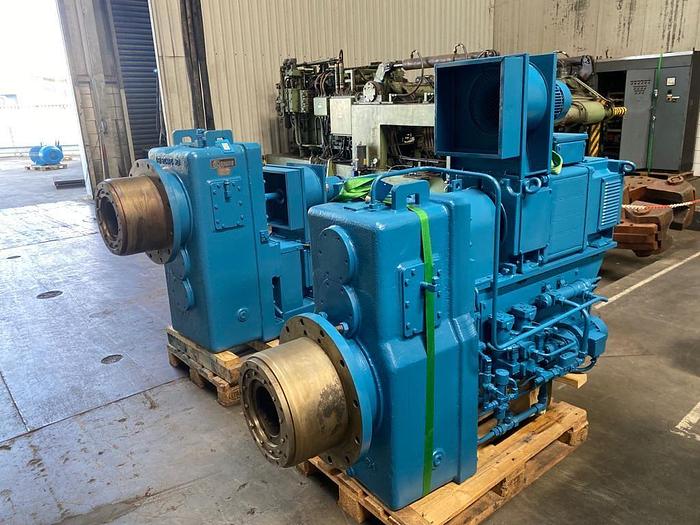

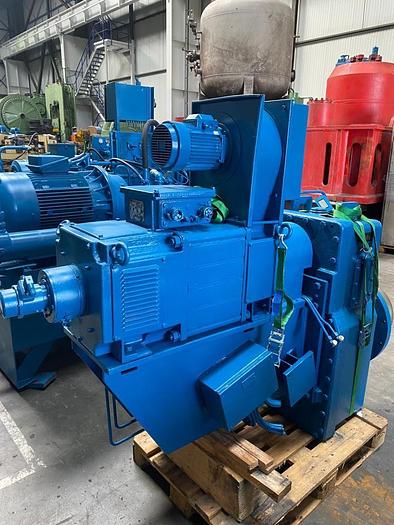

Drive rating, main roll drive (3-phase) : 160 kW,

Operating vlotage (3-phase) : 480 V +- 10%, 60 Hz,

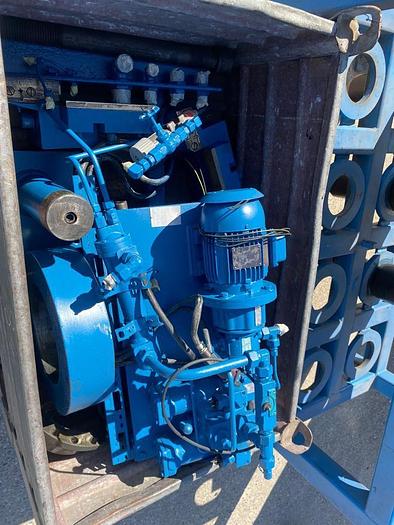

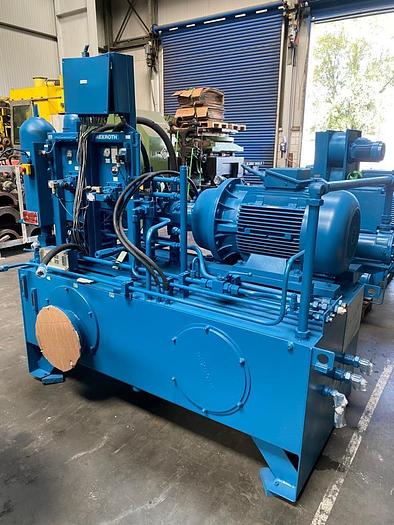

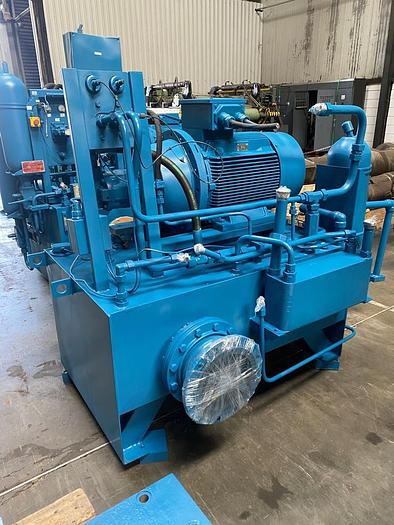

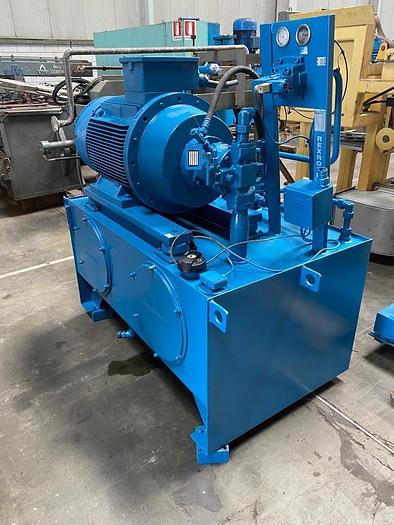

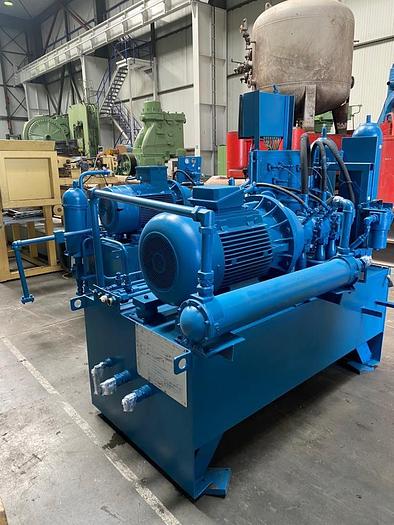

Operating pressure, hydraulic system : 120/265 bar,

Vertical adjustability referred to the reference plane :

Main roll : +- 10 mm,

Mandrel : +- 10 mm,

Rolling table : -10 mm,

Ring dimensions :

Ring dia. : 250-1000 mm,

Ring height : 30-400 mm,

Overall weight of the machine approx. : 26 tons.

Drawing available
