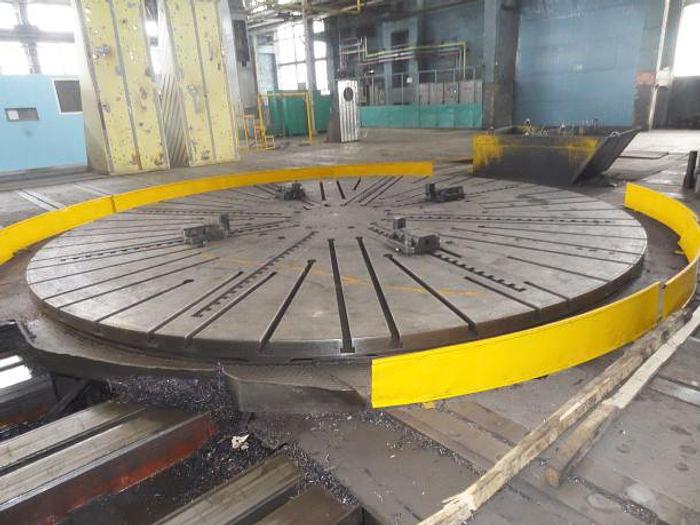

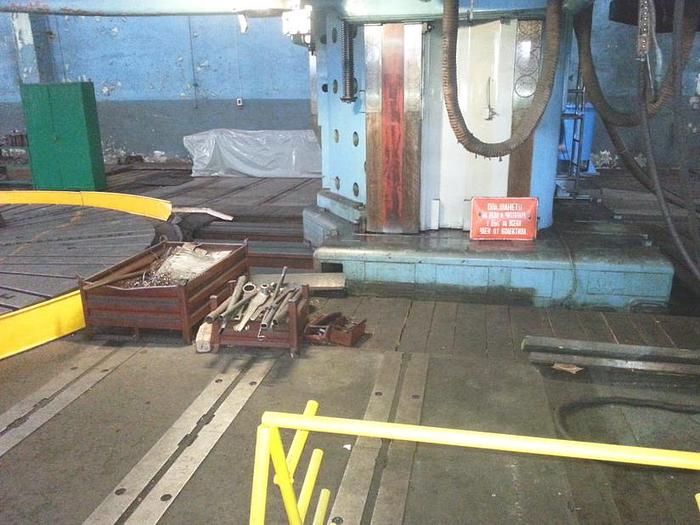

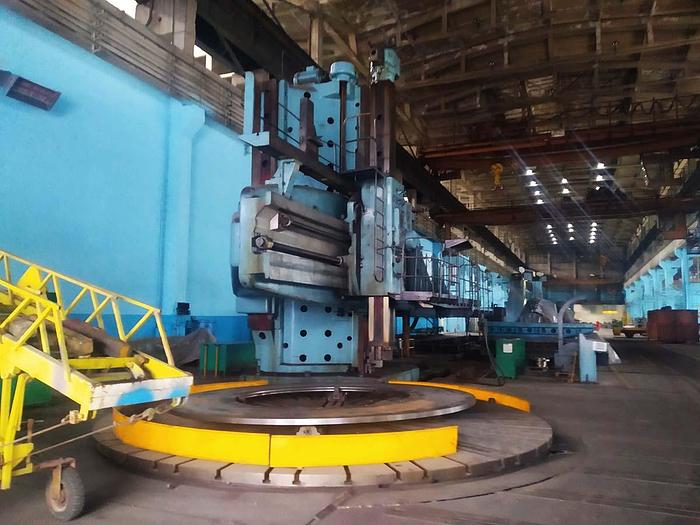

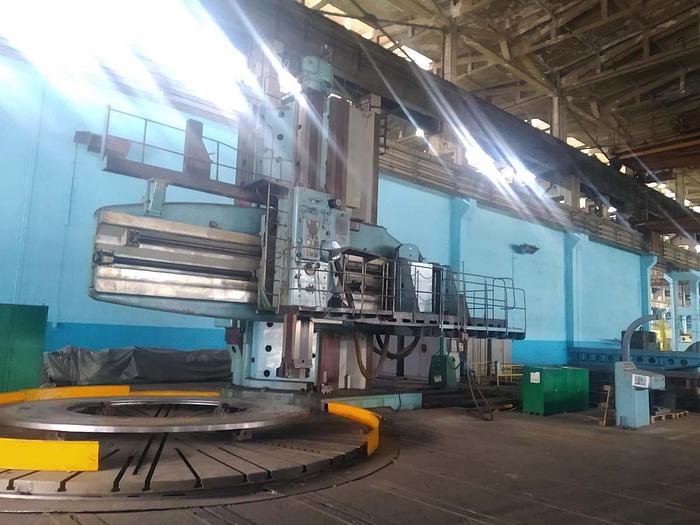

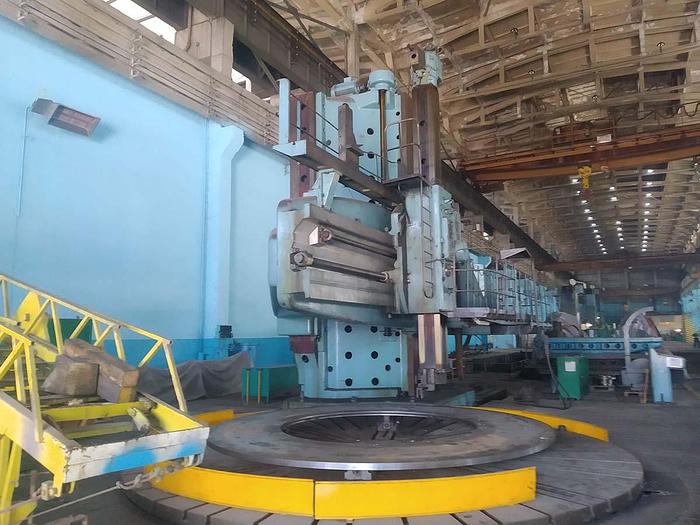

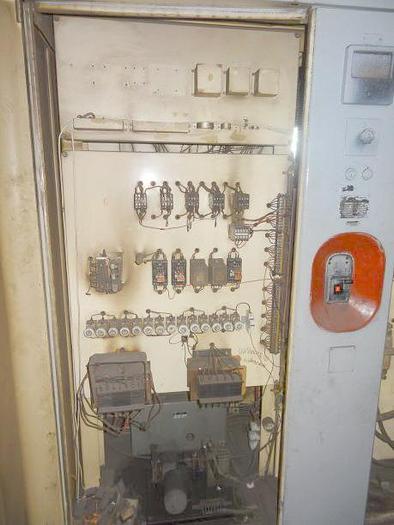

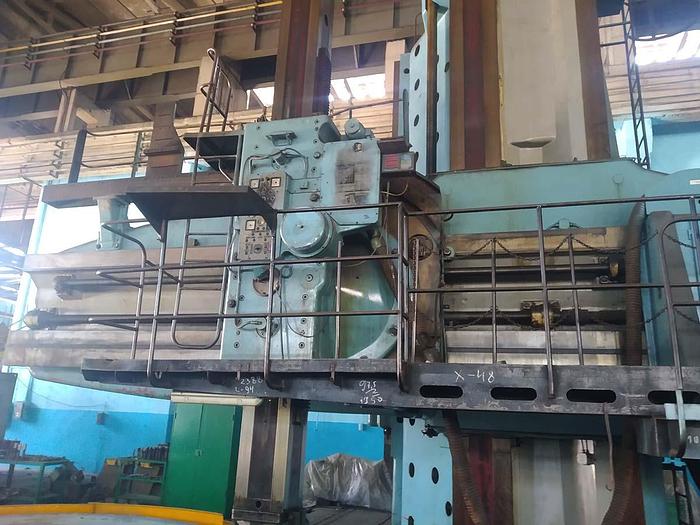

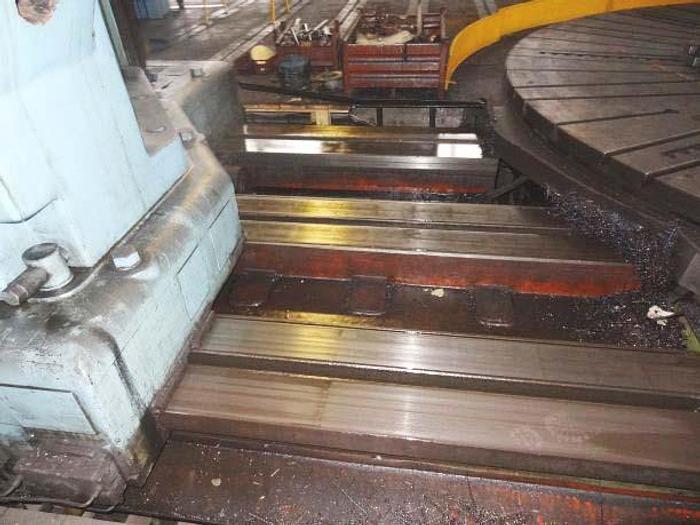

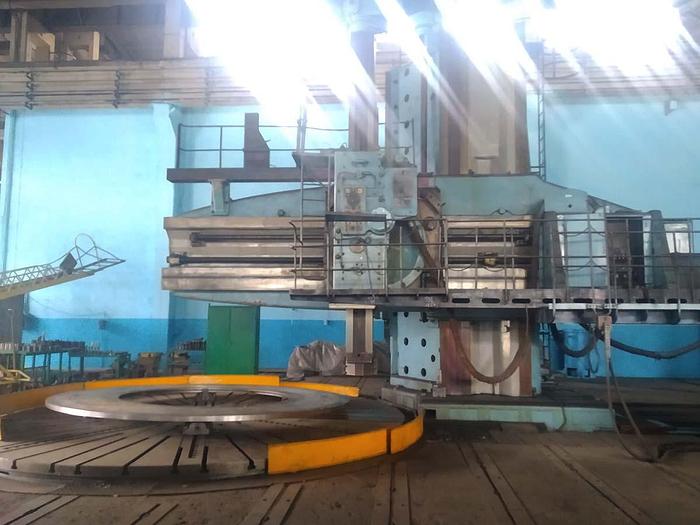

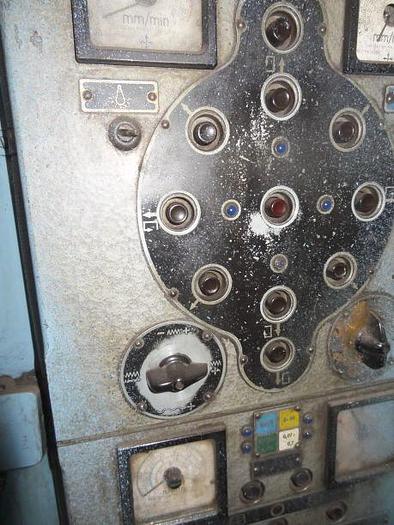

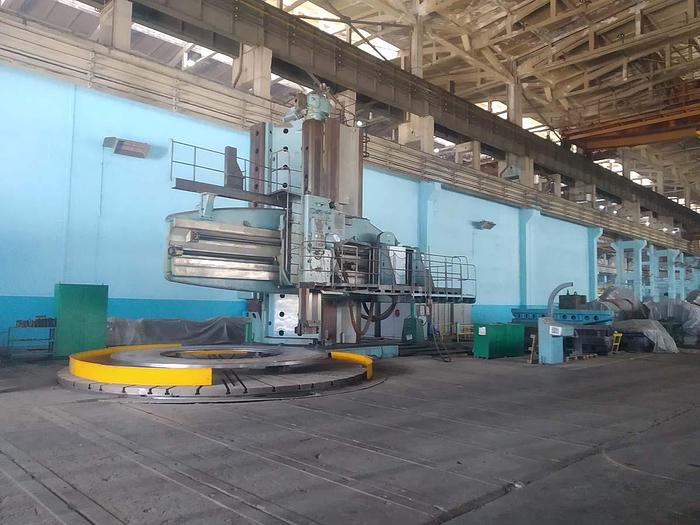

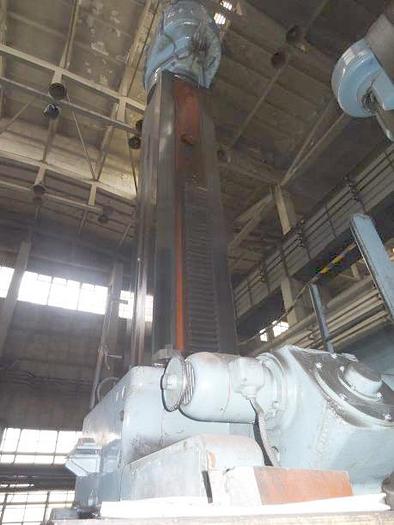

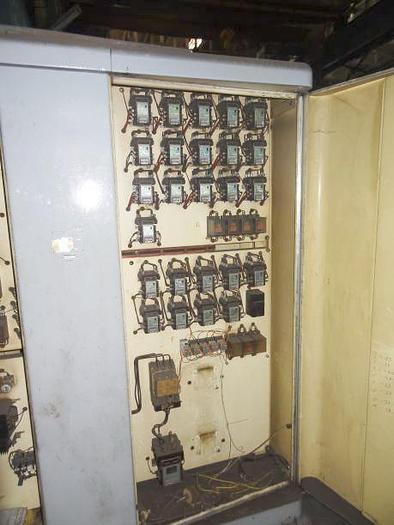

Lathe Vertical Turning Blansko

Dro optima - electronic MS3000N

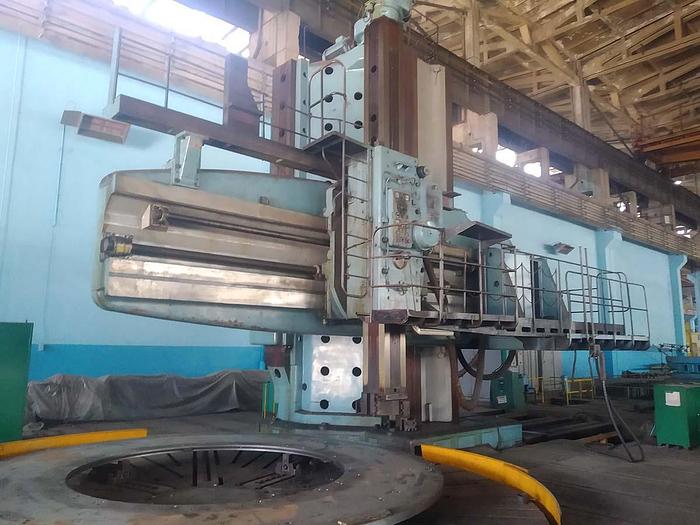

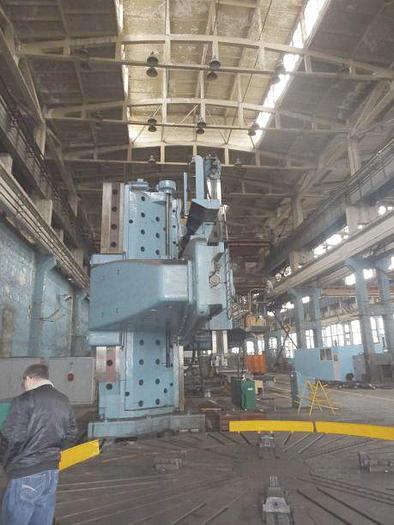

Vertical Turning Lathe Single Column

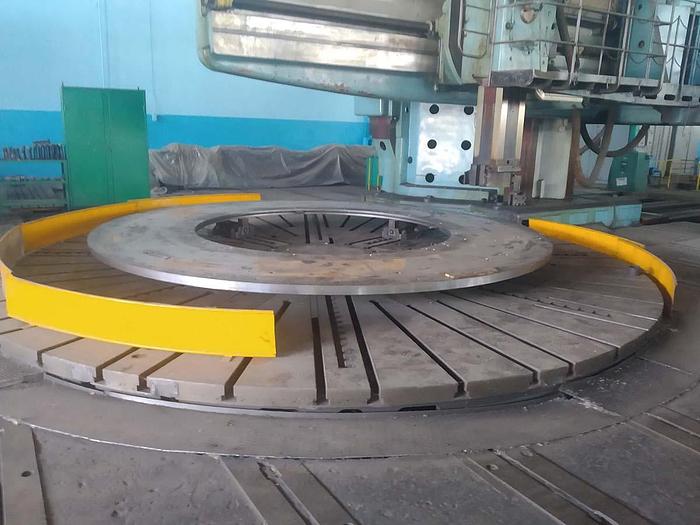

Table diameter : 6300 mm,

Diameter of lower flange : 6370 mm,

Max. swing with moved out arm : 11200 mm,

Max. diameter of work piece clamped on floor grid (for internal processing) : 14700 mm,

Max. work piece weight : 100 tons,

Max. work piece weight clamped on arms : 75 tons,

Max. rotating moment on table : 5000 kgcm,

Power of main motor : 120 kW,

Live spindle : 88.9 mm,

(motor adjustment range 1:10, at a constant capacity 1:2,7)

RPMs:

for turning:

-1 grade 0.5-5

-2 grade 2-20

for milling:

-1 grade 0.00324-0.158

-2 grade0.000812-0.0396

Turning diameter : 0-11500 mm,

Milling and driling : 0-11200 mm,

Ram travel : 3750 mm,

Mechanical re moving of column : 4320 mm,

Max. distance between table and tool holder : 4100 mm,

Carriage stroke (max moving out for copying) : 2330 mm,

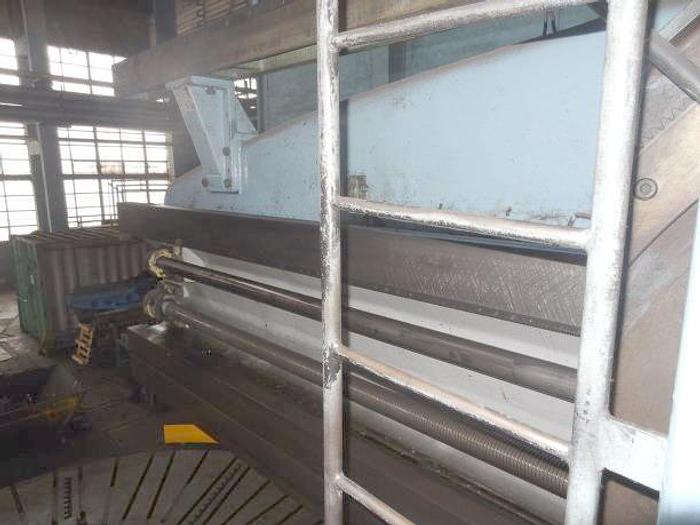

Carriage stroke (without copying) : 2700 mm,

Vertical travel of cross beam : 2700 mm,

Carriage profile : 400 x 400 mm,

The greatest distance between the lathe chuck and the clamp on height : 6100 mm,

Height of the workpiece : 5750 mm,

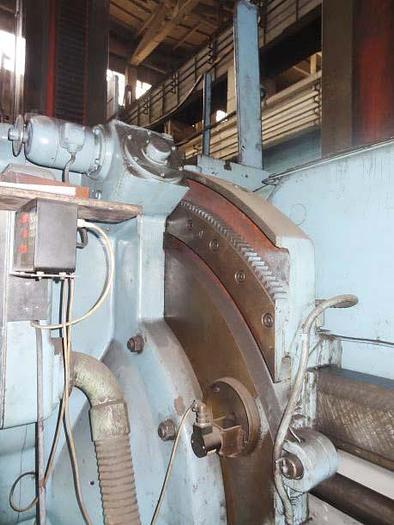

Max. inclination of carriage (mechanical):+/- 30 degree

Feeding:

-1 grade : 0.158-7.74 mm/min,

-2 grade : 3.17-155 mm/min,

Accelerated vertical and horizontal travel : 1200 mm/min,

Lifting speed of cross beam : 225 mm/min

Column speed : 850 mm/min,

Max. cutting force : 15000 kg,

Whole for cutting head in carriage : 220 mm,

Max. diameter of mill : 400 mm,

Machine weight : 320 tons.

Manual is available.
