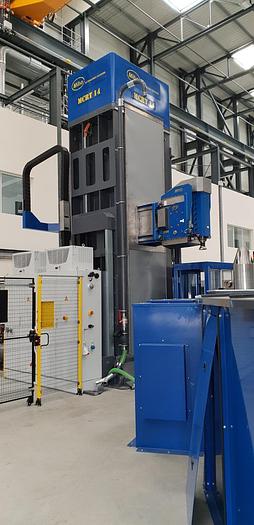

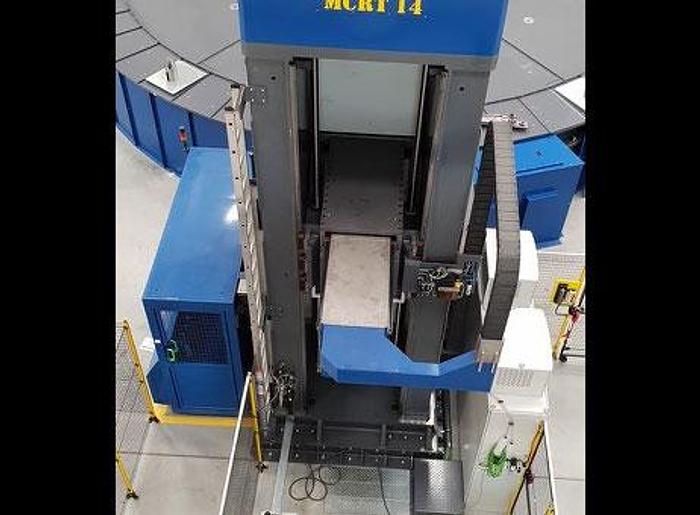

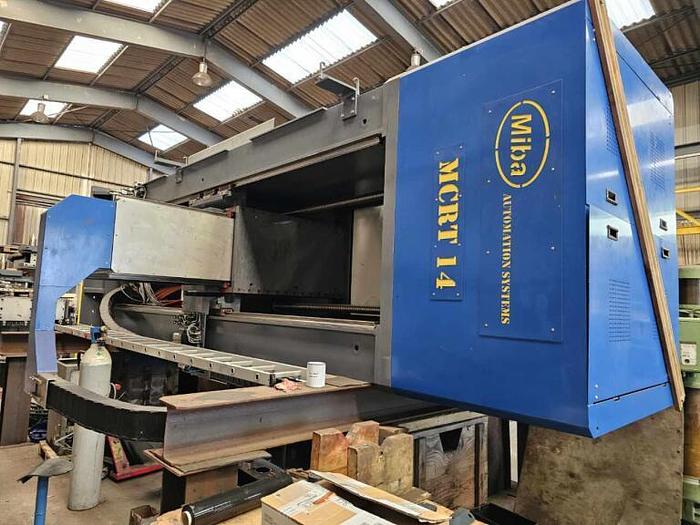

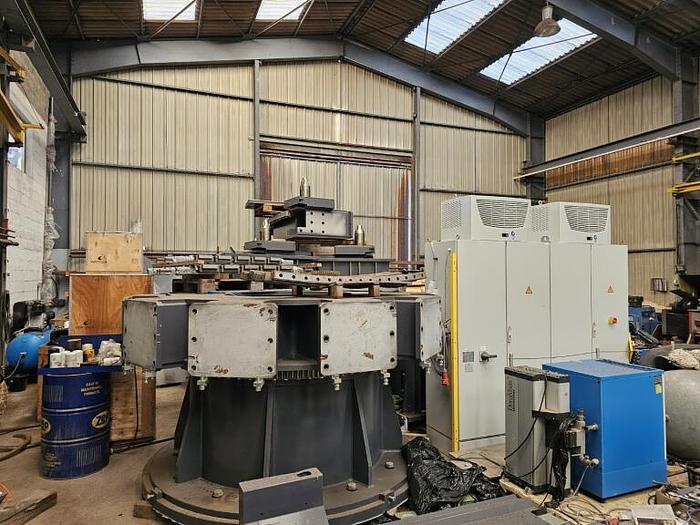

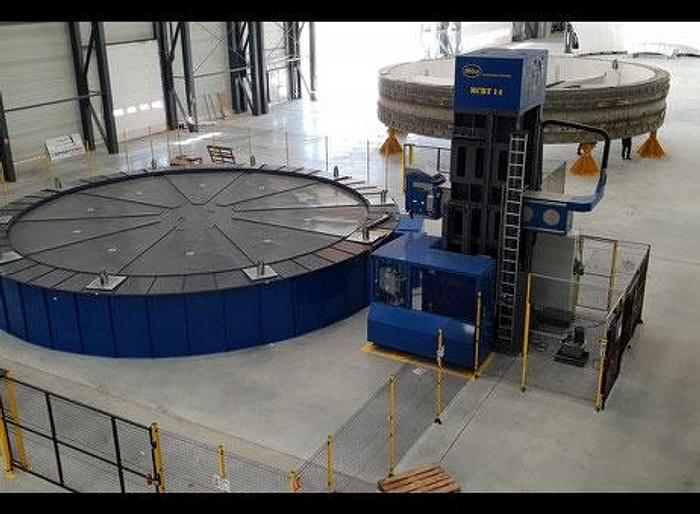

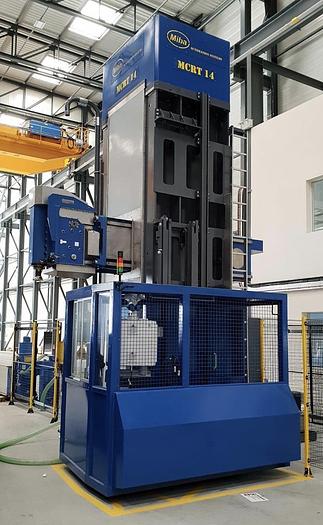

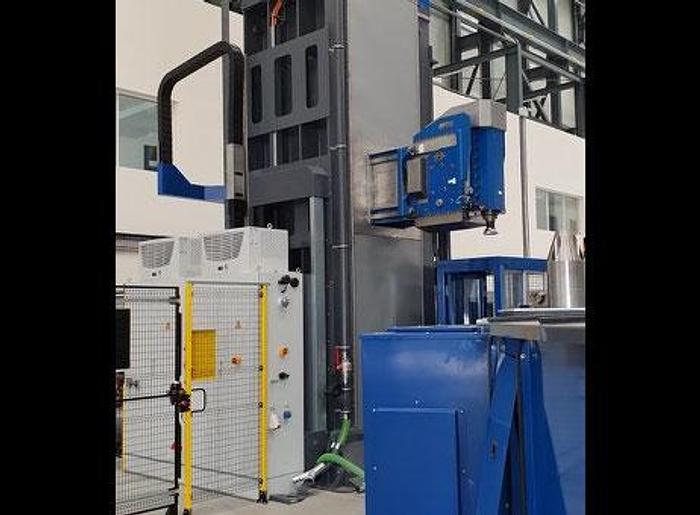

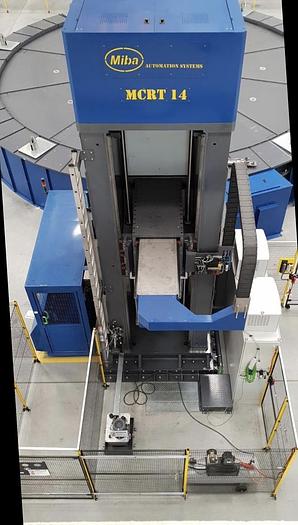

Lathe vertical Turning CNC Miba MCRT 14

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerMiba
ModelMCRT 14
Year2017
ConditionNew
Stock NumberMA2022

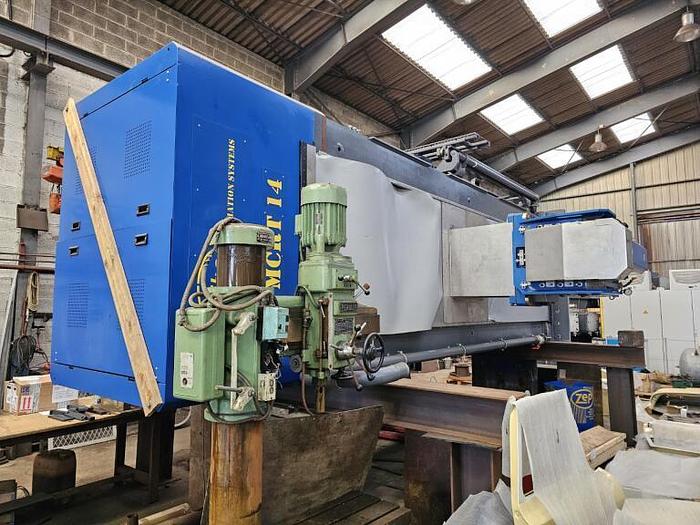

Item conditionNever used, dismantled
Capacity tons0

Description

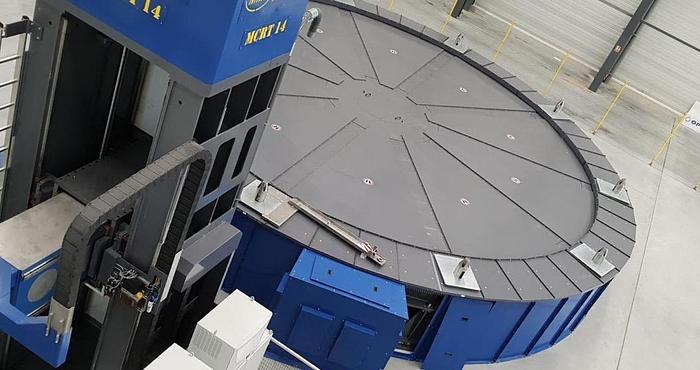

Maximum diameter allowed : 13000 mm,

Minimum diameter allowed : 9500 mm,

Longitudinal stroke [X] : 1500 mm,

Fast longitudinal advance : 5000 mm / min,

Vertical travel of crossbar on post [Z] : 4000 mm,

Infinitely variable vertical feed : 5000 mm / min,

C-axis : 360 ° (indefinitely),

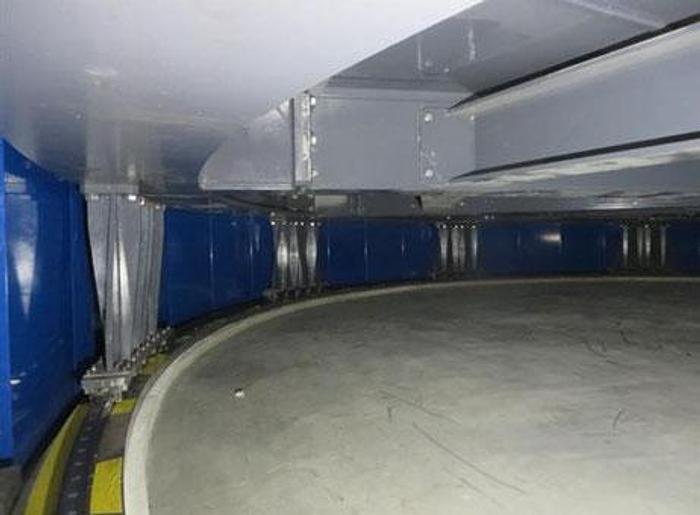

Platter speed : 2 rpm,

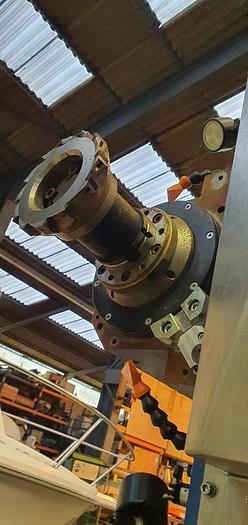

Tilt of the spindle [U] : 180 °,

3000 rpm spindle speed

Spindle power : 29.4 KW,

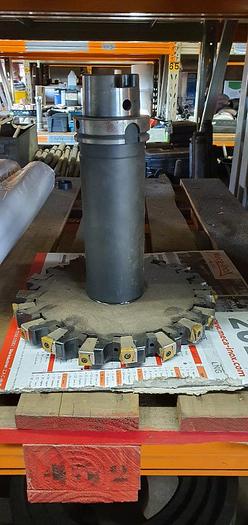

Spindle cone HSK : 100C,

Total power : 200 hp,

Dimensions : 13000 x 4500 mm,

Weight : 101 tons,

Central lubrication on all axes,

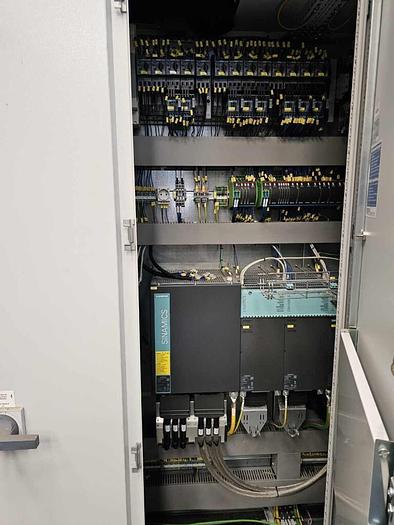

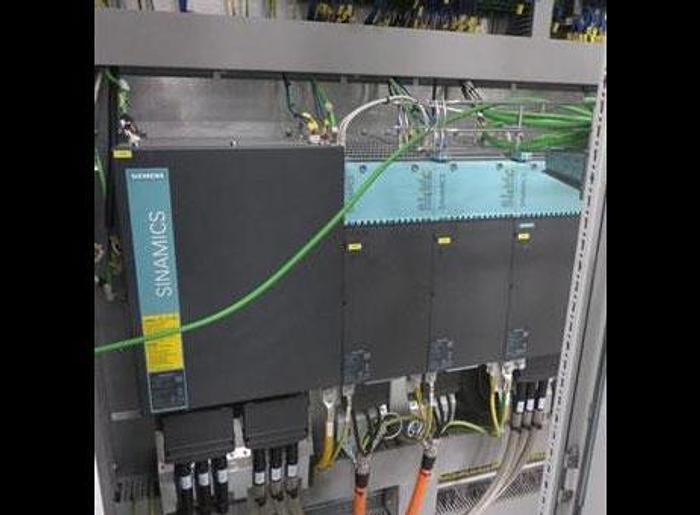

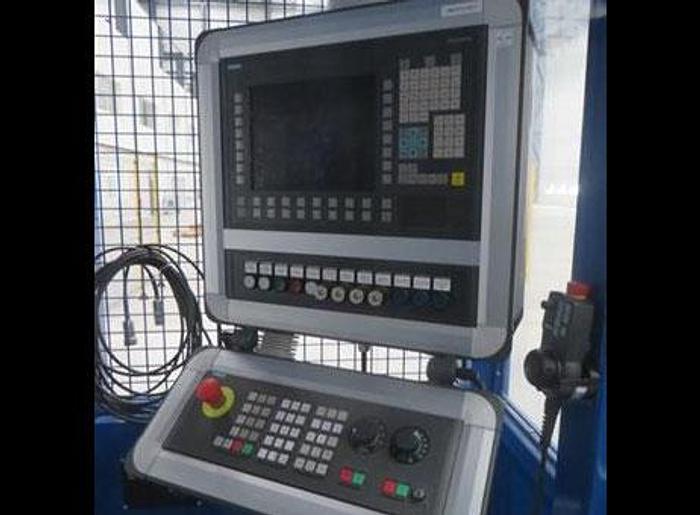

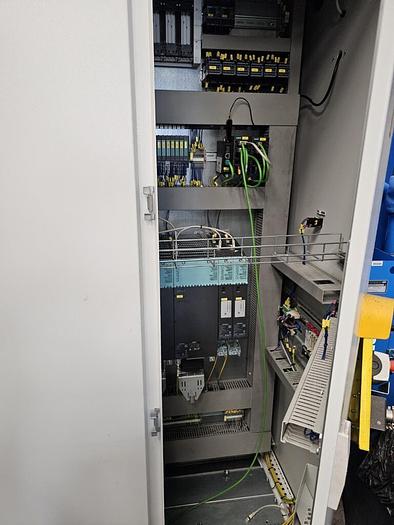

Siemens CNC.
