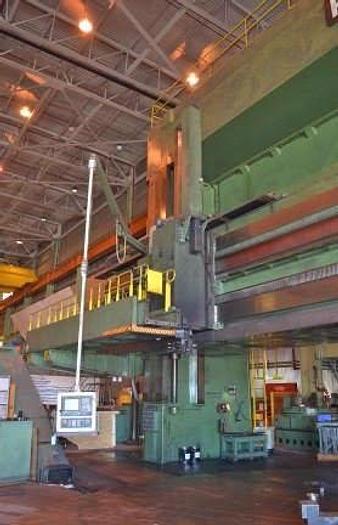

Lathe Vertical Turning CNC Froriep

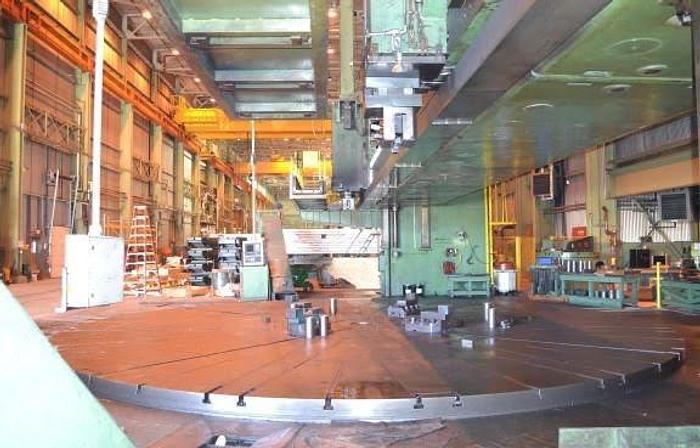

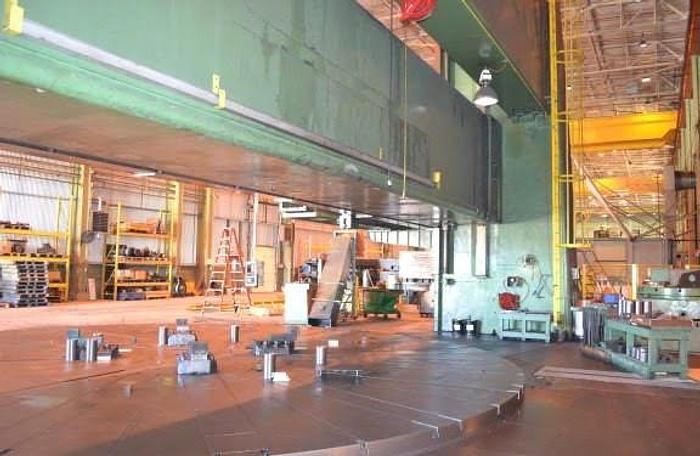

Table Diameter : 8000 mm,

Max. Diameter (Machining) : 15000 mm,

Max. height under crossbeam : 4200 mm,

Manual Tool Change

Vertical Stroke X Axis : 2600 mm,

Vertical Stroke Z Axis : 2200 mm,

Main motor power : 156 Kw,

Max loading on table : 300 tons,

RAM number : 2,

Retrofit 05/2008,

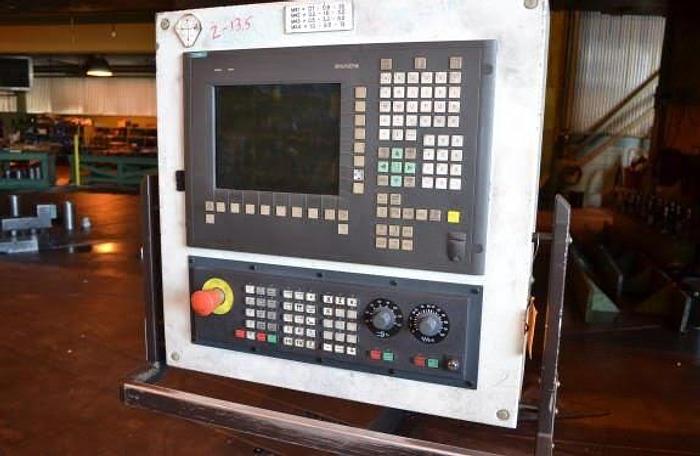

CNC NUM-1060.
