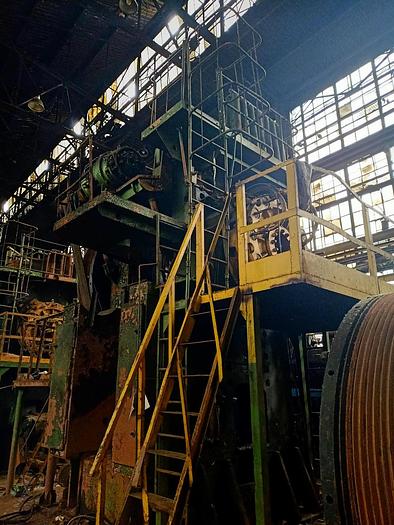

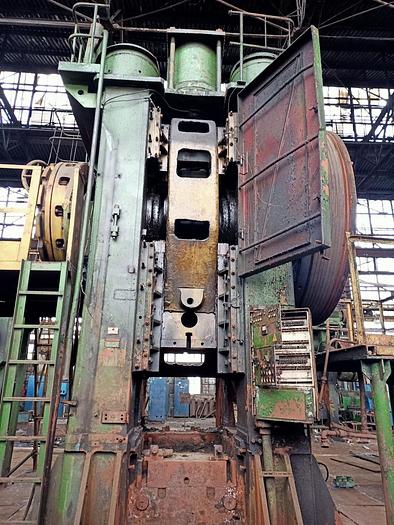

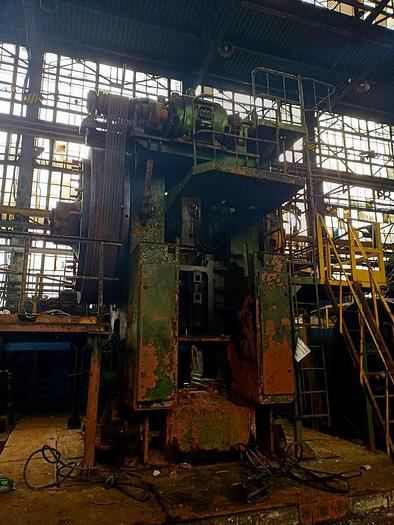

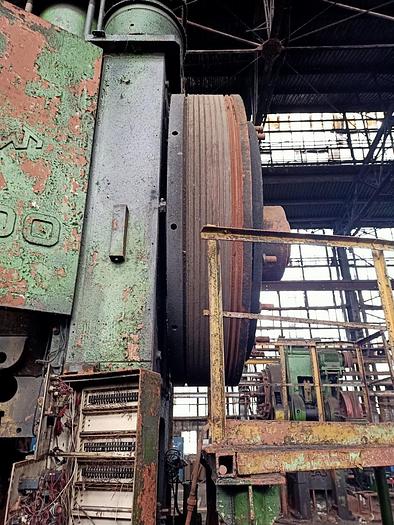

Press Hot Forging TMP Voronezh Russia KB8542

Capacity : 1600 tons,

Slide stoke : 300 mm,

Number of slide continuous stroke per minute : 85,

Minimum distance between bed and slide when in down position : 660 mm,

Size of adjustment of distance between a table and slider : 10 mm,

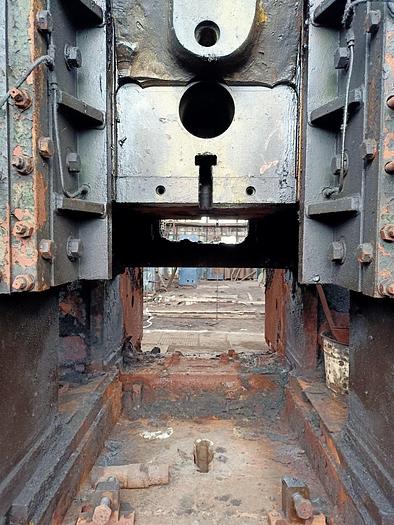

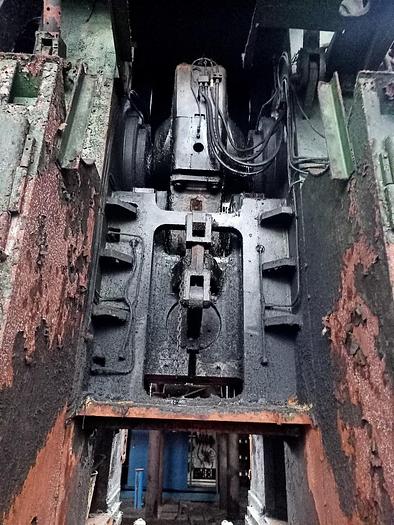

Slide dimensions :-

Left to right : 860 mm,

front to back : 910 mm,

Height above bed level : 450 mm,

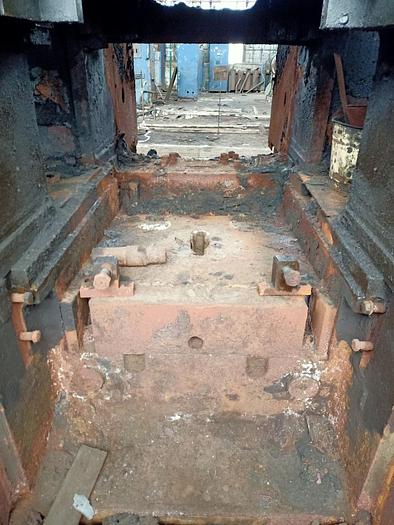

Bed dimensions :-

left to right : 940 mm,

front to back : 1200 mm,

Course of the top ejector : 50 mm,

Force of a top ejector : 63 kN,

Course of the bottom ejector : 50 mm,

Force of a bottom ejector : 100 kN,

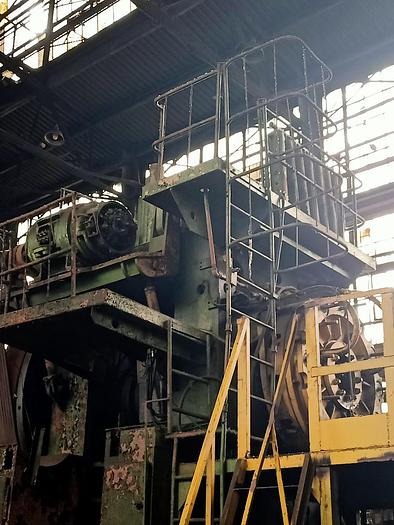

Main electric motor power : 90 kW,

Press overall dimensions

Length : 4850 mm,

Width : 3515 mm,

Height : 5570 mm,

Weight of machine : 120 tons.
